© 1995 Wagner Spray Tech 19 All rights reserved.
1
2
3
4
5
6
8
7
11
10
9
12

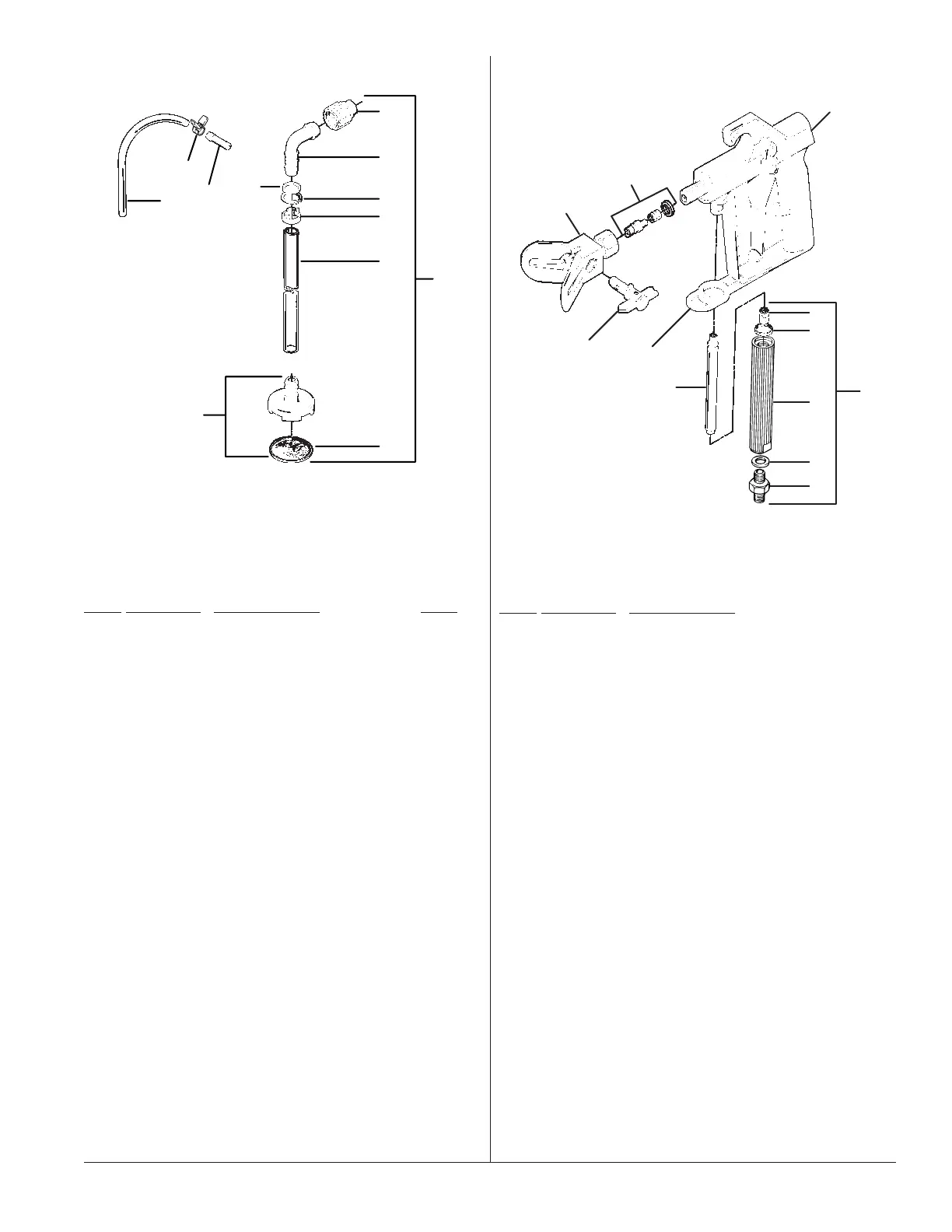

Parts Diagram – Suction Set Assembly
0270174
ITEM PART NO. DESCRIPTION QTY.
1 0270133 Suction tube assembly.................... 1
(Includes Items 2 through 10)
2 0090622 Nut, suction ..................................... 1
3 0281314 Elbow, adapter, 3/4" x 1"................. 1
4 0088931 Ring, snap....................................... 1
5 0089882 Clamp.............................................. 1
6 0270360 Hose, suction .................................. 1
7 0270162 Filter housing and filter.................... 1
8 0270369 Filter ................................................ 1
9 0090621 Washer............................................ 1
10 0088715 Fitting, return hose .......................... 1
11 0327226 Clamp.............................................. 1
12 0270363 Tubing, return.................................. 1
3
4
5
6
7
2
8
1
11
12
9
10
Parts Diagram - G-06 Spray Gun
ITEM PART NO. DESCRIPTION
1 0293004 G-06 gun assembly
(includes items 2 through 7)
2 0089731 Filter assembly
(includes items 3,4,5,6)
3 0043590 Spring
4 0089694 Seal, nylon
5 0089692 Housing filter
6 0043260 Washer
7 0089693 Fitting
8 0089959 Filter
9 0293303 Guide, hose
10 0154782 Tip, .011 (oil based materials)
0154783 Tip, .013 (oil based , latex paints and
stains)
0154784 Tip, .015 (extra thick materials)
11 0154680 Tip, body
12 0154693 Seal kit
NOTE: Part numbers may change without notice due
to improvements and modifications.
