5-F and 5-R Shims ship pre-installed to the Base Plates,
but can be substituted with the Blue 6-F and 6-R Shims.
Extra Shims may be required between 5-F/6-F Shims
and the sole of the shoe.
The Base Plate/Shim Combo may not create a “perfect” fit to the bottom of the shoe,
but for best results it is important to use the Shims that provide the “best” fit.

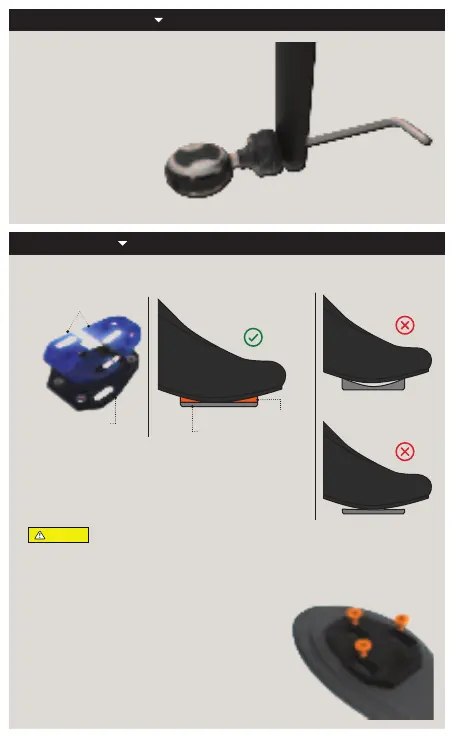

CLEAT INSTALLATION
1. CHOOSE THE SHIMS FOR THE BASE PLATE THAT BEST FIT THE SOLE OF THE SHOE
PEDAL INSTALLATION continued
Shims
Base Plate
Shims
Base Plate
2. SCREW THE BASE PLATE TO THE SHOE USING
THE BASE PLATE SCREWS
Set the desired fore-a position then tighten
the Base Plate Screws.
Recommended tightening torque: 4 Nm.
CAUTION
3. THREAD THE PEDALS ONTO THE
CORRECT CRANK ARM
Use an 8mm Allen Wrench to
ensure a snug fit.
Recommended tightening
torque: 30 Nm.
To Next Page
