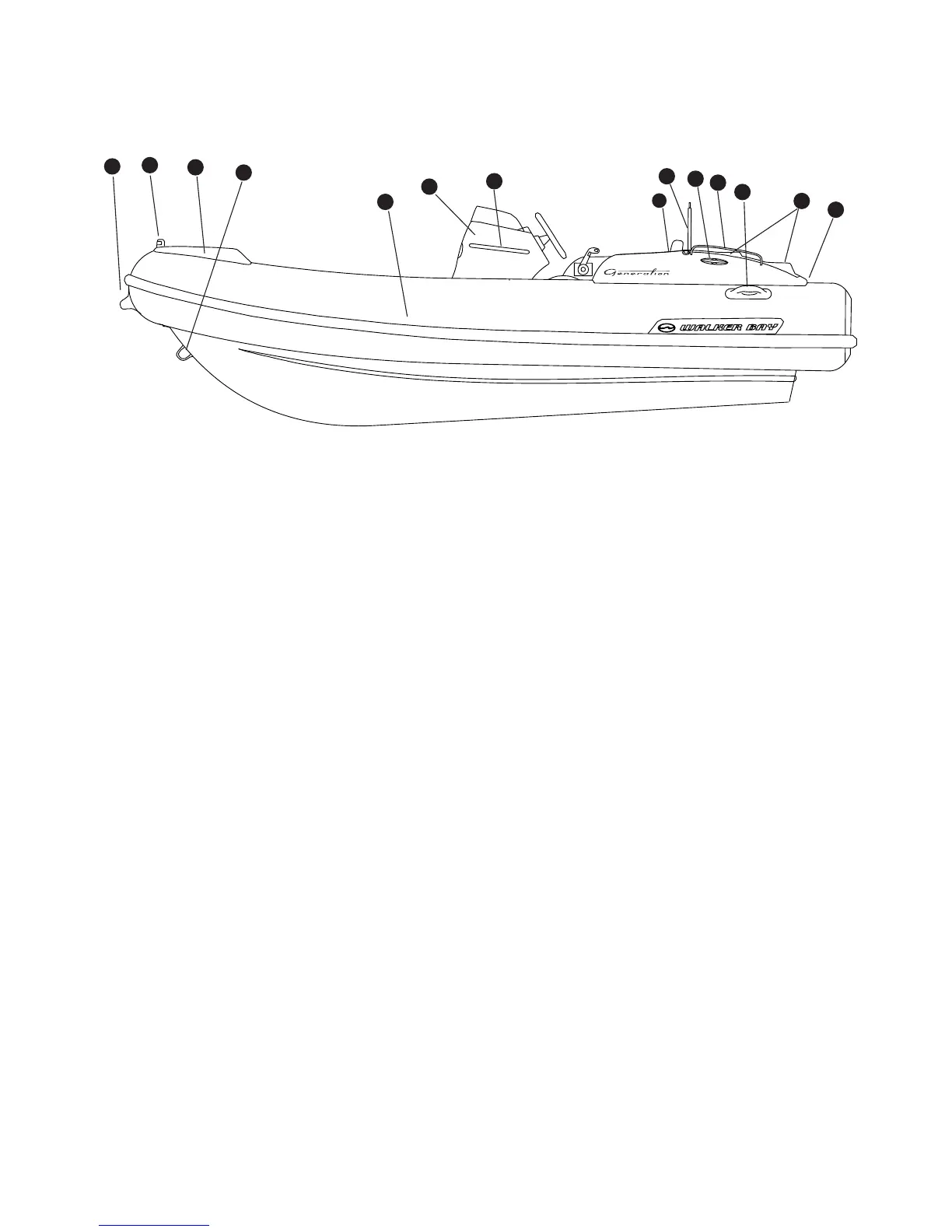

A - Fuel Tank Cap
B - Deck Floor
C - Transom
D - Rub Rail
F - Motor Mount
G - Center Console
H - Bow Step with teak
I - Hauling Handle
J - Davit Lifting Points (3)
K - Capacity Label
L - Hull ID (CIN) Number
M - Stern Storage Compartment
N - Valves (3-5 depending on model)
O - Lifting and Re-boarding Handles (not for tying or davits) (4)
P - Navigation Lights (red and green)
Q - Navigation Light Mount (for 360
o
white light)
R - Seats, Cushions and Under-seat Storage Compartments (3)
S - Stainless Steel Hand Rails (5)
T - Bow Eye for Towing
U - Stern Steps with teak (2)
V - Stern Boarding Ladder (450 Version Only)
W - Pop-up Cleats (4)
X - Retractable Ski Post (450 Version Only)
Z - Permanent and Retractable Cup Holders (2)
*Replace capacity and warning labels if they become damaged, faded or illegible.
For reordering and replacement of labels contact Walker Bay
®
Customer Service.
C
D
G
H
I
J
O
P
S
T
U
W
X
S
YOUR BOAT - FEATURES AND DECK PLANS
MATERIALS
Walker Bay
®
uses materials and fabric from the worlds’s most respected manufacturers. We take extra care in our
construction to create a line of boats you can depend on.
ORCA CSM
®
- Walker Bay uses the finest Hypalon® material available. Four layers of calendared sheets offer
guaranteed air-tightness and optimal adhesion of rubbers. This combination of materials provides improved resistance
against weathering, chemicals and abrasions. The tubes are bonded using a three-layer gluing process with all seams
internally and externally butted for maximum reliability.
PREMIUM FIBERGLASS - Walker Bay
®
uses top quality FRP (Fiber Reinforced Polymer) to build a hull that is both
stiff and strong in tension and compression, which is important to the performance of the boat. A fine glossy gelcoat
not only creates a glossy, high-lustre, ultra-smooth finish, but provides maximum durability as well.
(400 & 450 Version Only)
