Walker Edison BR6DDDR - Step 11: Assemble Drawer Components; Step 12: Assemble Drawer Components

P.10
Step 11
Step 12
D
D
D
D
D
D
D
D
H
2x
H
E
E
2x
2x
D
Ø3,5*30mm
16
E
04
M4x22mm
H
04

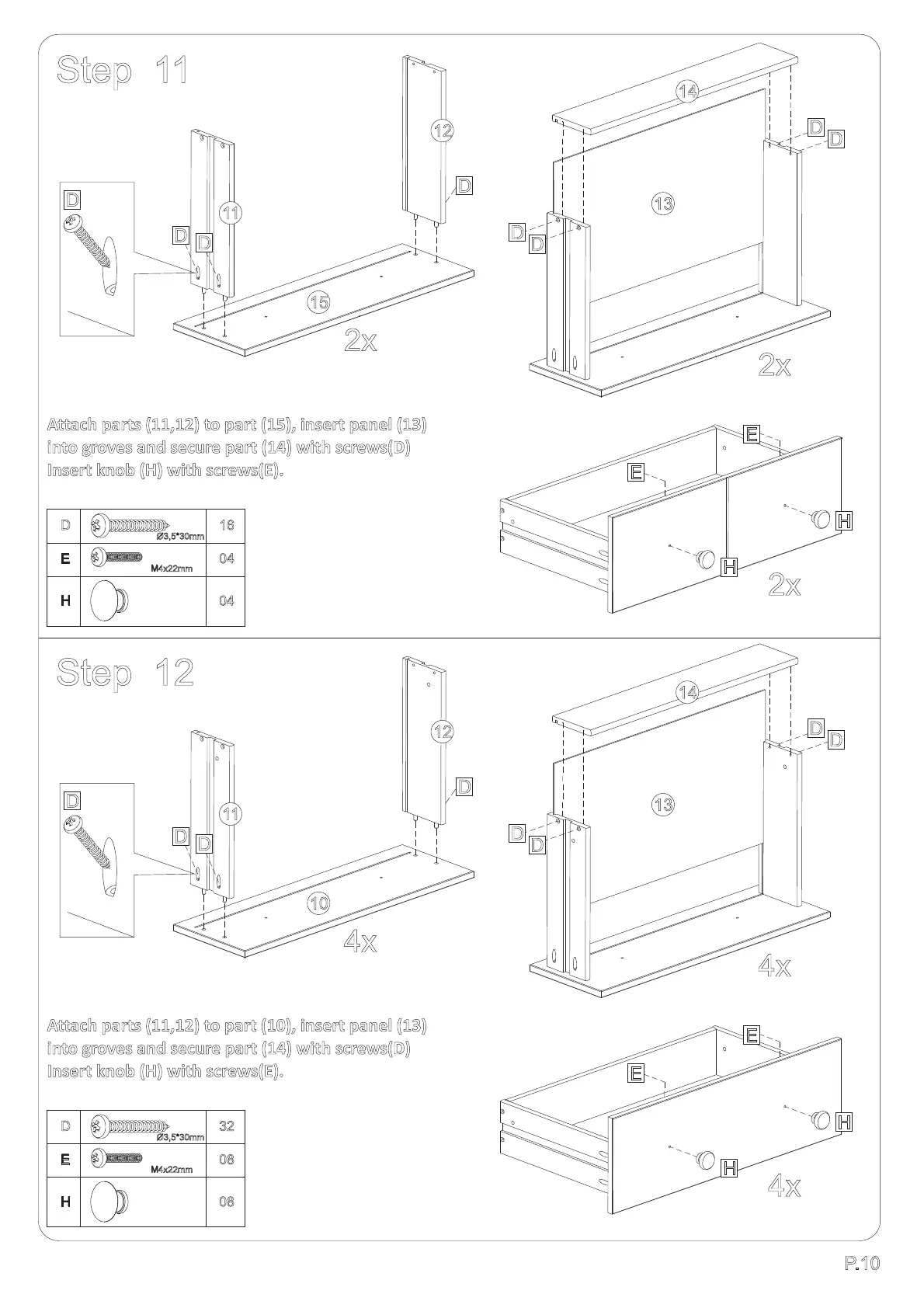

Attach parts (11,12) to part (15), insert panel (13)
into groves and secure part (14) with screws(D)
Insert knob (H) with screws(E).
15
12
11
13
14
D
D
D
D
D
D
D
D
H
4x
H
E
E
4x
4x
D
Ø3,5*30mm
32
E
08
M4x22mm
H
08
Attach parts (11,12) to part (10), insert panel (13)
into groves and secure part (14) with screws(D)
Insert knob (H) with screws(E).
10
12
11
13
14
