Walker Edison CMAB5C - Page 7

P.7

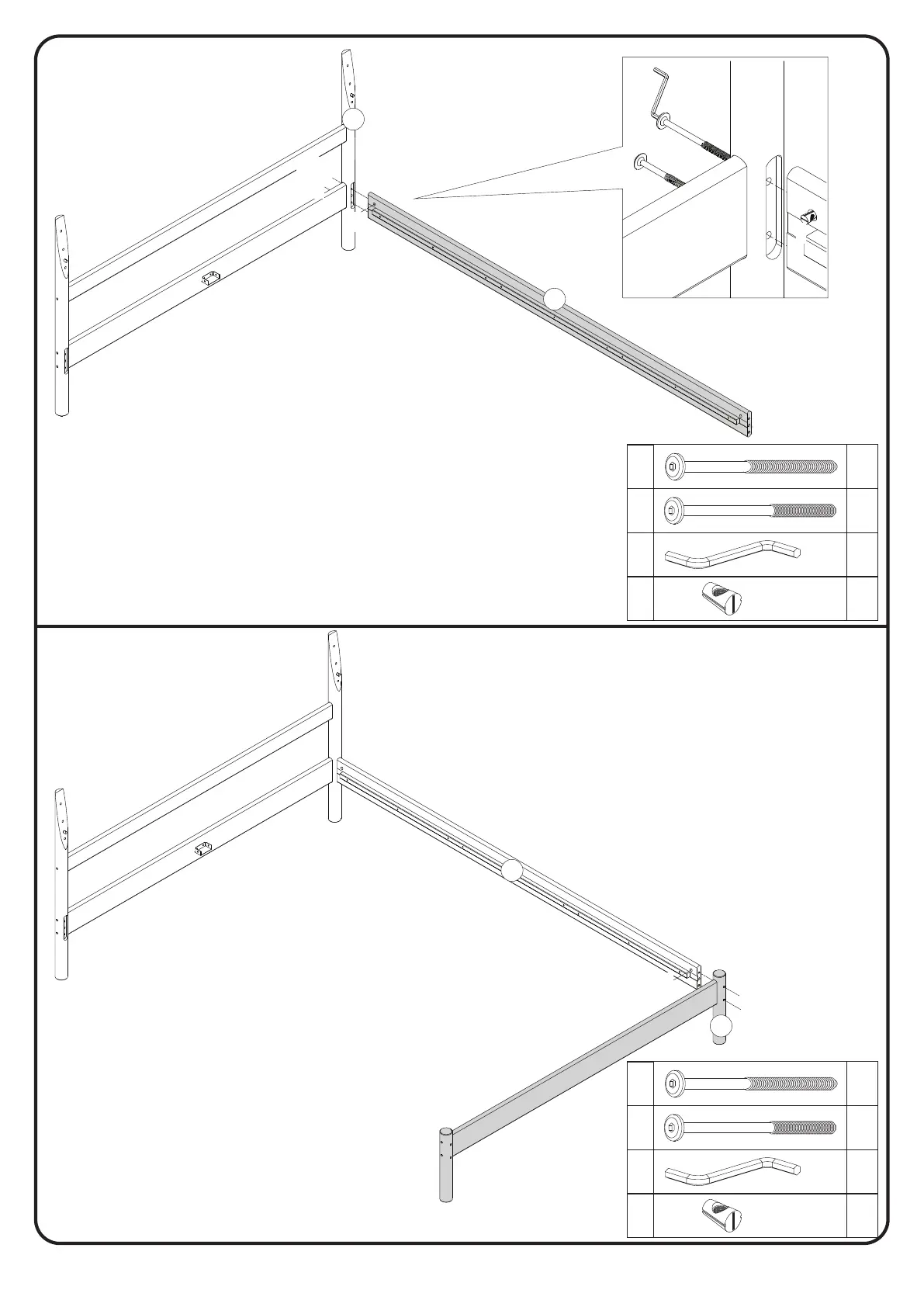

Step 5
Step 6
01
D
01
E
01
C
ø1/4"*90mm
01
B
ø7,0"*80mm
B+D
C+D
E
4
E
C
D
B
Attach part 7 with feet 4, fix with
screw B, C and nut E with hex key D
01
D
01
E
01
C
ø1/4"*90mm
01
B
ø7,0"*80mm
6
7
B+D
C+D
E
Attach part 7 with feet 6, fix with
screw B, C and nut E with hex key D
7
