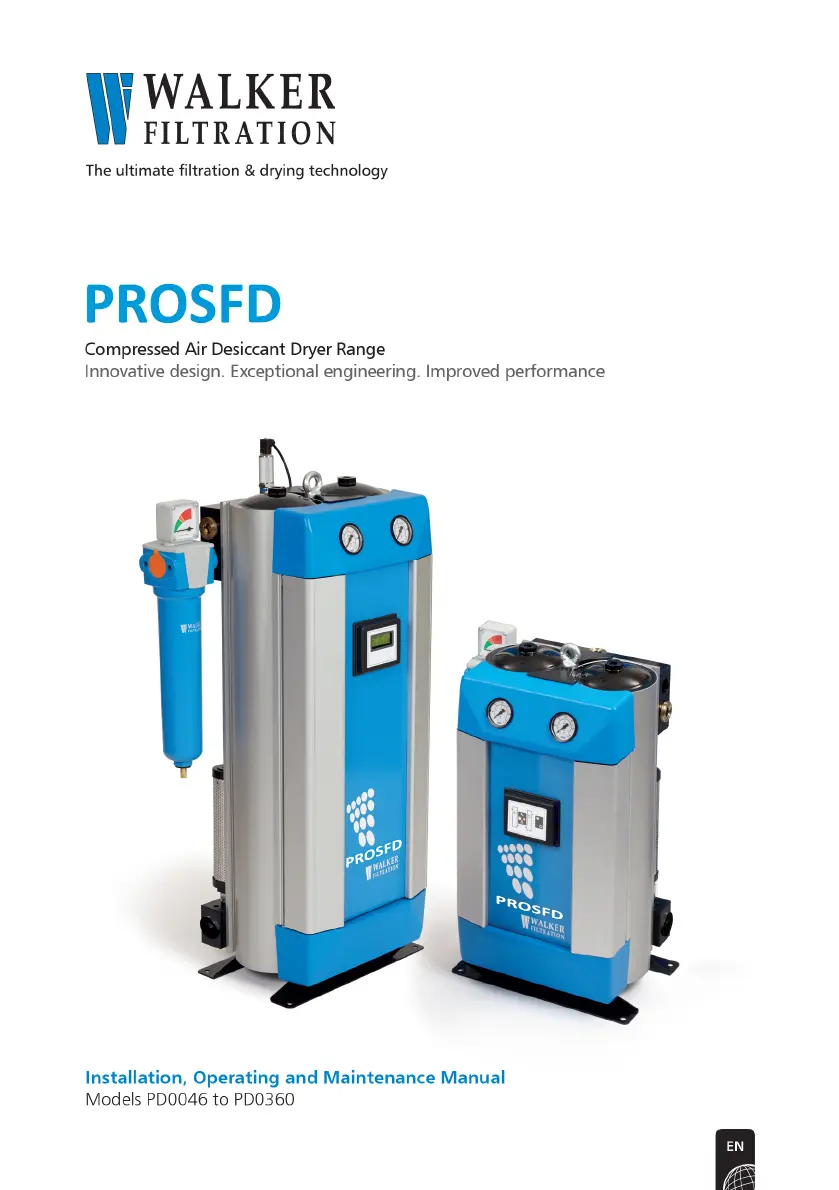

WALKER FILTRATION PROSFD Series - User Manual

WALKER FILTRATION PROSFD Series
58 pages
Save Page as PDF
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
Loading...
PROSFD
PROSFD
PROSFD

Table of Contents

Other manuals for WALKER FILTRATION PROSFD Series

Preview: Technical Manual And Instructions For Use
Technical Manual And Instructions For Use40 pages

Questions and Answers

  • R
    Roger MillerAug 19, 2025
    Why does my WALKER FILTRATION PROSFD have a poor dewpoint?
    • M
      melissa81Aug 19, 2025
      If your WALKER FILTRATION Dryer shows a poor dewpoint, several factors could be responsible. There might be liquid water at the dryer inlet, so you should check the pre-filtration and drains. It's also possible that the flow is exceeding the maximum specified, or that the inlet pressure or temperature are not within specifications, so check these against their specifications. Other potential causes include a blocked or damaged silencer (in which case, replace it), air leaks (tighten joints or fit new seals), or incorrect dryer operation (consult the electrical operation troubleshooting section).
  • D
    David ConnerAug 21, 2025
    What to do if my WALKER FILTRATION PROSFD has no dryer function?
    • V
      veronicalevineAug 21, 2025
      If your WALKER FILTRATION Dryer isn't functioning, the most likely cause is a lack of power supply. Check the power supply to ensure it is properly connected and providing power.
  • J
    John OrtegaAug 23, 2025
    How to troubleshoot incorrect dryer operation in a WALKER FILTRATION PROSFD Dryer?
    • D
      Dr. Brandon Vaughan MDAug 23, 2025
      If your WALKER FILTRATION Dryer isn't operating correctly, the issue could stem from several components. The left or right solenoid might be open or short-circuited, requiring replacement of the solenoid valve. Alternatively, there could be a controller fault, necessitating replacement of the controller. Finally, a lower power fault could be the reason, so check the power supply.
  • E
    ernestwellsAug 26, 2025
    What to do if the drain is not operating on my WALKER FILTRATION Dryer?
    • R
      Rachel ManningAug 26, 2025
      If the drain on your WALKER FILTRATION Dryer is not operating, it could be due to several reasons. Energy management might be active, so check the installation. A drain solenoid could be open or short circuit, requiring replacement of the solenoid valve. A controller fault could also be the cause, so replace the controller.
  • D
    David SmithAug 30, 2025
    What to do if my WALKER FILTRATION PROSFD has excessive or loud purge, or purge on only one tower?
    • J
      jacquelinehughesAug 30, 2025
      If your WALKER FILTRATION dryer has excessive or loud purge, or purge on only one tower, it could be due to several reasons: * Jammed main control shuttle valve: Clean or replace the shuttles. * Jammed purge exhaust shuttle: Clean or replace the exhaust shuttles. * Faulty solenoid valve: Clean or replace the solenoid valve. * Not utilizing Energy Management feature: Refer to Energy Management instructions (Section 7). * Blocked and/or damaged silencer: Replace the silencer and check desiccant cartridges. * Damaged purge valve(s): Replace the purge valve bodies. * Incorrect purge orifice size: Double check and select the correct size.
  • P
    Pamela DiazSep 2, 2025
    What to do if my WALKER FILTRATION PROSFD Dryer does not enter Energy Management when switching device is activated and/or Dryer does not enter Energy Management when EM contacts are opened?
    • C
      Crystal PayneSep 2, 2025
      If your WALKER FILTRATION Dryer fails to enter Energy Management, the issue could stem from: * Shorted or incorrect device wiring: Remove external wiring from the dryer’s EM contacts: * On LED controllers, dryer should enter EM mode. * On DMC controllers, place jumper between pins 1 and 2 of EM male connector. Dryer should enter EM mode. * If dryer enters EM mode, correct external wiring problem * If dryer does not enter EM mode, replace controller * Faulty switching device: Consult device manufacturer. * Faulty controller output: Replace the controller.
  • I
    isabellayorkSep 4, 2025
    What to do if my WALKER FILTRATION Dryer has no function?
    • S
      Steven SchwartzSep 4, 2025
      If your WALKER FILTRATION dryer has no function, check the following: * No power supply: Check the power supply. * Power connected to wrong controller input: Check connections with specifications listed in Section 5. * Faulty controller: Replace the controller.
  • R
    rachaelpetersonSep 6, 2025
    What to do if my WALKER FILTRATION PROSFD Dryer does not activate external alarm when display panel indicates alarm condition?
    • V
      Victor HensleySep 6, 2025
      If your WALKER FILTRATION Dryer doesn't activate the external alarm when the display panel indicates an alarm, consider these potential causes: * Shorted or incorrect device wiring: Correct the external wiring. * External power not supplied: Add an external power source per the specifications given in Section 5. * Faulty external indication device: Repair or replace the device. * Faulty controller: Replace the controller.
  • B
    batesmelanieSep 8, 2025
    Why won't my WALKER FILTRATION PROSFD switch towers?
    • E
      Elizabeth KellySep 8, 2025
      If your WALKER FILTRATION Dryer won't switch towers, it could be due to: * Jammed shuttle valves: Clean or replace the shuttles. * Faulted electrical components: See the electrical operation troubleshooting section.
  • I
    Isaac HillSep 12, 2025
    Why won't my WALKER FILTRATION PROSFD depressurise towers?
    • D
      Devin WallaceSep 12, 2025
      If your WALKER FILTRATION Dryer won't depressurize towers, the issue might be: * Jammed purge exhaust shuttle: Clean or replace the exhaust shuttles and solenoid valves. * Blocked and/or damaged silencer: Replace the silencer.

Summary

Safety

Safety Guidelines

General guidelines for safe operation and maintenance of the dryer.

Warning Symbols

Technical Data

Environmental and Rated Conditions

Specifies operating conditions, limitations, and performance under standard conditions.

Operation Limitations

Mechanical Installation

Typical Installation Overview

Illustrates a standard installation diagram and key considerations.

Installation Location and Environment

Purge Orifice Identification and Assembly

Electrical Installation

Controller Power Supply & Cable Specs

Power requirements and recommended cable specifications for controllers.

LED Controller Specifications

Detailed electrical specifications and protection class for the LED controller.

DMC Controller Specifications

Detailed electrical specifications and protection class for the DMC controller.

DIN Connector Wiring

Operation

Dryer Function and Description

How the dryer works and descriptions of LED/DMC controller operations.

Start-up and Shut-down Procedures

Step-by-step instructions for safely starting and shutting down the dryer.

Operational Stages Overview

Energy Management

Overview and Strategy Development

Purpose of EM and how to develop a purge control strategy.

Purge Control Methods

Maintenance

Maintenance Information and Intervals

General maintenance procedures and recommended service intervals.

Troubleshooting

General and Electrical Issues

Common problems, causes, and actions for general and electrical faults.

Energy Management and Dewpoint Control Issues

LED Display Status Identification

Warranty

Warranties and Liabilities

Exclusions and conditions for product warranty claims.

Declaration of Conformity

EU Directives Compliance
