Maintenance Instructions REPLACING/REPAIRING
75
GHS Blower Drive Belt
1. Remove the GHS blower drive belt tension by
depressing the idler pulley on the tightener arm.
Roll the belt off the blower pulley and remove.
Blower Drive
Pulley
Depress Idler Pulley
Down to Relax Belt
Belt Tightener
Idler Pulley
(Disengaged)
Blower
Pulley
GHS Blower
Drive Belt
Belt Tightener
Idler Pulley
(Engaged)

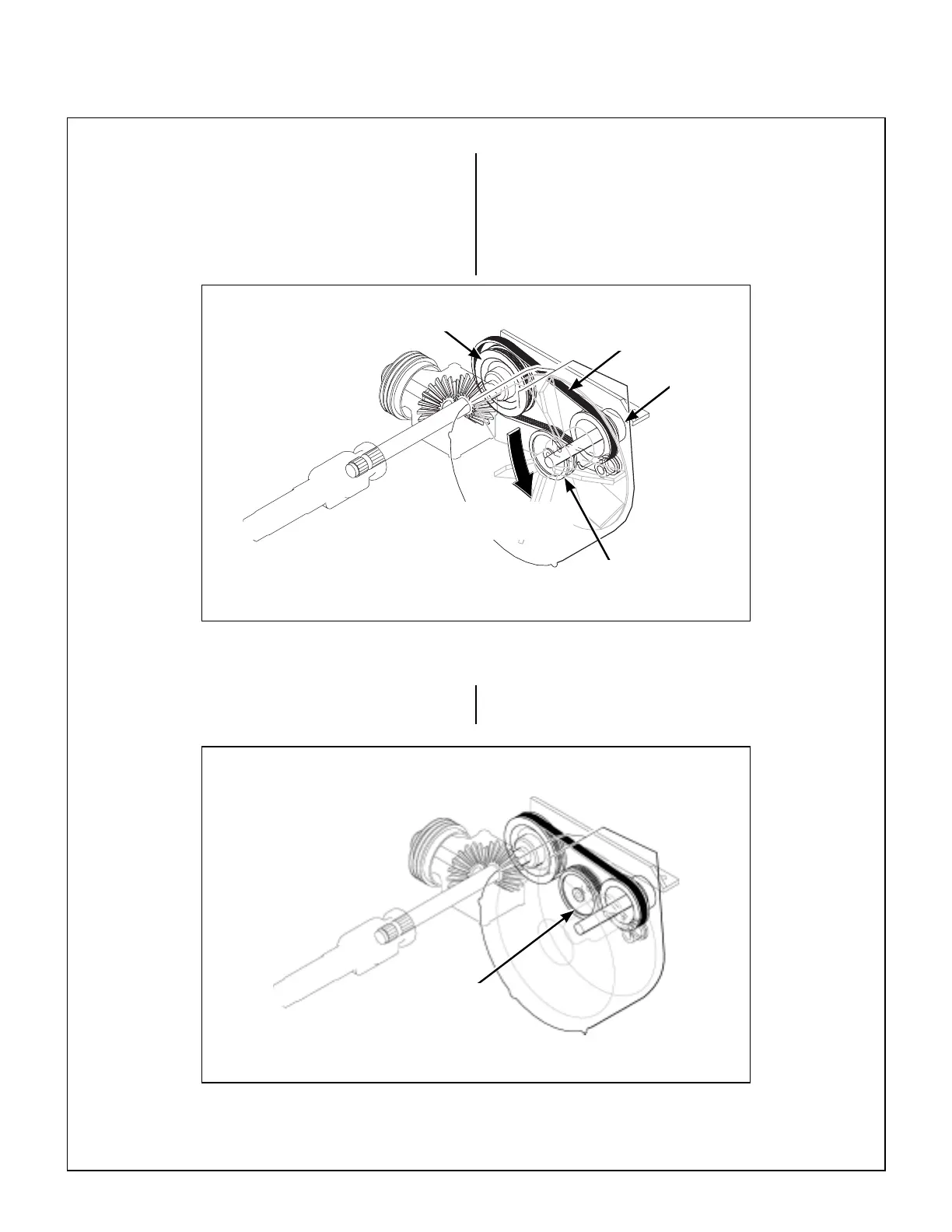

GHS Blower Drive Belt Assembly (Disengaged)
Blower Drive Belt Spring Removal
2. Reverse the procedure to install the GHS blow-
er drive belt.
GHS Blower Drive Belt Assembly (Engaged)
