11
2. In the electrical panel box, locate a space for mounting the meter.
If possible, mount the meter inside the panel enclosure (box).
3. Add a protection for the meter in the electric box.

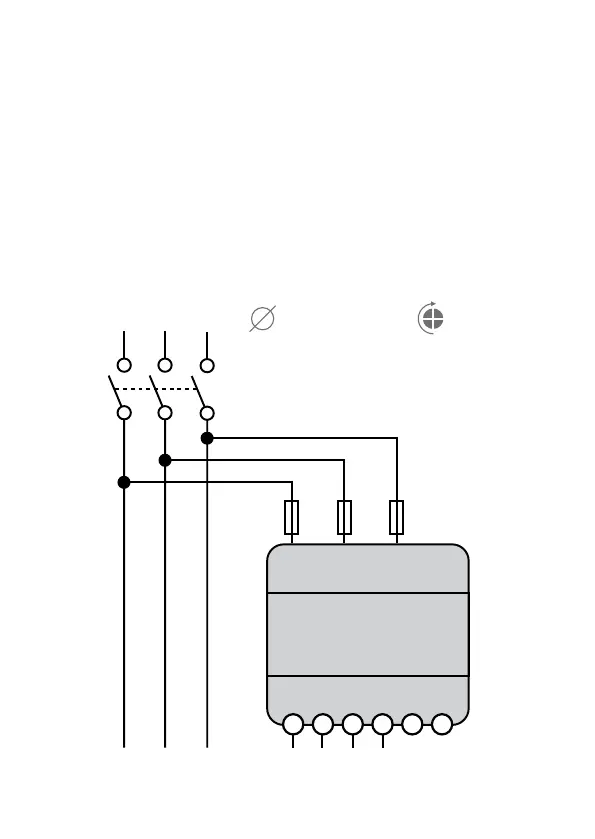

4. Wire the terminals N,1 and 2 from the meter to the neutral
and two hot lines from your electrical panel.
min: 0.2 mm
2
/AWG24
max: 2.5mm
2
/AWG12
≤ 0.45 Nm
N
N
1
L1 L2
2
3
13 14 15 16 17 18
Installation
POWER METER INSTALLATION
