Wallbox Eco-Smart - Wiring the System

8
N
N
1
L1 L2
2
3
13
14 15 16 17
18
Installation
Wiring the System
This meter is only supported on installations with the following requirements:
• 3 wire installation: 2 hot wires + neutral
• Phase to phase voltage: 208-240 V
• Phase to neutral voltage: 120 V

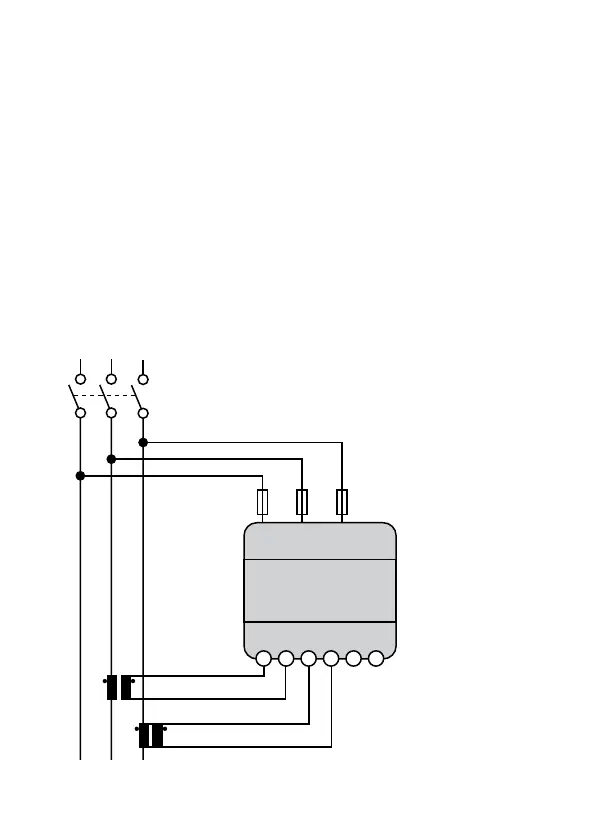

Follow the diagram for wiring the system:
POWER METER INSTALLATION
