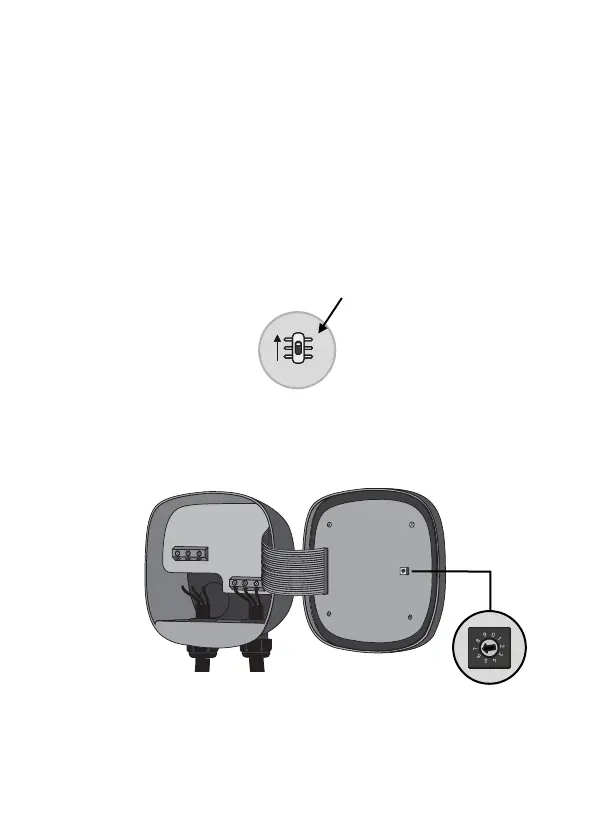

Activate terminating resistance and
configure current selector
1. Set the RS485 switch into position T.
RS48RS4855
TT
NTNT
1
2
3
4
5
6
7
8
9
0
Installation
2. Set the rotary switch between 1 and 7, depending on the
maximum current available on the connected circuit.
POWER METER INSTALLATION
