5. Install battery:
a. Remove cables, clamps and brackets
from their shipping position.
b. Bring a battery to the machine.
c. Lay out components.
d. Position battery in its tray.
e. Install the anchor posts and top brack-
ets. Snug up tightly.
f. Attach cables to battery posts and
tighten to their specied torque.

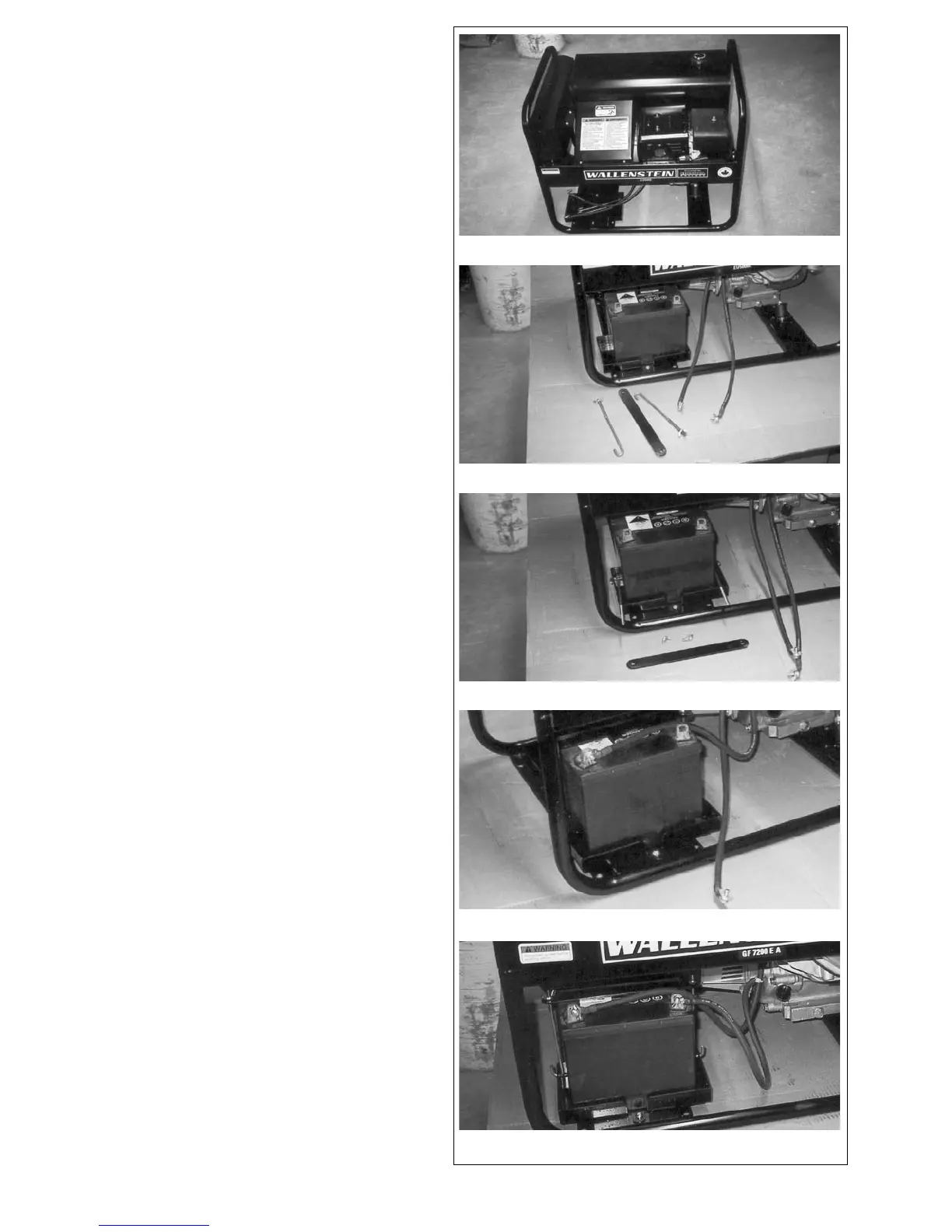

Fig. 3 BATTERY (Typical)
Shipping
Lay-Out
Battery
Posts & Bracket
Cables
