15
5.2 MACHINE COMPONENTS
The Wallenstein EU Portable Generator consists of a 9,
11 or 13 hp Honda engine driving a 12,000 watt electrical
generator. All control and power outlets are
m o un te d o n t h e e n d o f t he f ra m e f o r
convenient access and operation.

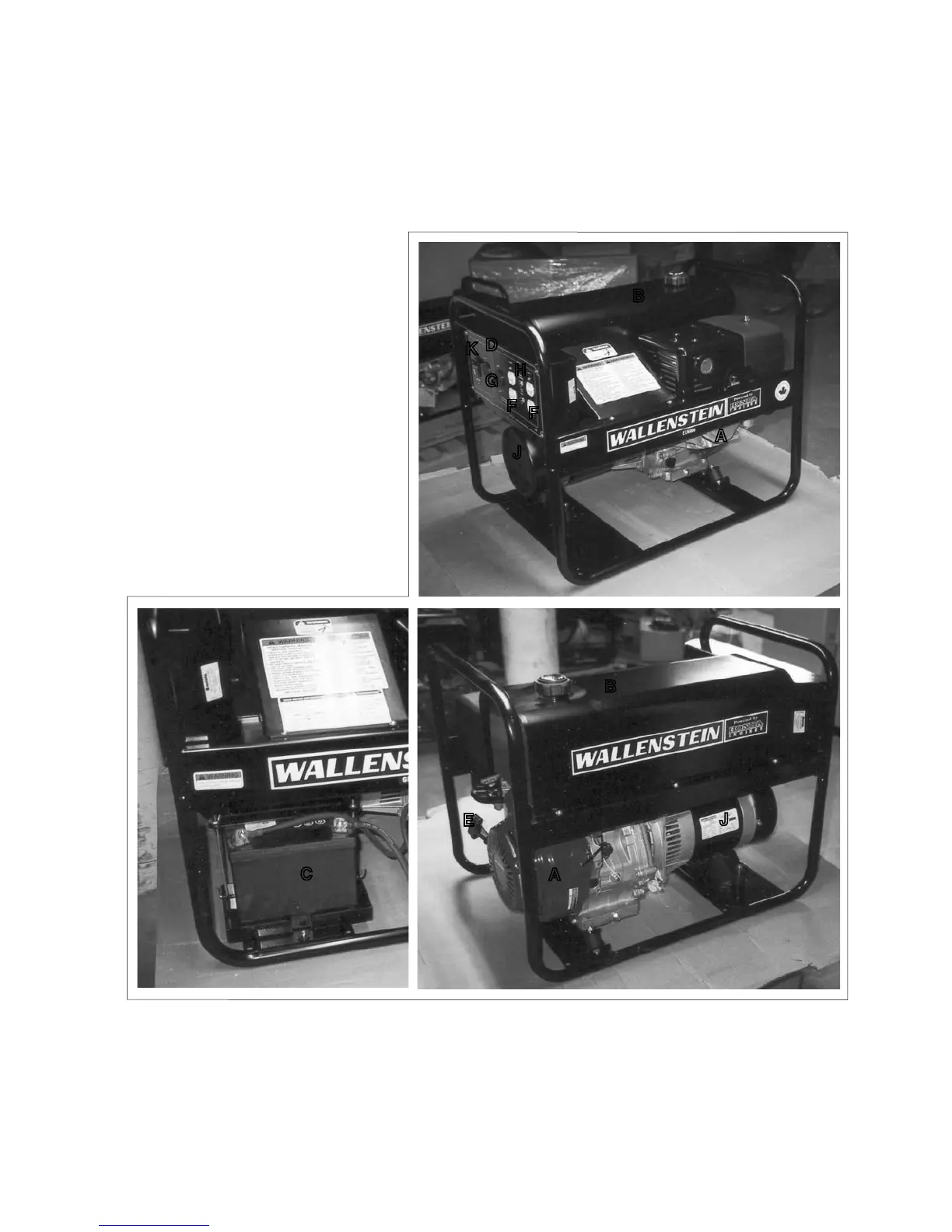

Fig. 4 PRINCIPLE COMPONENTS
A Engine
B Fuel Tank
C Battery
D Control Panel
E Pull Start
F 120 V Outlets
G 240 V Outlets
H Circuit Breaker
J Generator
K Ignition Switch
The unit is designed to provide 120 V or 240 V 60 Hz
power as a back up power supply at a remote location.
Each outlet is designed with a circuit breaker to protect
against overload. The generator is neutral bonded to
the frame. The battery and fuel tank are mounted in
the frame for convenient access.
A
B
C
D
E
F
G
H
A
B
F
J
J
K
