18

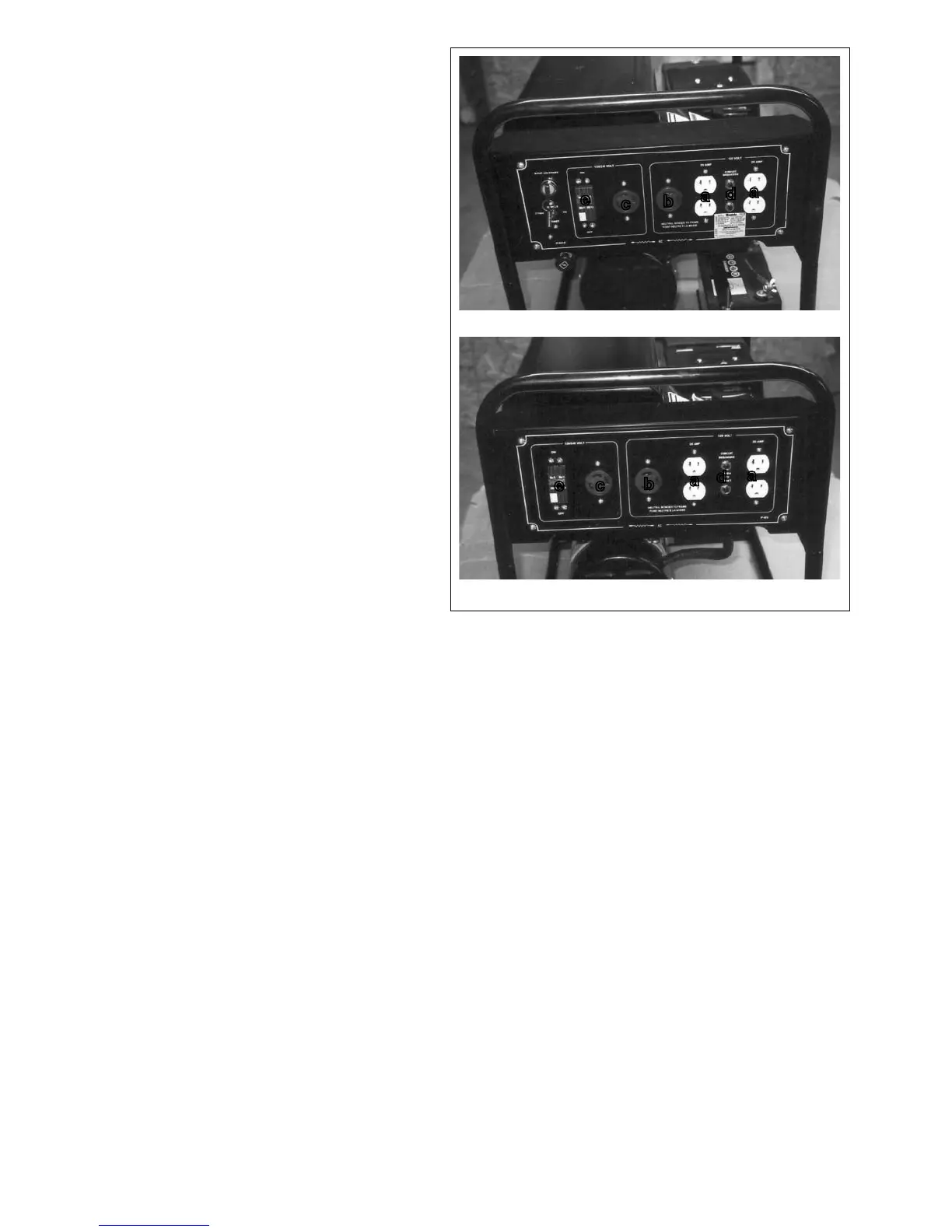

Fig. 6 ELECTRICAL CONTROLS
2. Electrical Controls:
a. 120 Volt, 20 Amp Outlets: This outlet is
used to provide 120 Volt, 20 Amp power to
the customer.
b. 120 Volt, 30 Amp Outlets: These outlets
are used to provide 120 Volt, 30 Amp power
to the customer.
c. 240 Volt Outlet: This outlet is used to
provide 240 Volt power to the customer
(EU5000/E - 240 V, 20 A, EU6000/E - 240
V, 25 A, EU7200E - 240 V, 30 A).
d. 120 Volt Circuit Breakers: These push
switches are used to reset the circuit break-
ers to the adjacent 120 Volt outlets. Push the
switch to reset the breaker if it is tripped.
e. Master Breaker: This two position switch
controls the master breaker for the gen-
erator. Move the switch up to engage the
breaker before starting or when the breaker
trips and down to disengage the breaker.
Electric Start
Manual Start
IMPORTANT
A circuit breaker that trips
repeatedly may indicate a
problem.
b
a
c
a
d
e
b
a
c
a
d
e
