26

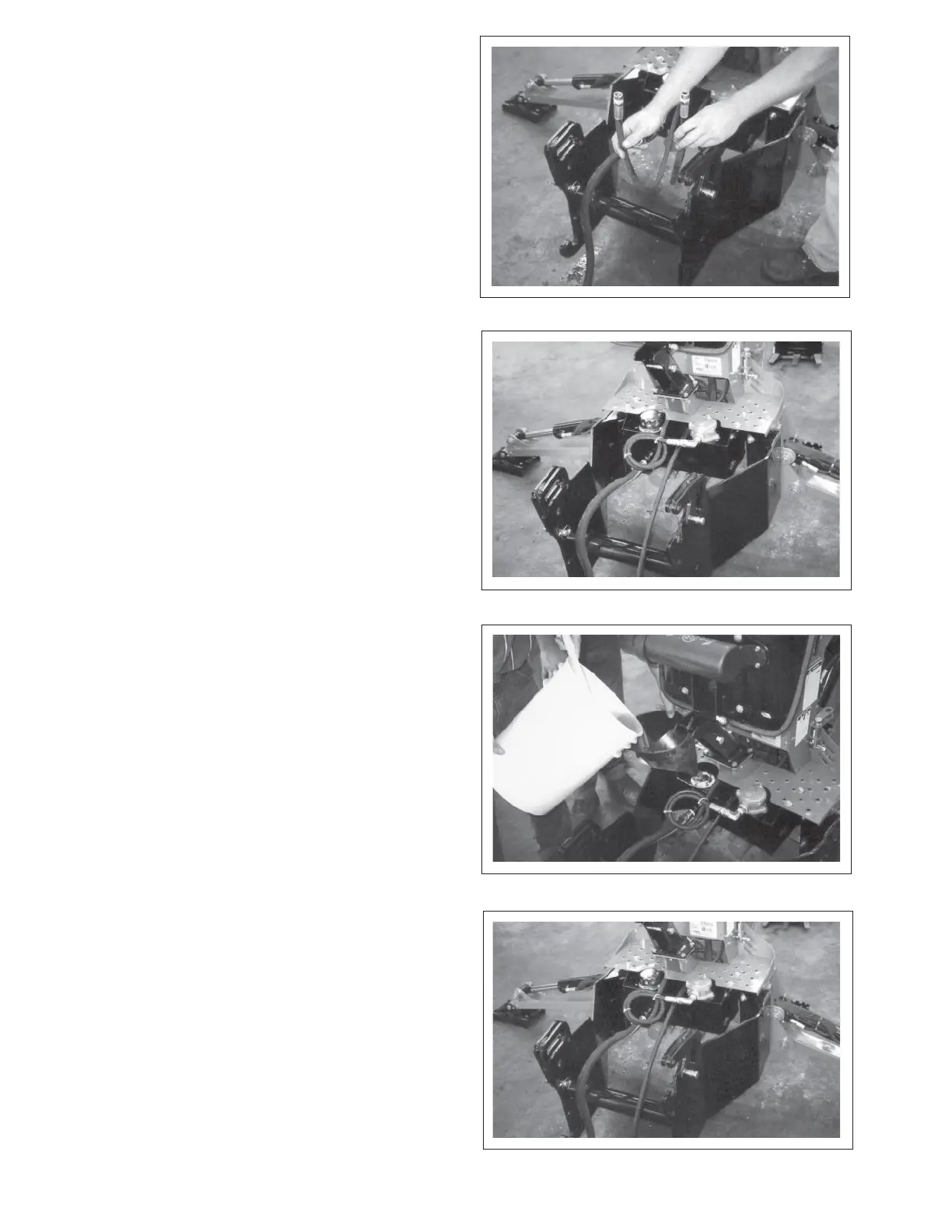

Fig. 15 COUPLER REMOVED
4. Remove the couplers from the hose
ends.
5. Wrap the threads with tefl on tape to prevent
leaks.
6. Connect the input (high-pressure) line to
the pump outlet. Tighten to its specifi ed
torque.
7. Connect the return (low-pressure) line to the
fi lter head.
Fig. 16 RETURN LINE
NOTE
The line is long. Form it into a
loop(s) and secure with tape,
clips or plastic ties.
8. Fill the reservoir with 3 gallons (11 l) of the
specifi ed oil.
9. Install the reservoir cover.
Fig. 17 FILLING
Fig. 18 COVER
