4.7.4 AUXILIARY HYDRAULIC SYSTEM
Some tractors are not equipped with a hydraulic system
that can be used to power the backhoe. An optional aux-
iliary hydraulic system is available and can be mounted to
the backhoe.
When mounting the auxiliary hydraulic system, follow this
procedure:

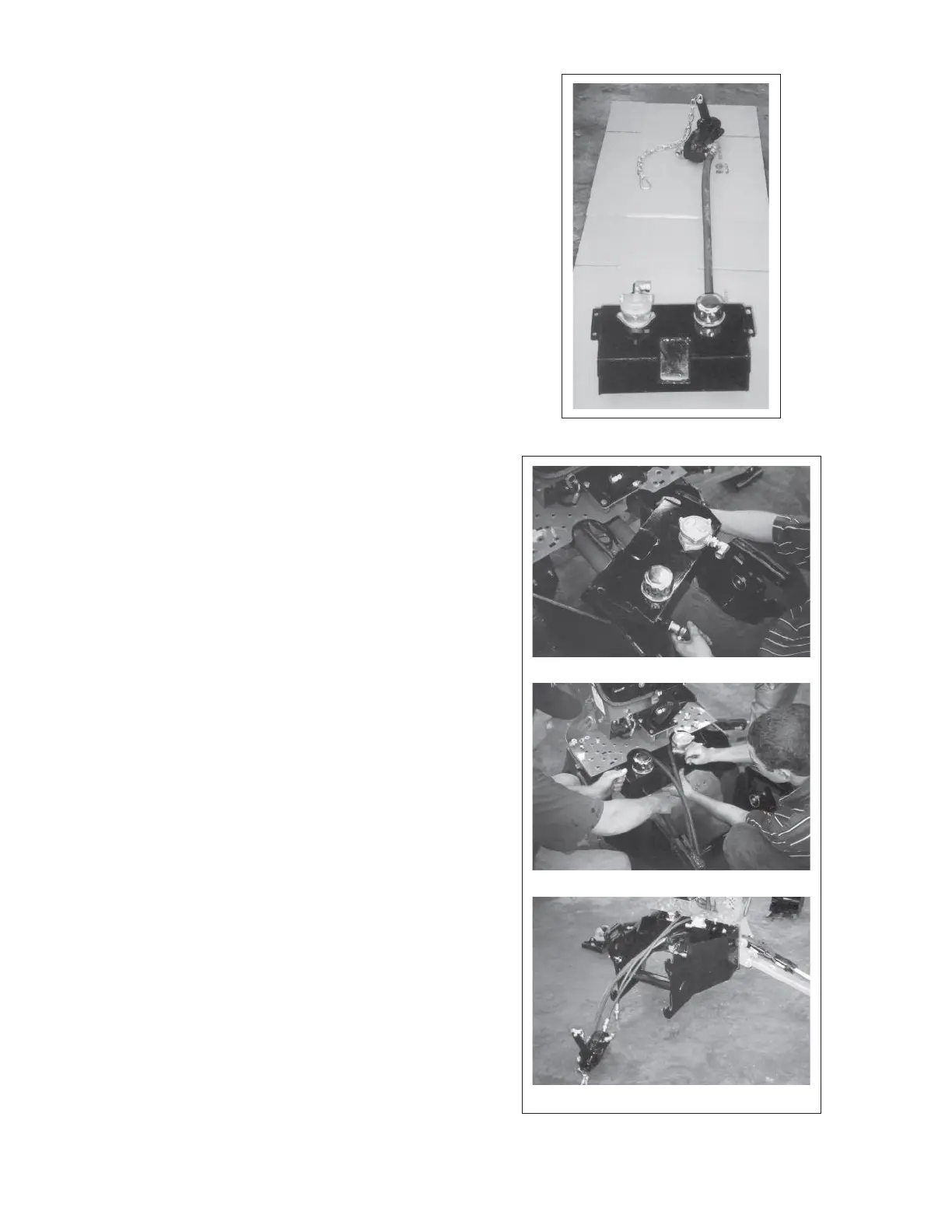

Fig. 13 LAY-OUT
1. Clear the area of bystanders, especially
small children before starting.
2. Lay out the auxiliary hydraulic system.
3. Mount the oil reservoir to the backhoe
frame:
a. Move the tank into position.
b. Install mounting bolts.
c. Tighten mounting bolts to their spec-
fi ed torque.
NOTE
Be sure the mounting adapter
is attached to the backhoe.
Positioning
Mounting
Mounted
Fig. 14 OIL RESERVOIR
