28
5. Start the tractor engine. set
parking brake, set the throttle at
its mid-range and place hydrau-
lic lever in detent.
6. Use the controls to raise the
backhoe frame to match the
tractor mounting points.
7. Raise each stabilizer in turn
along with the dipper / bucket
to raise the frame. Raise a lit-
tle each time to keep the frame
level.
8. Raise until the mounting brack-
ets align with the 3 point hitch
lower links.

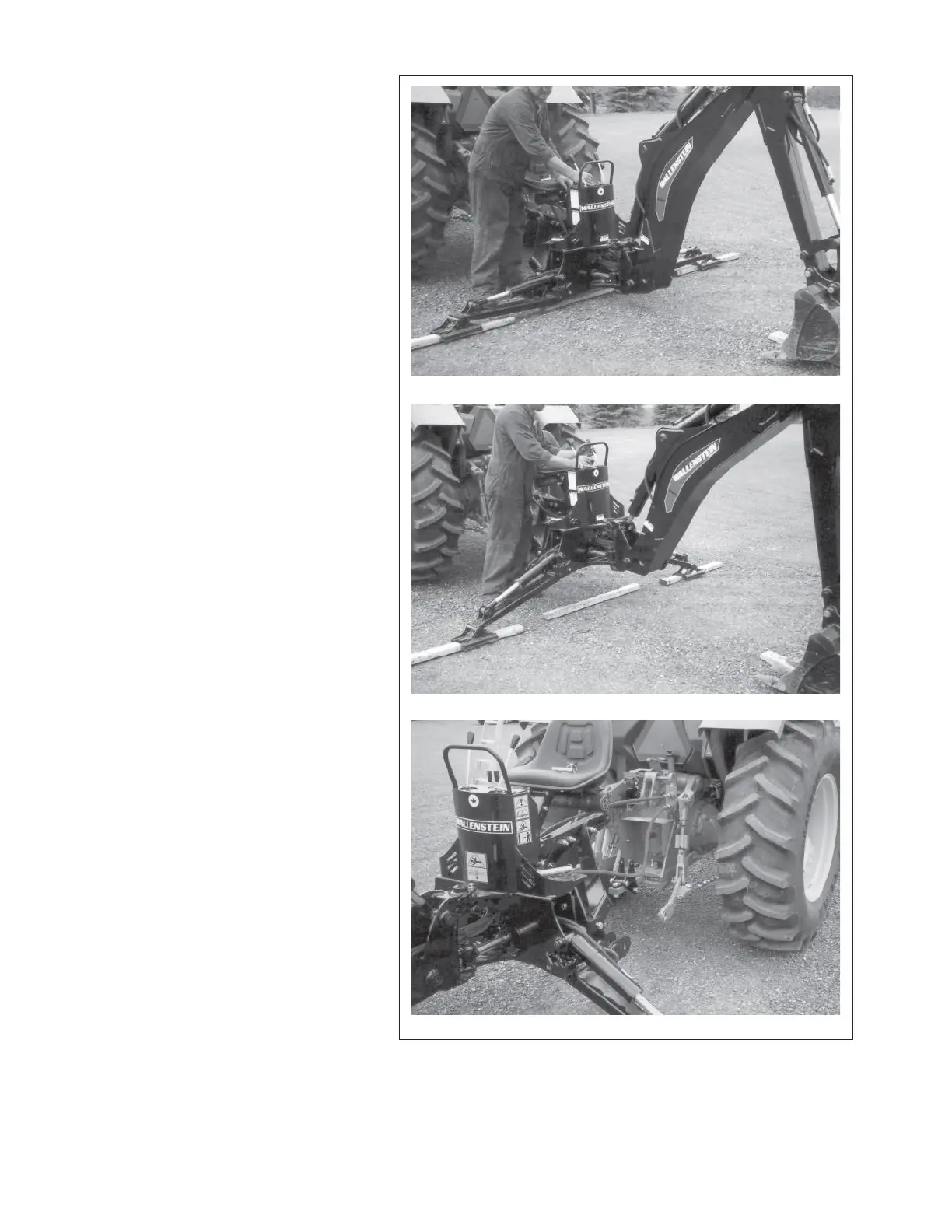

Stored
Fig. 21 FRAME RAISING
Frame Raised
Aligned
To Next Page
