9. Install the pins and retainers through the
lower links.
a. Right.
b. Left.
10. Install the pin and retainer through the top
link.
Right

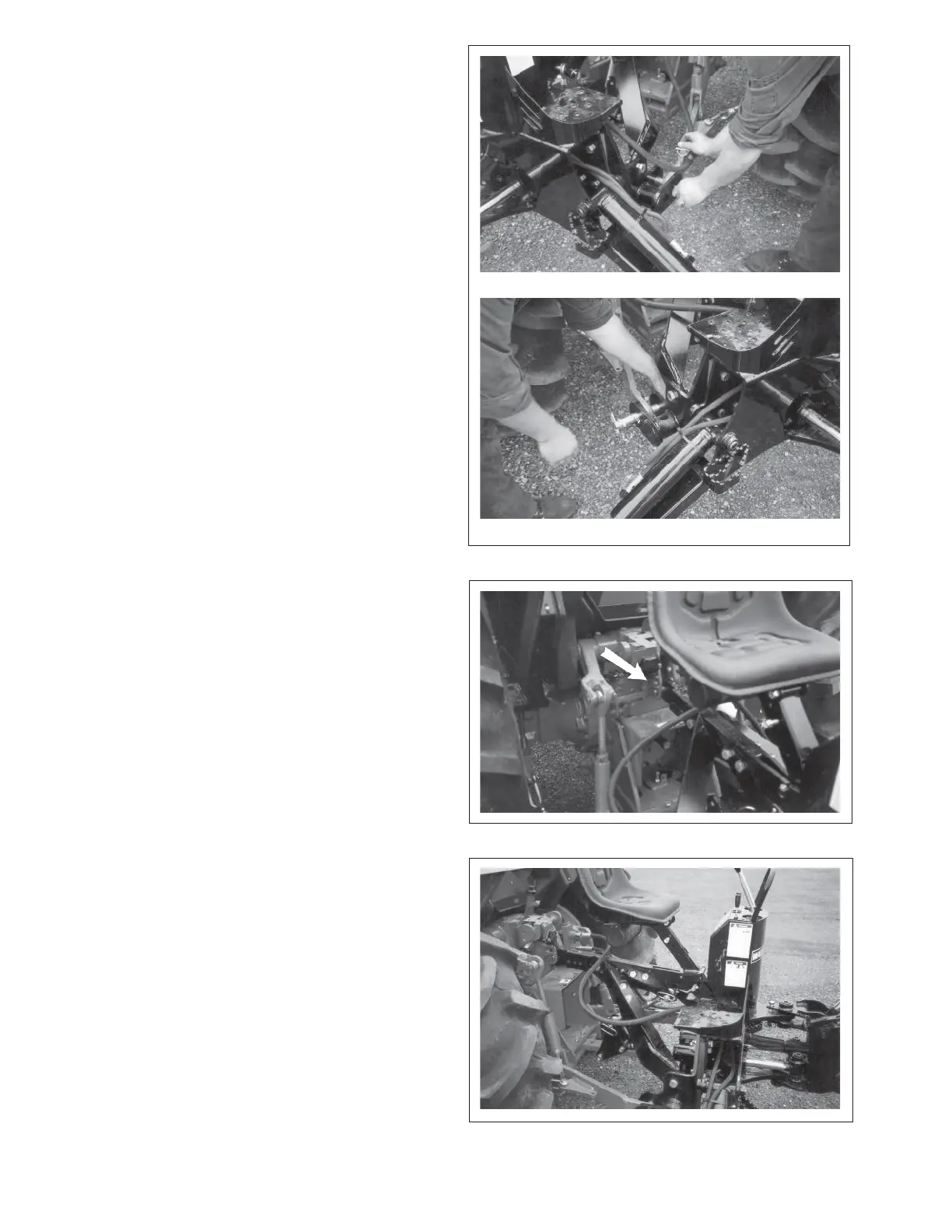

Fig. 22 PINS AND RETAINERS
Left
Fig. 23 TOP LINK PIN
Fig. 24 SUPPORT STRUT
11. Install the center support strut. Install the
pins and retainers through each end.
NOTE
It may be necessary to move
the dipper / bucket to align the
holes.
