12. Retract the boom / bucket and stabilizers.
13. Carefully use the controls to set the bottom
of the frame 13 inches (330 mm) above the
ground.

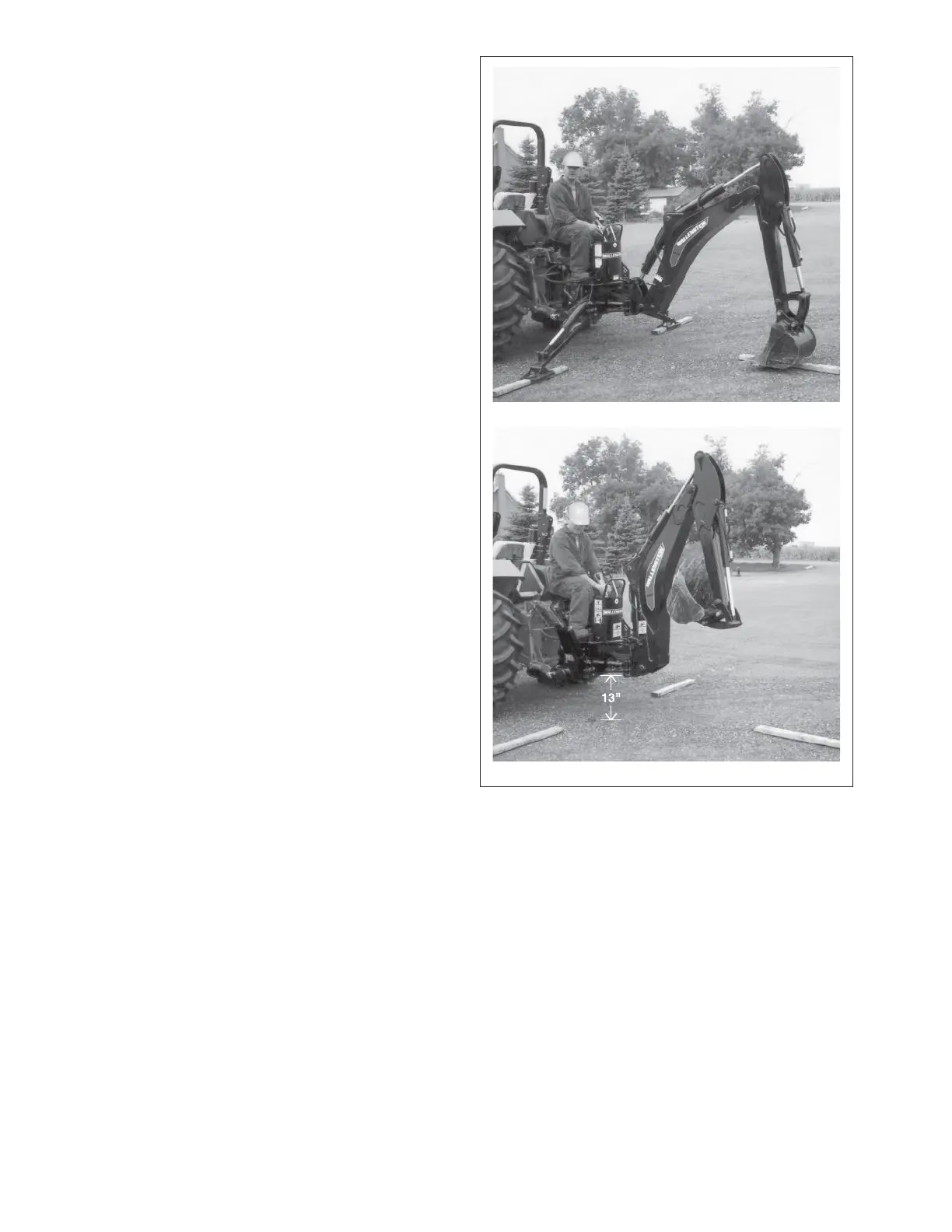

Mounted
Fig. 25 HEIGHT
Raised
IMPORTANT
If the top link and strut do not
support the frame at this height,
they need to be re-adjusted so
they do.
14. Reverse the above procedure when un-
hooking. Be sure to place planks under the
stabilizers and bucket for added support.
(330 mm)
