31

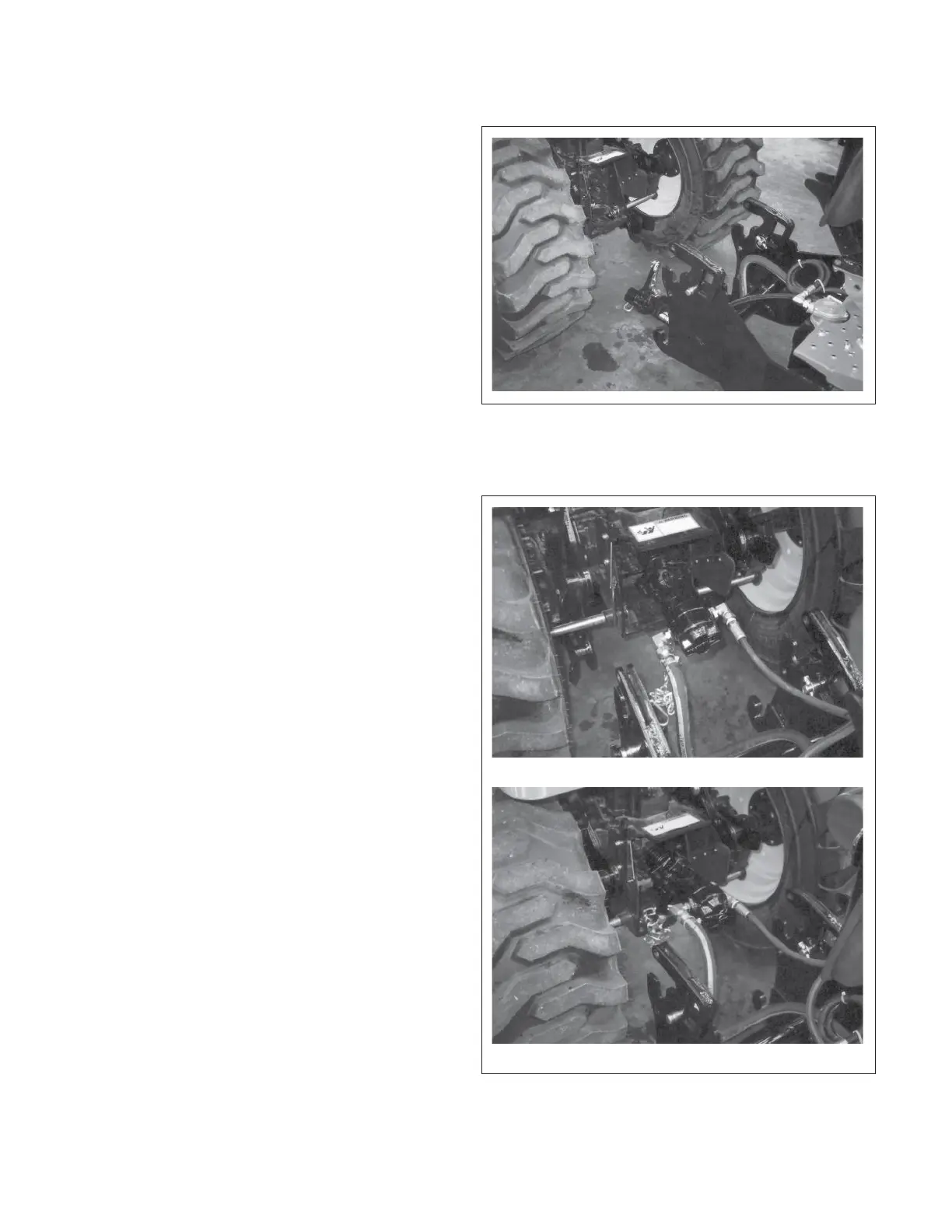

4.8.2 MOUNTING WITH OPTIONAL HYDRAULIC PUMP
Pump Installed
Fig. 26 POSITIONED
Anchor Chain
Fig. 27 PUMP MOUNTING
The Backhoe should always be located on a
level, dry area that is free of debris and other
foreign objects. When attaching the Backhoe
with the optional hydraulic pump to the tractor,
follow this procedure:
1. Make sure that all bystanders, especially
small children are clear of the work area.
2. Make sure there is enough room and clear-
ance to safely back up to the Backhoe.
3. Stop close enough so the length of the hy-
draulic lines allow the pump to be mounted
to the tractor. Set the park brake and remove
the ignition key.
4. Retract the lock pin and slide the pump over
the PTO shaft. Be sure the lock pin seats in
the groove. Pull on the pump to be sure.
5. Attach the anchor chain to a part of the frame
to prevent the pump from turning.
6. Start the tractor, set park brake and engage
the PTO. Set the throttle at mid-range. This
will provide oil to the hydraulic system on the
backhoe.
