4.8.3 MOUNTING TO SKID STEER
The Backhoe can be mounted to a
skid steer loader if it is equipped with
the appropriate mounting kits. The re-
mote hydraulic outlet must be located
at the end of the loader arms to pro-
vide pressurized oil to the backhoe.
When mounting to a skid steer, follow
this procedure:
1. Clear the area of all bystanders,
especially small children.
2. Mount the face plate attaching
frame to the back of the backhoe
frame.
3. Tighten fasteners to their speci-
fi ed torque.
4. Mount anchor frame to the front
of the skid steer frame.
5. Tighten fasteners to their speci-
fi ed torque.
Frame
Attached

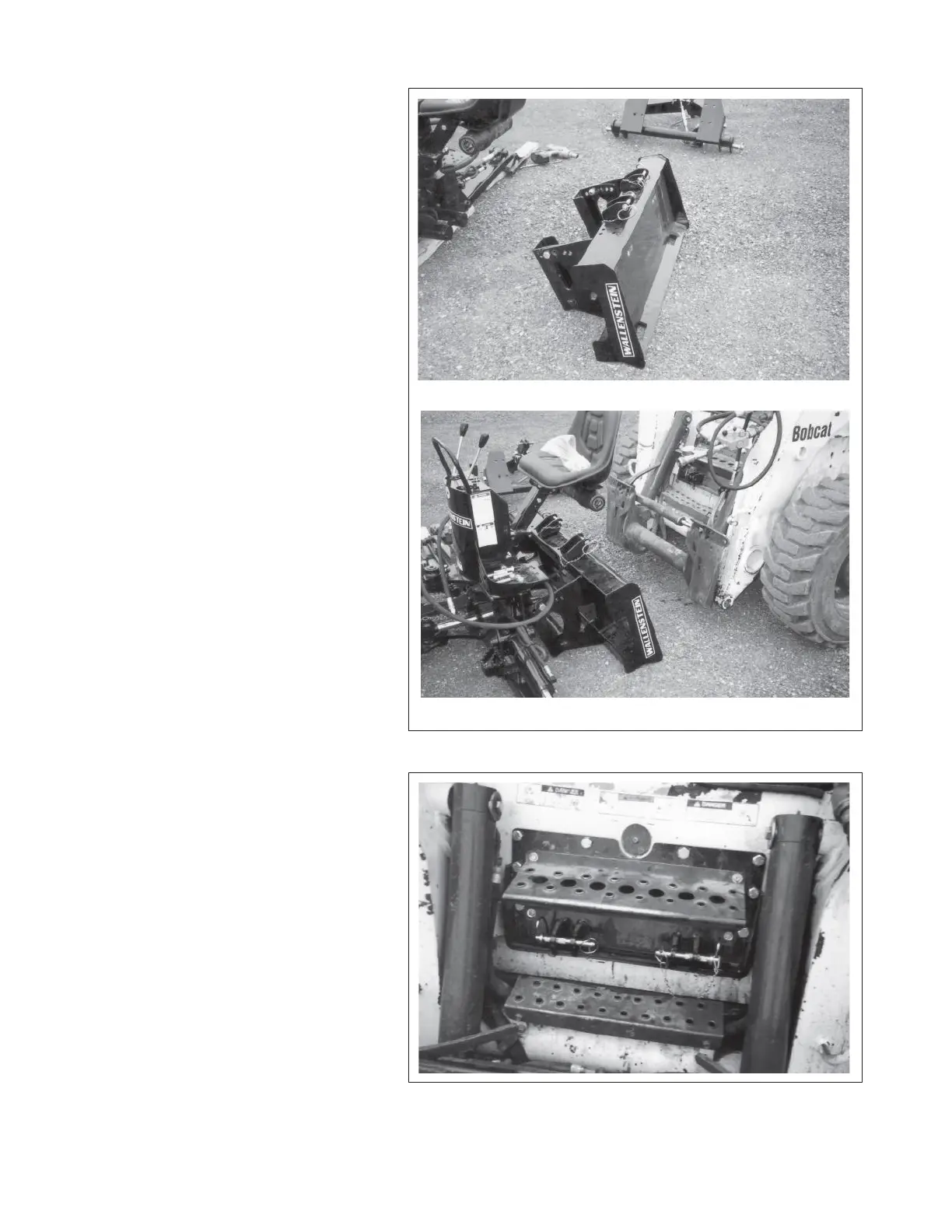

Fig. 32 FACE PLATE ATTACHING FRAME
Fig. 33 ANCHOR FRAME
