13. Mount the support turnbuckles
between the skid steer and
mounting frame.
14. Install anchor pins and retain-
ers.
15. Be sure that they are the same
length to equalize the loading.
Measure to be sure.
16. Raise the stabilizers, boom,
dipper and bucket.
17. Reverse the above proce-
dure when unhooking.
18. Place planks or boards un-
der the bucket, frame and
stabilizers for extra support
if required.
Turnbuckles
Pins and Retainers

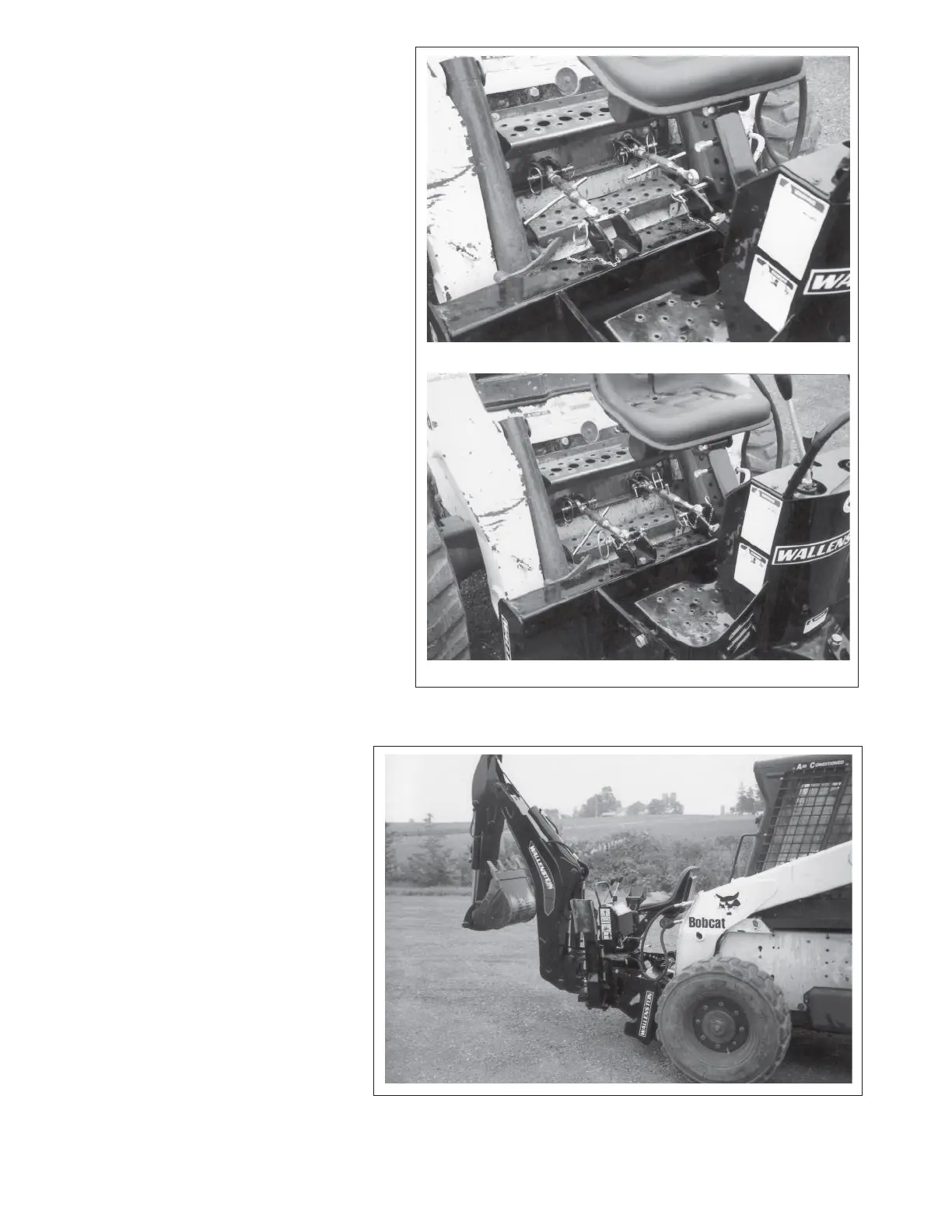

Fig. 38 SUPPORT TURNBUCKLES
Fig. 39 MOUNTED
