Moving
Alignment

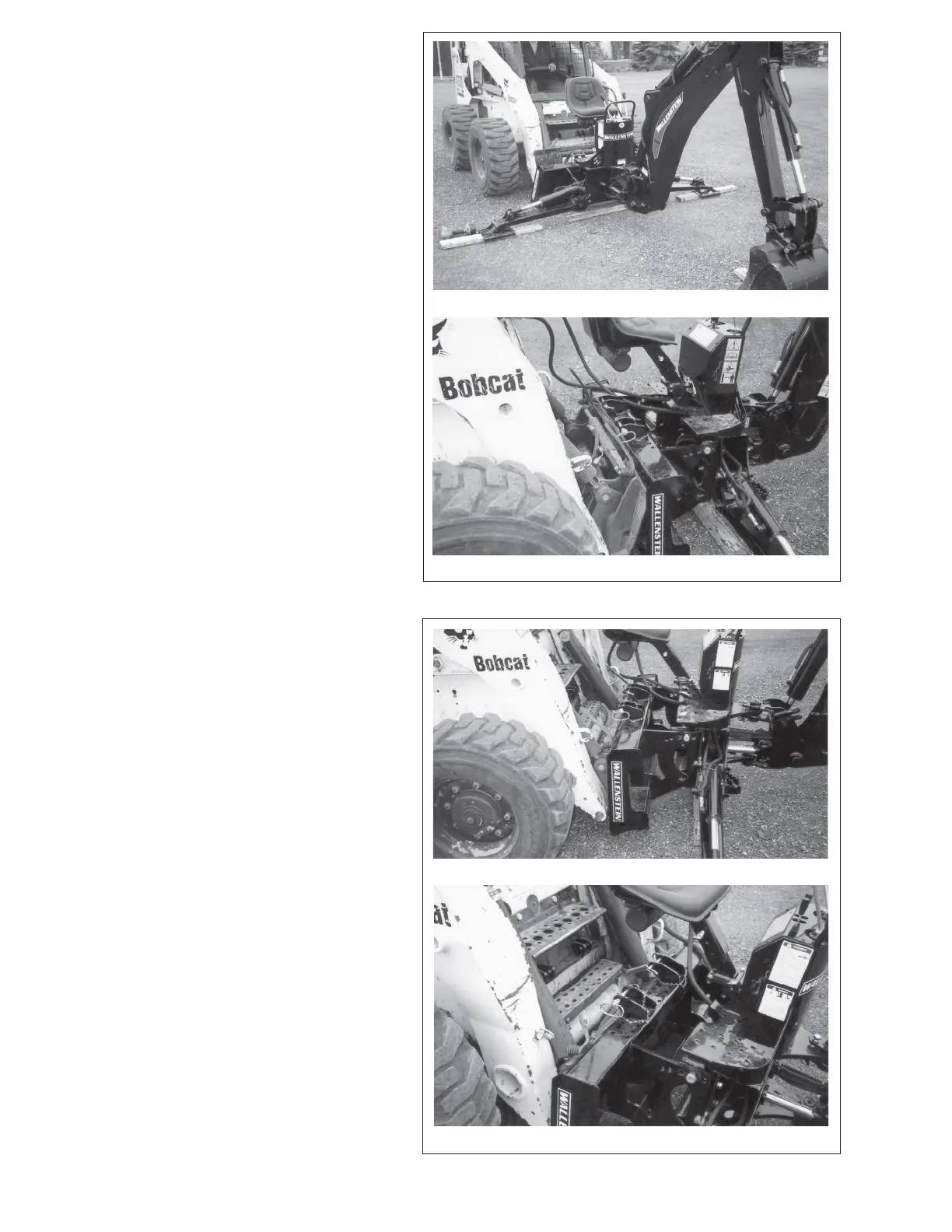

Fig. 36 FACE PLATE
8. Start the skid steer and place
the hydraulic system in detent
to supply oil to the coupler.
9. Climb on the backhoe and use
the controls to raise the frame
if required to allow the skid
steer face plate to mate with
the backhoe.
10. Drive the skid steer forward
and mate the loader face plate
into the backhoe.
11. Lift the frame slightly when
the face plate is mated to the
backhoe.
12. Lock the pins.
Lifted
Locked
Fig. 37 ATTACHED
