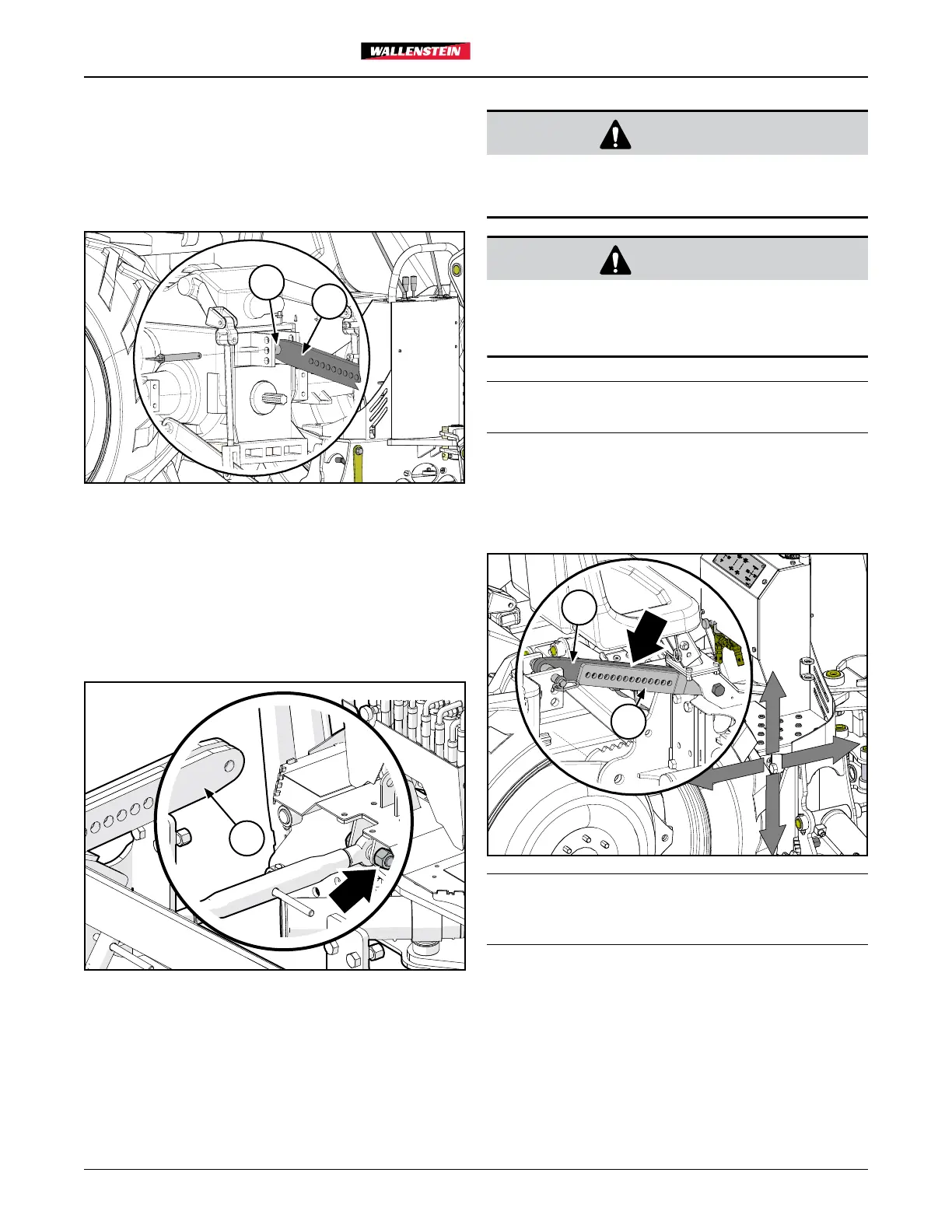

Step 4
Attach 3042S101 Center Tieback (item 6) and 3042M102
Toplink Bushing (item 5) to the tractor top link mount using the
tractor's hitch pin.
Use 3041M201 3/4" bushing (item 3) to step down to a smaller
pin diameter, if required.
6
5
Step 5
Assemble the two 3042S102 Side Tieback bars (item 7)
to backhoe top link mount (see arrow). Remove the toplink
turnbuckle and bolt from the backhoe. Use that bolt to secure
the Side Tieback bars.
(The toplink supplied with the backhoe is not required with the
Three-point Hitch Kit.)
7
Step 6
WARNING!
Do not risk machine moving unexpectedly.
Apply parking brake and turn engine o before
proceeding.
WARNING!
Risk of crushing hazard. The operator must be
safely positioned in the seat before operating the
backhoe. Clear the area of bystanders.
W058
IMPORTANT! Make sure the backhoe is straight (aligned
with the tractor) and level.
Start the tractor and raise the lower link arms so the bottom of
the backhoe is approximately 13" (330 mm) off the ground.
Use the backhoe boom and stabilizers to align the Center Link
(item 6) and Side Tieback bars (item 7) for Step 7.
2
6
IMPORTANT! In some cases, the Center Tieback (item 6)
may end up being too long for the tractor when installed. In
this case, cut the middle bar shorter to fit.
5
PT322
