Walter NFQ2020A - Diagram; Parts List

GB
34

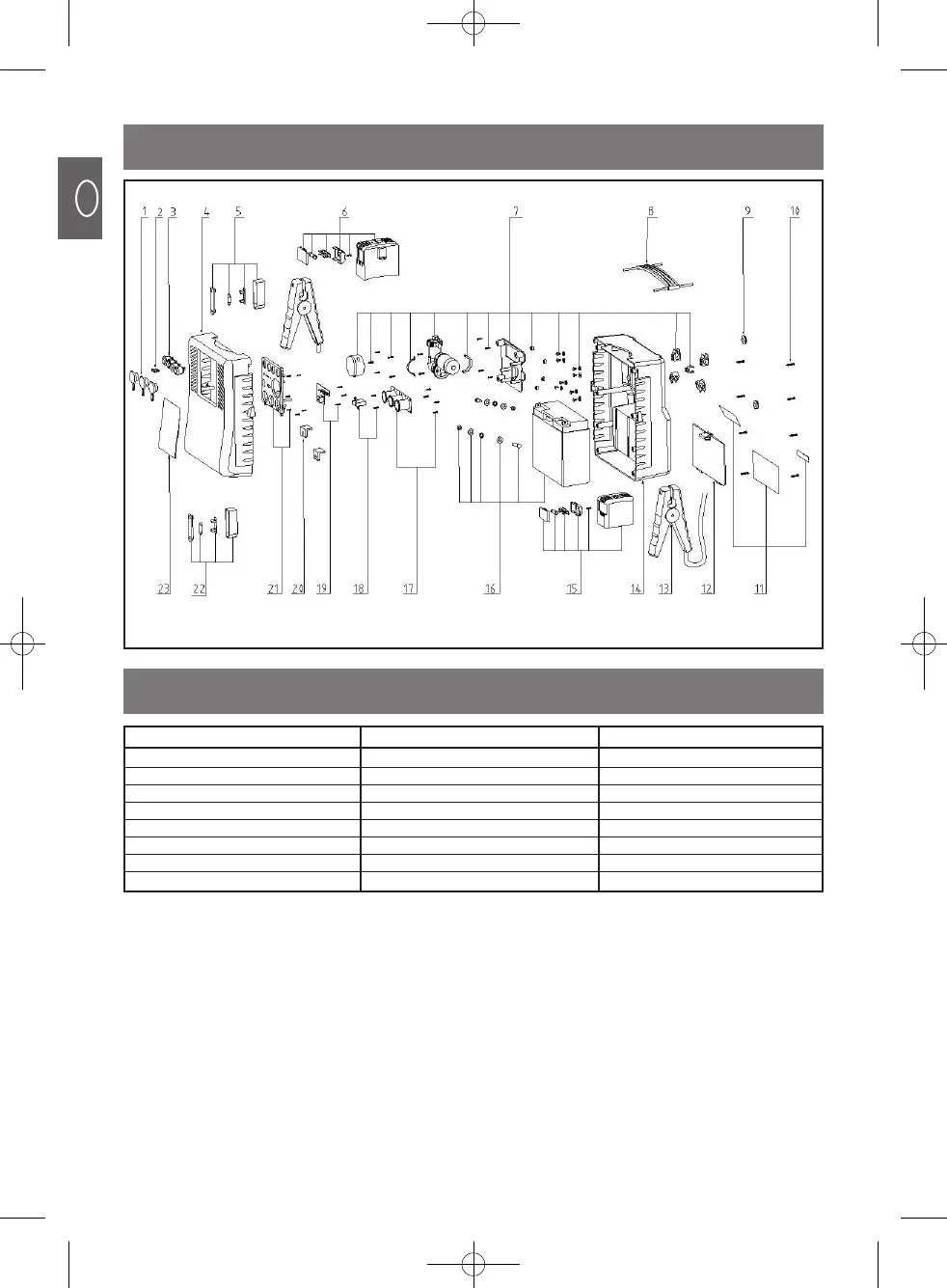

DIAGRAM
PARTS LIST
1. Rubber cover
2. Fuse
3. Switches
4. Plastic cover
5. Front lamp
6. Side lamp
7. Air compressor
8. Handle
9. Rubber gasket
10. Selftapping screw
11. Label
12. Plastic board
13. Clamp
14. Plastic cover
15. Side lamp
16. Battery
17. Cigarette plug socket
18. Fuse socket
19. Battery status PCB
20. Pad for battery
21. Switch board
22. Front lamp
23. Label
