True By-pass Relay Switch: We use a true-bypass relay because it utilizes a quieter and smoother
switch that is more reliable than traditional bypass switches. Your original tone/signal will remain
unaffected when the pedal is not engaged.
Volume: This control adjusts the output level of the Clarksdale. The Clarksdale was designed to
have higher output. This allows the Clarksdale to have more headroom when needed. The output
volume, Gain and Tone controls all have an impact on the total volume, so you might want to adjust
the Volume after you have dialed in the other controls. Re-adjustment might be necessary if you get
it to the desired level and still need to tweak the sound.
Gain: This control adjusts the total amount of gain that is applied to the signal path. Turning the
Gain control clockwise will increase the amount of gain in the circuit. Whether you use a little gain
for a smooth break up - or crank your gain all the way up for great thick, vintage style overdriven
tone - your drive will stay true and not fizzle out as much as the original ‘screamer style of pedals.
Smooth/ Lift Switch: The Clarksdale features a small toggle switch that is labeled LIFT and
SMOOTH. The Lift/ Smooth switch will allow a player to either sit in the mix with the Smooth
setting or allow your leads to standout with the Lift option.
Bass: Adjusts the amount of bass applied to the effected signal. If you are using a S style, single coil
guitar rather than a humbucker loaded instrument, you may find you need more bass to “fatten” up
the tone. When in the fully counterclockwise position, the tone will be much thinner and brighter
and when fully clockwise it will be fuller, darker and heavier around the low end.
Mids: Adjusts the total amount of midrange that is applied to the effected signal. Unlike a tradition-
al ’screamer style circuit that had an ever present midrange bump – you can now choose to dial in
less or even more mid-range as you see fit.
Treble: Works in the same way as the bass knob but controls the amount of treble on the effected
signal. Again, fully counterclockwise the treble is reduced considerably and clockwise brings it
forward. You may have to tweak both the treble and bass controls simultaneously to find your sweet
spot.

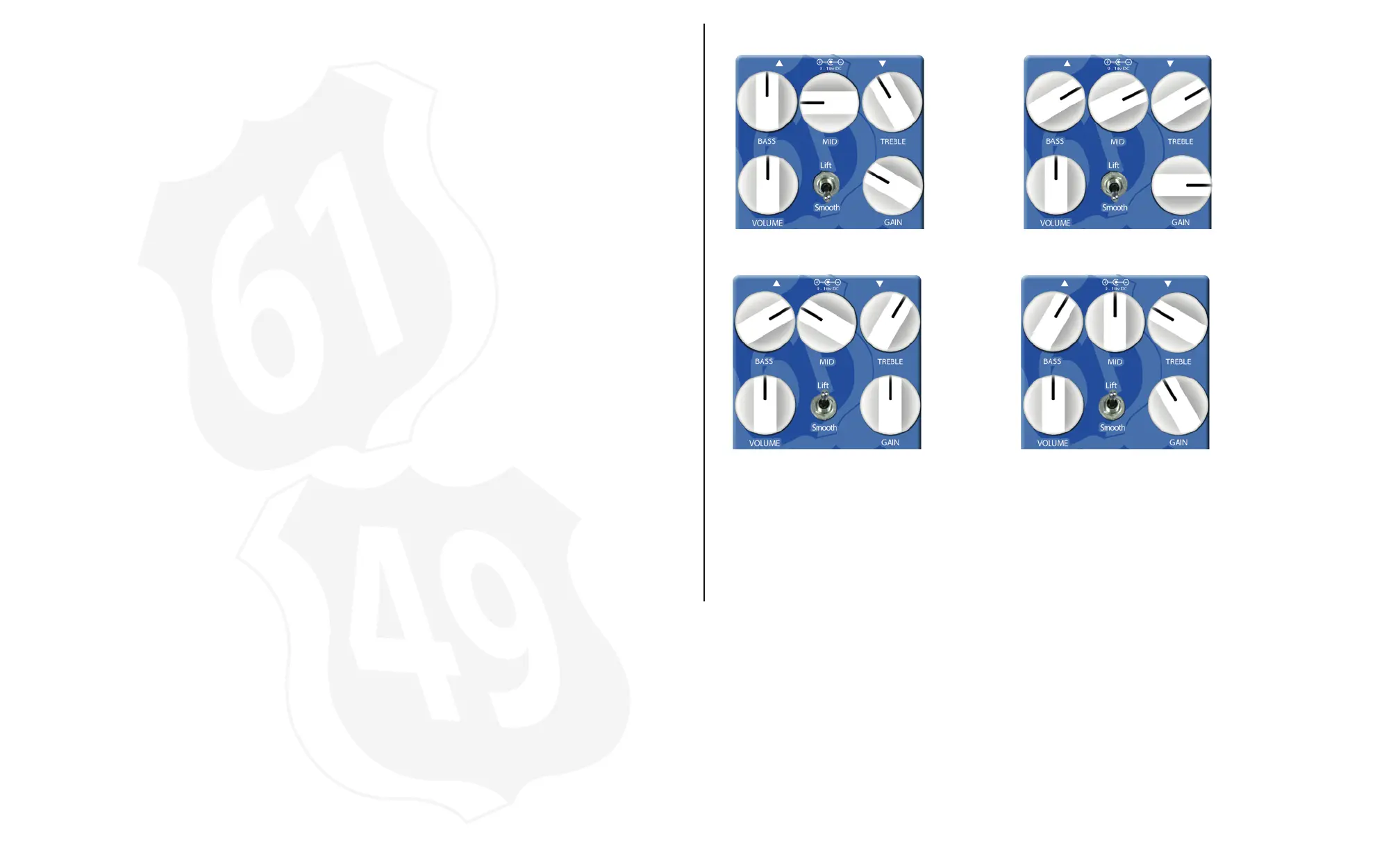

Suggested Settings
WAMPLER Pedals Limited Warranty. WAMPLER oers a ve (5) year warranty to the original purchaser that this WAMPLER product will be free from defects in material and workmanship. A dated sales receipt will establish coverage under this warranty. This warranty does not cover service or parts to repair damage caused by accident, neglect,
normal cosmetic wear, disaster, misuse, abuse, negligence, inadequate packing or shipping procedures and service, repair or modications to the product, which have not been authorized by WAMPLER. If this product is defective in materials or workmanship as warranted above, your sole remedy shall be repair replacement as provided below.
RETURN PROCEDURES. In the unlikely event that a defect should occur, follow the procedure outlined below. Defective products must be shipped, together with a dated sales receipt, freight pre-paid and insured directly to WAMPLER SERVICE DEPT – 3383 Gage Ave., Huntington Park, CA 90255, USA. A Return Authorization Number must be
obtained from our Customer Service Department prior to shipping the product. Products must be shipped in their original packaging or its equivalent; in any case, the risk of loss or damage in transit is to be borne by the purchaser. The Returns Authorization Number must appear in large print directly below the shipping address. Always include a
brief description of the defect, along with your correct return address and telephone number.
When emailing to inquire about a returned product, always refer to the Return Authorization Number. If WAMPLER determines that the unit was defective in materials or workmanship at any time during the warranty period, WAMPLER has the option or repairing or replacing the product at no additional charge, except as set forth below. All replaced
parts become a property of WAMPLER. Products replaced or repaired under this warranty will be returned via ground shipping within the United States freight prepaid. WAMPLER is not responsible for costs associated with expedited shipping, either to WAMPLER or the return of the product to the customer.
INCIDENTAL OR CONSEQUENTIAL DAMAGE. In no event is WAMPLER liable for any incident or consequential damages arising out of the use or inability of the possibility of such damages, or any other claim by any other party. Some states do not allow the seclusion or limitation of consequential damages, so the above limitation and exclusion may
not apply to you. This warranty gives you specic legal rights and you may also have other rights which may vary from state to state.
FOR YOUR PROTECTION. Please complete the online warranty registration within (10) ten days of the date of purchase so that we may contact you directly in the event of a safety notication issued in accordance with the 1972 Consumer Product Safety Act.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantees that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures.
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
• Consult the dealer or an experience radio/TV technician for help.
Changes or modications not expressly approved by the party responsible for compliance could void the user’s warranty to operate the equipment. CUSTOMER SUPPORT. Our dedicated sta is ready to help you with any warranty or product questions – please email us at help@wamplerpedals.com or call us on (765) 352-8626
Please remember to register your pedal as soon as possible after purchase at the following web page to ensure quicker service if you should ever need to make a warranty claim: www.RegisterYourWamplercom
Slightly pushing, a rounded tone that is
subtle yet powerful.
Powerful and gainy.
Enough to make the sky cry.
A thousand songs have been built
on this tone... with good reason!
