Wander Control Systems, Inc. 3
WCSI Keypad Installation Manual Page 3 of 6
KP-1, KP-2, & EscortR
Installation Manual
Installation

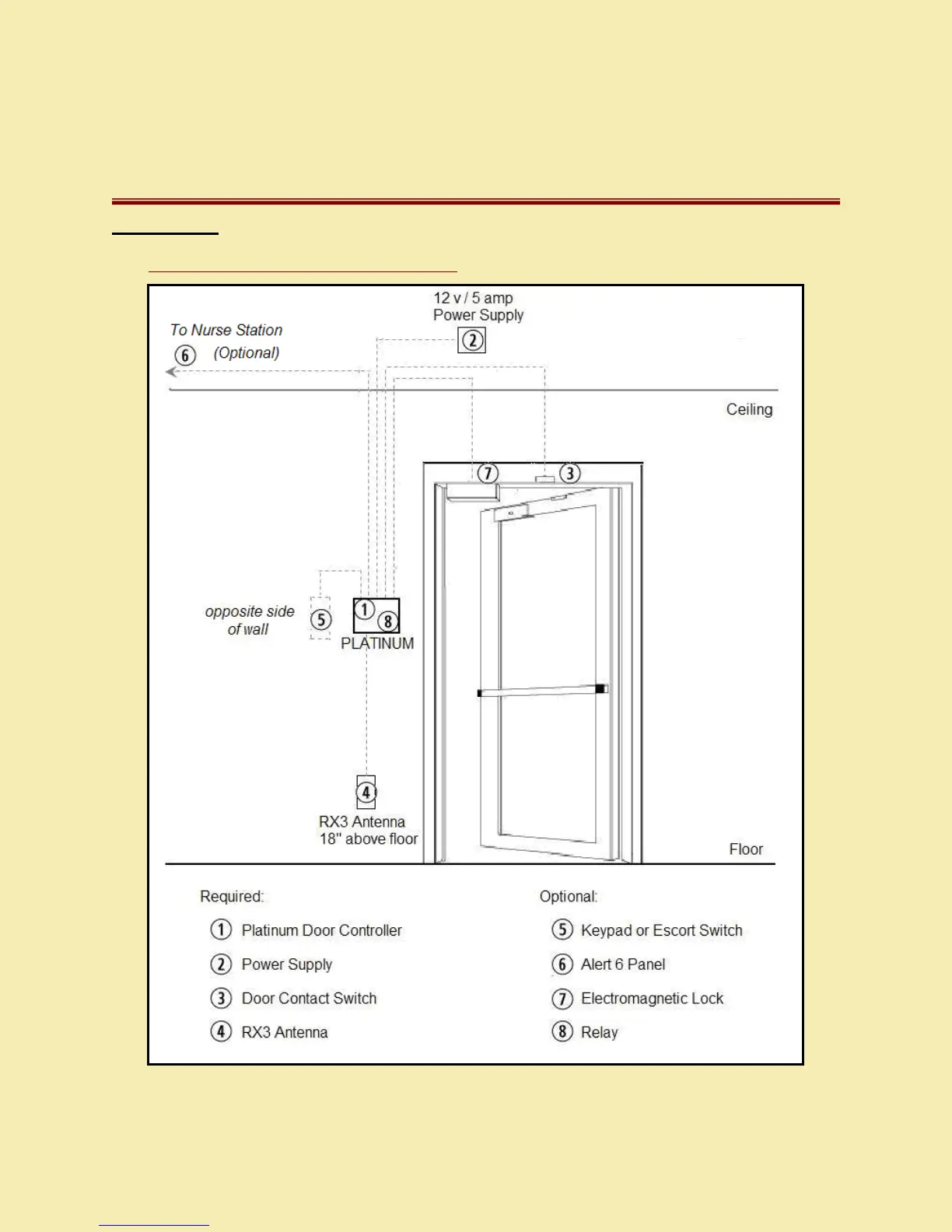

Figure 1. Platinum 3 Installation Diagram
Note: Diagram depicts a Platinum 3 with an antenna. The Sentry does NOT have an antenna.
