Wanner Engineering Hydra-Cell H-25 - Fluid End

2
H25-991-2402B
Not included with brass pump heads

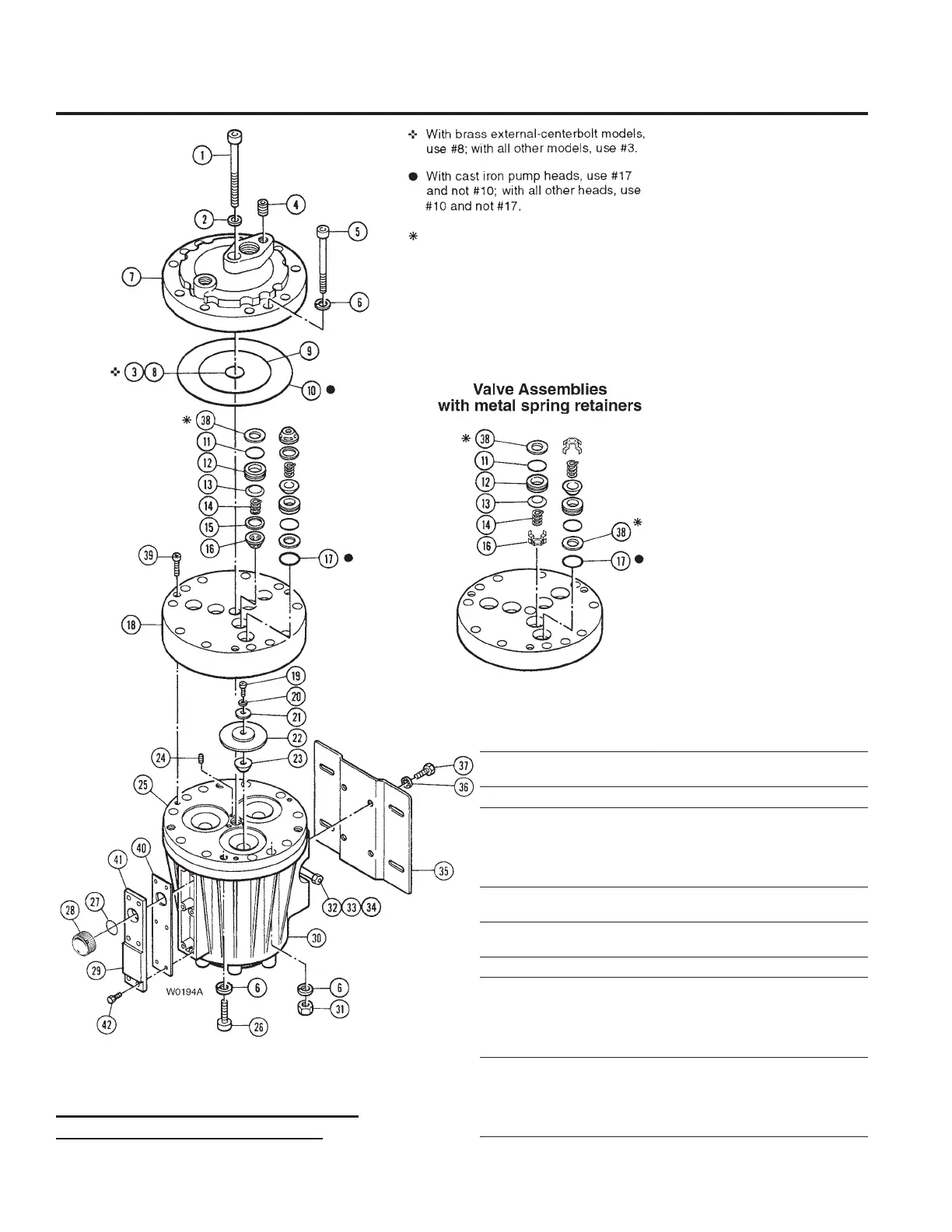

H-25 Fluid End (with metallic pump head)
1 G25-081-2045 Cap Screw, socket head,
M12 x 1.25 x 114 mm ...........................
1
2 G10-084-1010 Washer, 13 cm, flat
..............................1
3 D25-083-2110 O-ring, centerbolt, Buna
1
..................1
D25-083-2111 O-ring, centerbolt, Viton
1
..................1
D25-083-2112 O-ring, centerbolt, Neoprene
1
...........1
D25-083-2113 O-ring, centerbolt, EPDM
1
................1
D25-083-2118 O-ring, centerbolt, Teflon
1
.................1
4 D25-038-2017 Plug, Hastelloy C .................................1
D25-038-2211 Plug, 316 SST .....................................
1
5 G25-024-2010 Cap Screw, socket-head,
M10 x 1.5 x 120 mm .......................................................
11
6 G25-048-2010 Washer, split-lock, M10 .................... 25
7 D25-004-1010 Manifold, brass ....................................1
D25-004-1022 Manifold, 316 SST ...............................1
D25-004-1026 Manifold, cast iron ...............................1
D25-004-1029 Manifold, nickel alloy, Hastelloy
CW12MW ............................................
1
8 D10-083-2110 O-ring, center manifold, Buna
1
.........1
D10-083-2111 O-ring, center manifold, Viton
1
..........1
D10-083-2112 O-ring, center manifold, Neoprene
1
..1
D10-083-2113 O-ring, center manifold, EPDM
1
.......1
D10-083-2118 O-ring, center manifold, Teflon
1
........1
Note: Contact factory for pumps with
Serial Numbers 103199 or below.
Ref. Quantity/
No. Part Number Description Pump
