2.2.4 Time Clock
2.2.5 Room Stat
Each heater is supplied as standard with
a 7-day analogue clock.
To set the day of the week and the time
turn the minute hand in a clockwise
direction until the correct day and time is
opposite the indicator arrow.
The required on/off switching time is set
by pushing the timing segments to the
outer rim of the clock. The minimum time
period for each segment is 2 hours.
Before operating the heater ensure that
the selector switch is in its mid position.
A room thermostat is mounted on the main
control panel and controls the operation
of the burner. If the heater is not installed
in the area being heated or it has been
fitted with a separate fresh air intake then
an additional remote room thermostat
must be fitted.

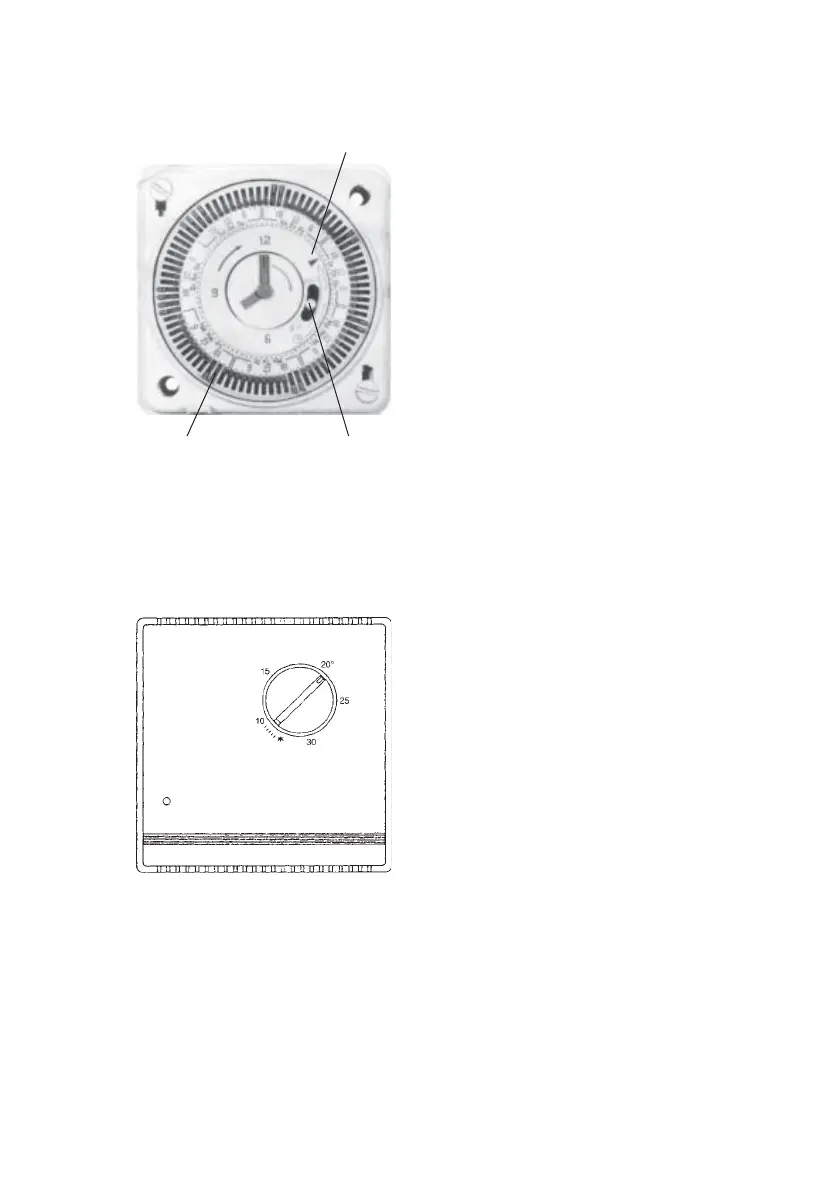

Timing Segments Selector Switch
Indictor Arrow
