3
15 1/4"”
(388mm)
or
20 1/4"”
(514mm)
stud
Anchor point
and Power Leg
Anchor pointAnchor point*
Anchor point*
16” (406mm)
stud
22 3/8" (568mm)
Afxing the Towel Warmer to the Wall - cont’d

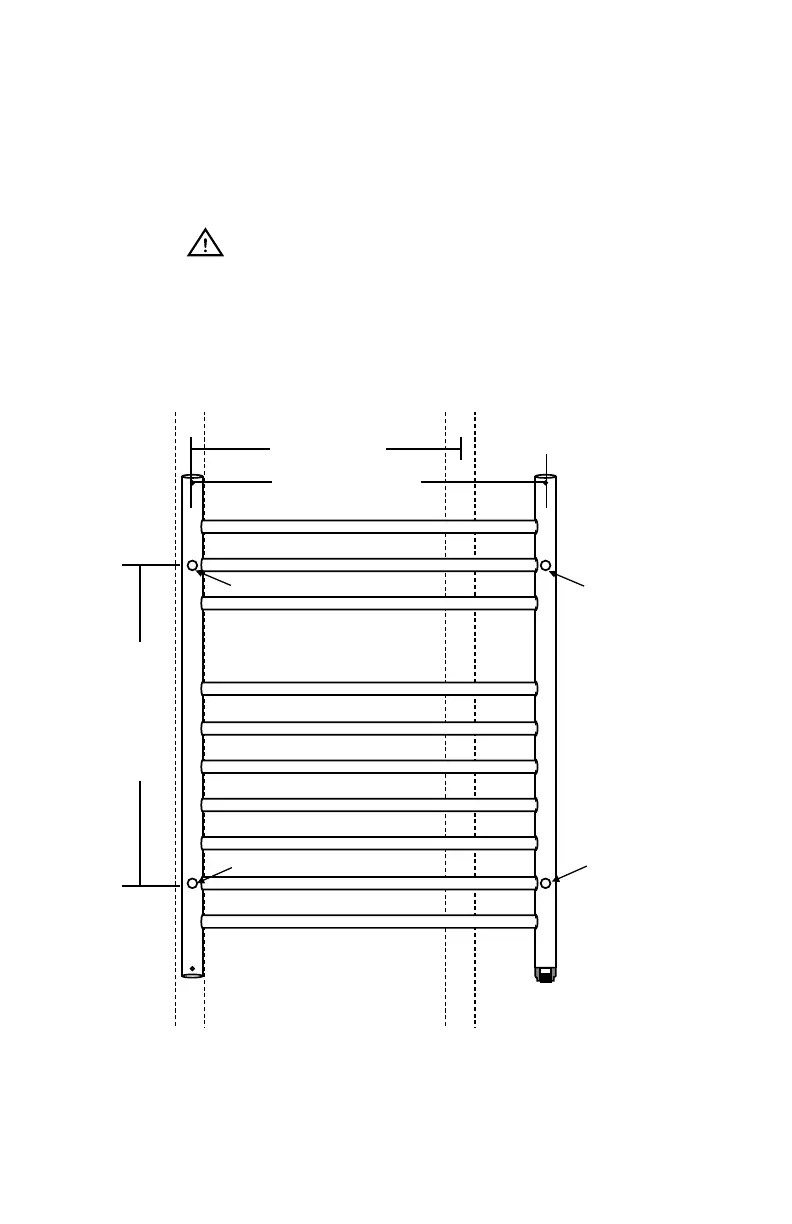

Note: Dimensions shown are distances between the center of anchor
points. This example shows 16” on center construction. Your situation
may vary depending on your stud spacing.
WARNING:
Locations of anchor points may vary. Measure all dimensions prior to
rough-in and installation.
Innity: Anchor Points
* Note: Left anchor points should be attached to a stud, if possible.
To Next Page
