4
PERMANENT 120V ac
FROM HOUSE POWER
16” (406mm)
15 1/4"”
(388mm)
or
20 1/4"”
(514mm)
1/2” (13mm) CONDUIT POWER
SUPPLY WIRE AND POWER LEG
2” x 4”
(51mm x 102mm)
ELECTRICAL BOX
FOR OPTIONAL CONTROL
2” X 4” STUD
(51mm x 102mm)
2” X 4” STUD
(51mm x 102mm)
Afxing the Towel Warmer to the Wall (continued)

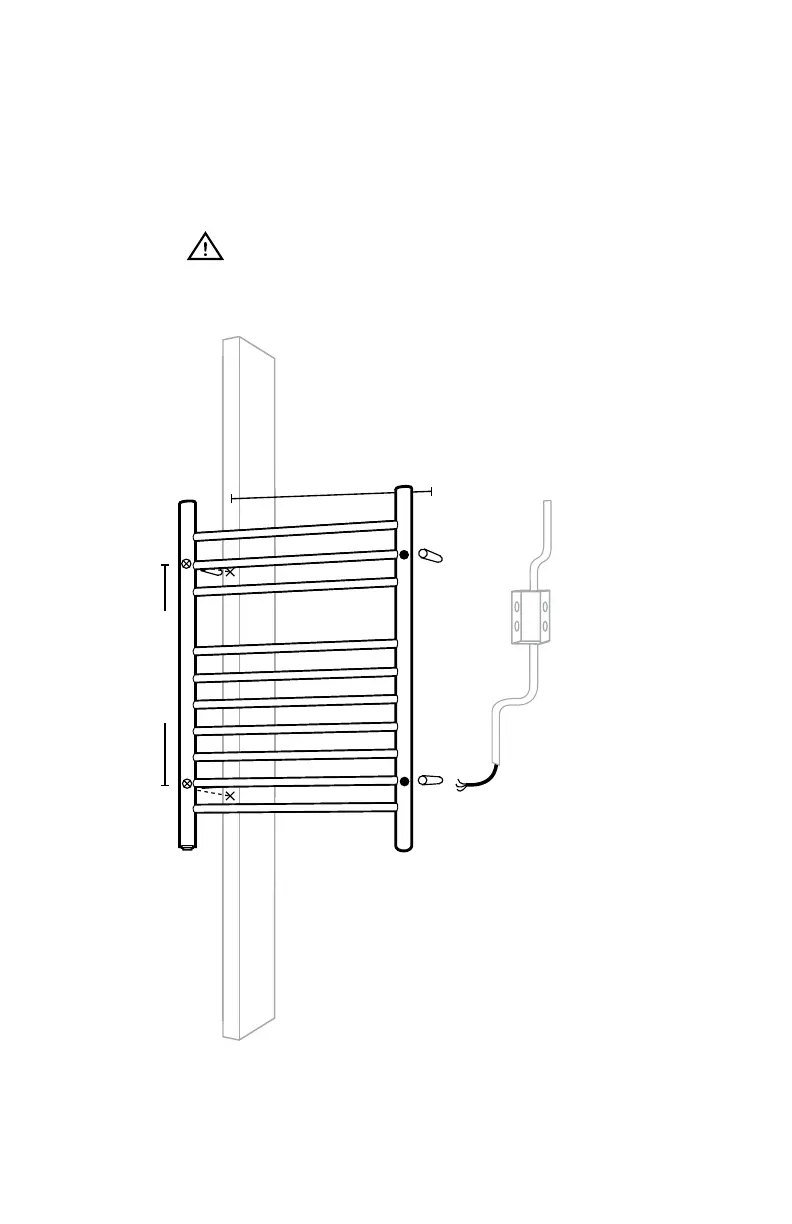

Diagram B: Rough-In Diagram
Note: Dimensions shown are distances between the center of anchor
points. This example shows 16 inches on center construction. Your
situation may vary depending on stud spacing.
WARNING:
Locations of anchor points may vary. Measure all dimensions prior to
rough-in and installation.
* Note: Left anchor points should be attached to a stud, if possible.
