WarmPool DC55 - Before carrying out any work, remember it is vital that all the valves are closed.; As you can see from the connection diagram, you need to install a BYPASS valve (if you do not already have one) between the filtration system and the water treatment system (or discharge).; Upstream of this BYPASS, an OUT pipe with a shut-off valve will be connected to the water inlet of the heat pump and a RETURN pipe with a shut-off valve will be connected to the water outlet of the heat pump.; Use the PVC connectors provided in the accessory kit to connect the hoses to the heat pump. On the pump side, fasten the supplied fittings using Teflon tape to ensure a good seal.

Your heat pump and your pool pump must be installed close to each other.5

Your heat pump must be placed outdoors and must follow the minimum spacings shown on the connection diagram.5

Your heat pump should be level and at least 15 cm above the ground. We recommend you use blocks and drain the condensation into a sump (which can be covered with gravel).5

If any of these recommendations are not followed or are not applicable, please contact the manufacturer to make sure that the installation performed or to be performed will not affect the proper functioning of your heat pump.5

Using your heat pump will necessarily create condensation (up to several liters of water per hour). This is not a leak.5

Before carrying out any work, remember it is vital that all the valves are closed.6

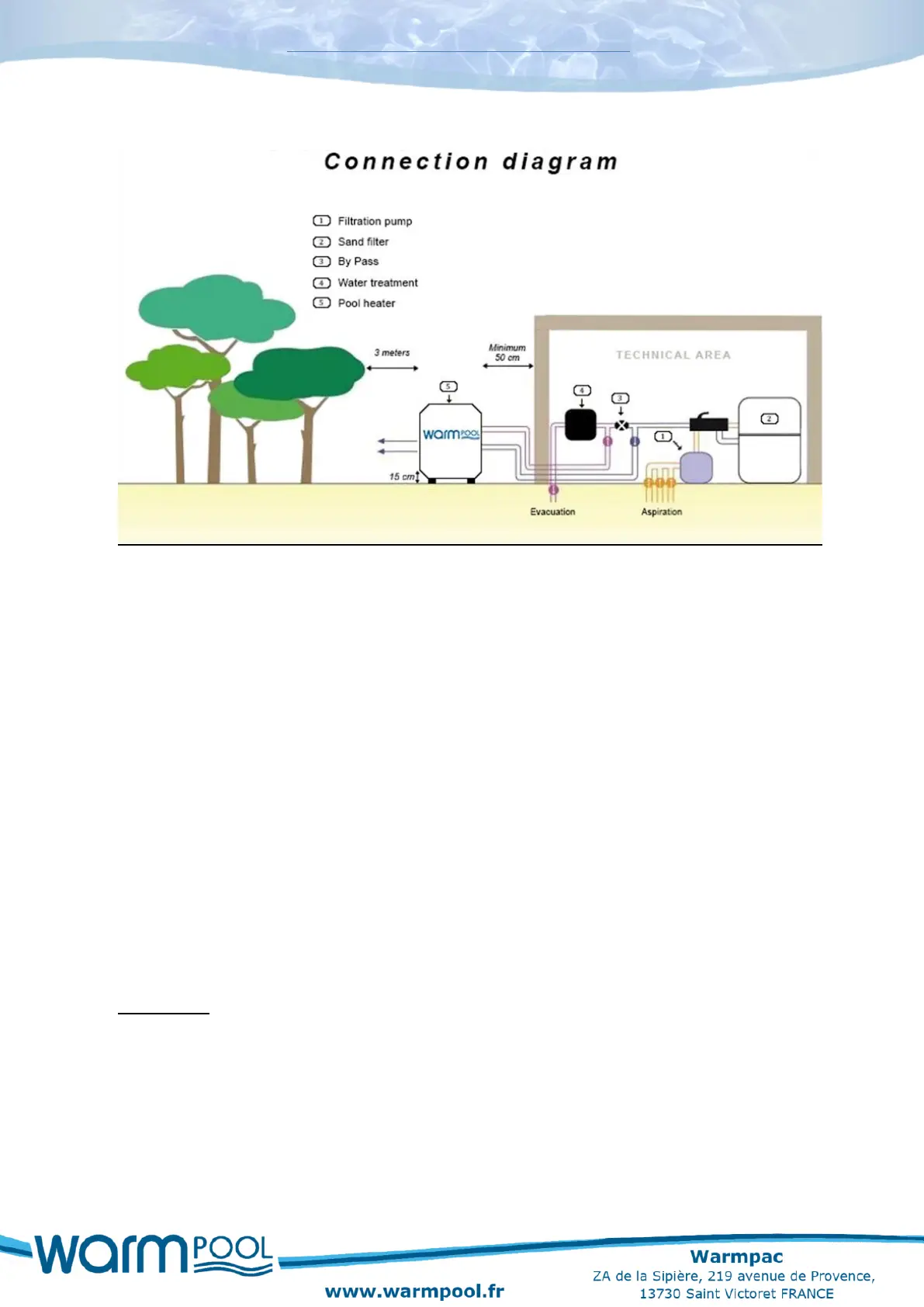

As you can see from the connection diagram, you need to install a BYPASS valve (if you do not already have one) between the filtration system and the water treatment system (or discharge).6

Upstream of this BYPASS, an OUT pipe with a shut-off valve will be connected to the water inlet of the heat pump and a RETURN pipe with a shut-off valve will be connected to the water outlet of the heat pump.6

Use the PVC connectors provided in the accessory kit to connect the hoses to the heat pump. On the pump side, fasten the supplied fittings using Teflon tape to ensure a good seal.6

The heat pump must be powered from a separate D-curve circuit breaker which may be either on the main electrical panel fitted with a differential circuit breaker or on an independent panel connected to the main switchboard, with a differential circuit...7

a) Checking the valves8

The BYPASS valve must be fully open.8

The inlet and outlet water valves must be closed.8

b) Clean the filter8

c) Valve settings8

Open your valves following the order and setting recommended below, and check for water leaks.8

- Set the BYPASS valve to half open,8

- Fully open the water inlet valve of the heat pump,8

- Set the water outlet valve of the heat pump to 1/3.8

At the end of these adjustments, check your sand filter pressure gauge, the pressure should not increase beyond 0.2 bar (the pressure should stay in the green zone).8

Press the ON/OFF button to start the heat pump.8

Important: Leave the machine running for at least 10 minutes before changing the initial valve settings to get a difference between the inlet and outlet water temperatures of between 1 C and 3 C8

Remember to clean your filter every week to ensure the proper operation of not only the filter but also the heat pump.8

Maintenance is mainly about keeping your machine in good condition so that it does not give you any problems.16

Clean the evaporator: Use a water jet, making sure to keep the jet in the direction of the fins, from top to bottom. The evaporator aluminium fins should be cleaned regularly to ensure a good airflow.16

Regularly clear the condensate outlets to prevent the accumulation of water within the chassis. Otherwise, the fan blades may be attacked and damaged by the acidity of the water. This will not affect the correct operation of your machine, but we recom...16

Winterisation is mandatory at the end of the period of use to prevent any damage.16

- Shut off power to the machine at the circuit breaker,16

- Open the By-Pass valve, close the inlet and outlet water valves,16

- Unscrew the inlet and outlet connections of your heat pump,16

- Purge your hydraulic system,16

- Leave about 5 cm between the connections and the machine during the winter season.16

As part of the guarantee, the manufacturer may carry out an on-site service or request the return of the heat pump. Only the manufacturer may make the decision to carry out an on-site service.16

This operation may be covered under the guarantee, depending on the invoice date and the type of fault.16

Outside the guarantee period, or in the event of a failure not covered by the guarantee, the manufacturer may offer an on-site service. The customer must accept a quote in advance.17

No after-sales service interventions will change the guarantee period.17

The manufacturer's guarantee is for 3 years. As well as this parts guarantee, labour costs are included only if the equipment is returned to our workshops. If the heat pump has to be returned, the transport costs are the responsibility of the customer...17

The guarantee may not be honored if:17

Your heat pump has not been installed using best practice, following the recommendations described in this manual.17

Routine maintenance has not been carried out, especially the cleaning of the evaporator and the condensate outlets. There should not be any standing water within the chassis.17

The damage is due to improper installation, bad connections, or an incorrect placement of the installation.17

The damage or repairs are the result of misuse, abuse, improper repairs, unauthorized modifications or third-party equipment faults.17

The damage is due to flooding, wind, fire, lightning, accidents, corrosive atmospheres or other conditions beyond your dealer's control.17

Parts have been replaced by parts that are not supplied or approved by your dealer.17

The damage is to persons or property of any kind whatsoever, including any direct, indirect, special or consequential damage resulting from the use or loss of use of the product.17

Limitation :18

This guarantee is exclusive and replaces all other implied warranties of merchantability or fitness for a particular purpose and any other explicit or implied guarantees. The indemnifications provided for in this guarantee are exclusive and are Warmpa...18

- Do not touch the fan when it is running, it could hurt you,18

- Keep children well clear of the equipment,18

- Regularly check the power supply and connection cables of your heat pump. If you have any doubt, contact your installer,18

- For after-sales service, you must use the original manufacturer parts.18
