WARN INDUSTRIES PAGE 4 70557A2

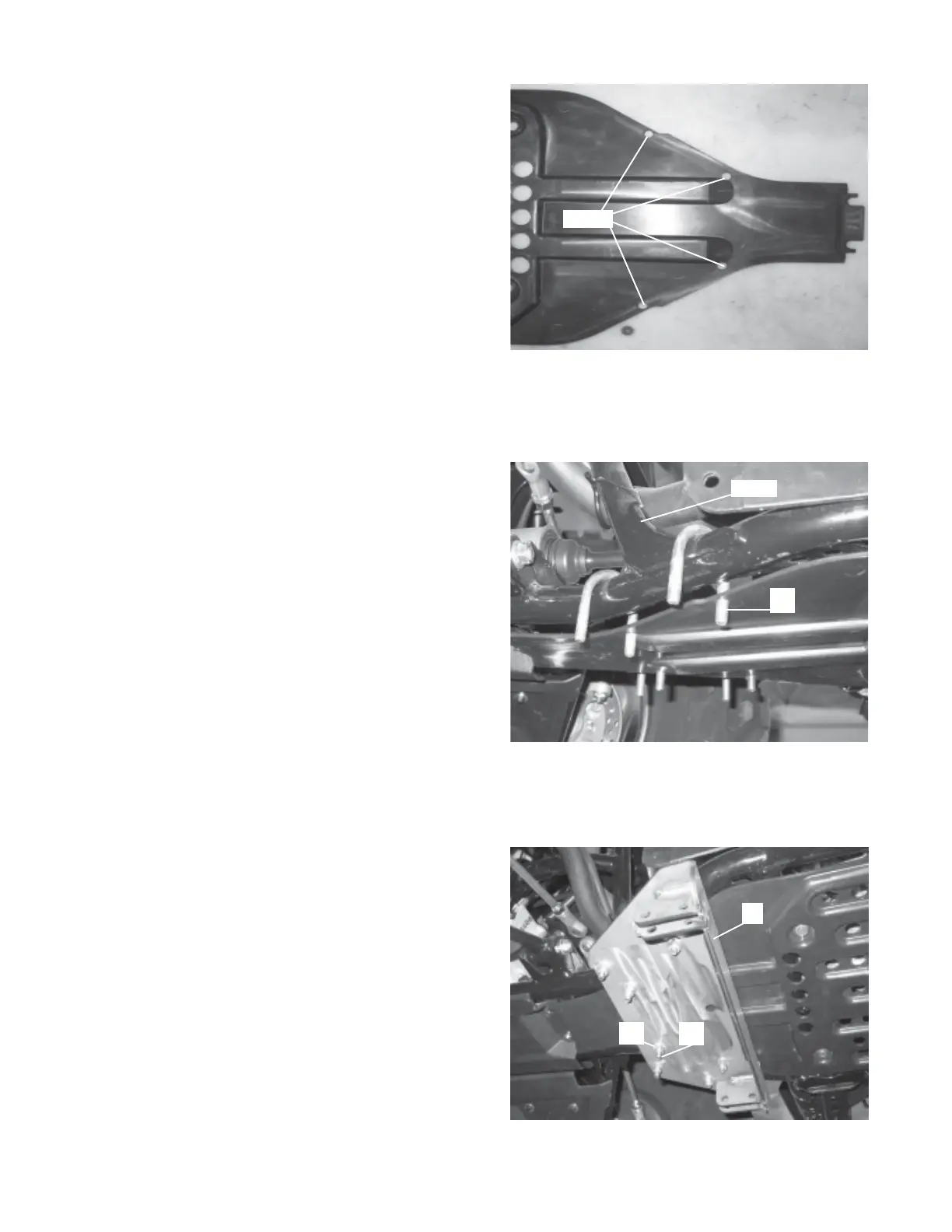

Figure 4
Figure 5
INSTALLATION CONT.
Holes
Gusset
B1
Figure 6
A1
B2
B3
4. Use the 3/8” drill to make the four holes in the skid
plate, Figure 4.
5. Reattach the skid plate to the vehicle. Place the
supplied u-bolts (B1) around the tubes and through
the drilled holes in the skid plate, Figure 5.
6. Fasten the plow mount to the vehicle with the u-
bolts, flat washers (B2) and lock nuts (B3), Figure 6.
Align the plow mount with the bike. Trim the skid
plate holes if necessary. Tighten the u-bolts to 10lb
ft (14 N-m).
