7. Remove the aluminum skid plate from the
vehicle.
8. Place the plow mount on the skid plate with the
bent portion of the mount facing the back of the
skid plate as shown in figure 7.
9. Center the mount side-to-side on the skid plate,
and measure the distance from the back tube
notches to the mount as shown in figures 8-9.
10. Place the mount 21.8" from the tube notches.
Mark the plow mount holes on the skid plate.
11. Drill the marked holes in the skid plate using a 3/
8" diameter drill.
12. Mount the skid plate on the vehicle as directed in
the skid plate installation instructions.
13. Refer to steps 5-6 for plow mount attachment
with the exception that the flat washers will not be
used on the rear u-bolts.
ADDITIONAL INSTALLATION INSTRUCTIONS FOR THE KAWASAKI
ACCESSORY ALUMINUM SKID PLATE:

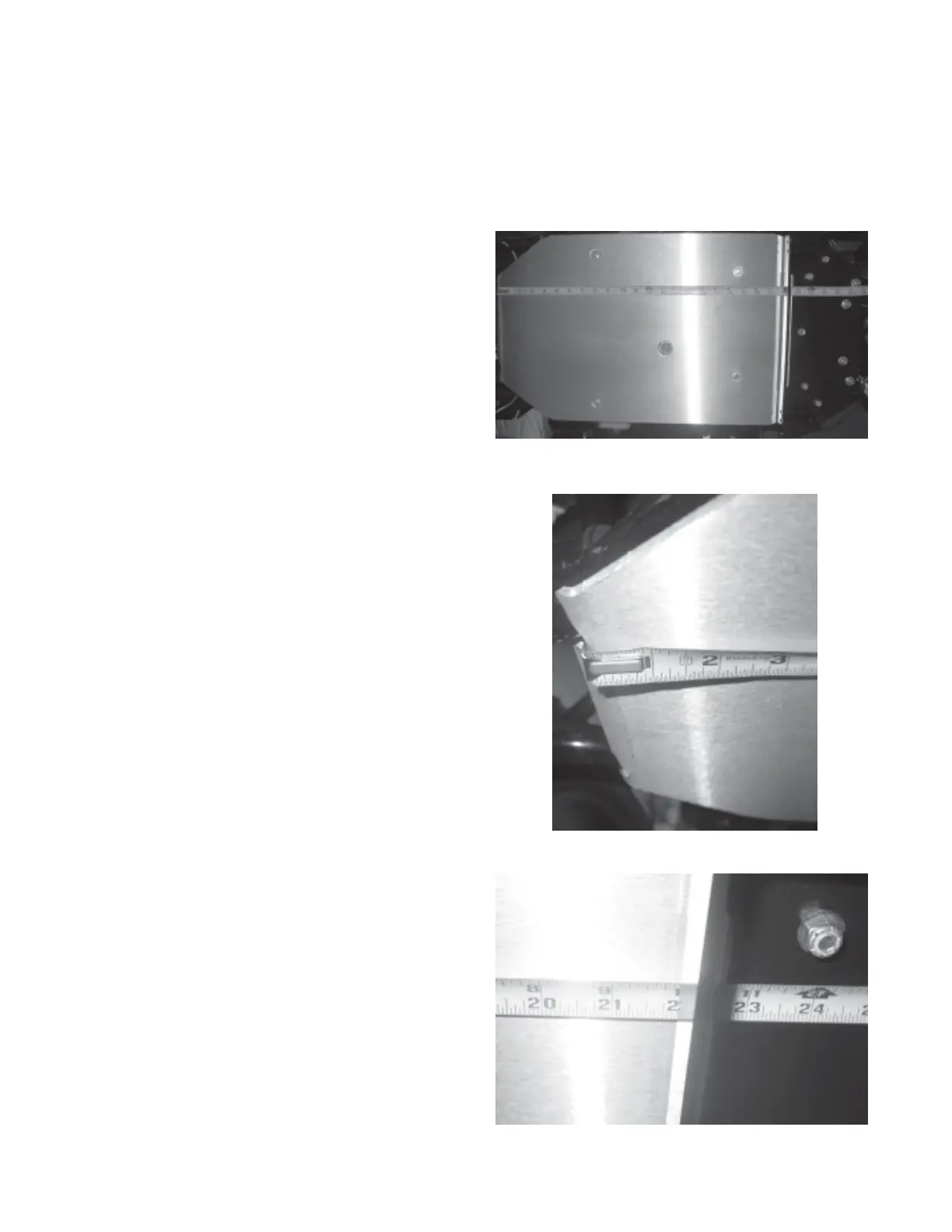

Figure 7
Figure 8
Figure 9
