Warn 70558 - Installation Procedure; Initial Skid Plate and Mount Placement

WARN INDUSTRIES PAGE 3 70557A2
Figure 1
Figure 2

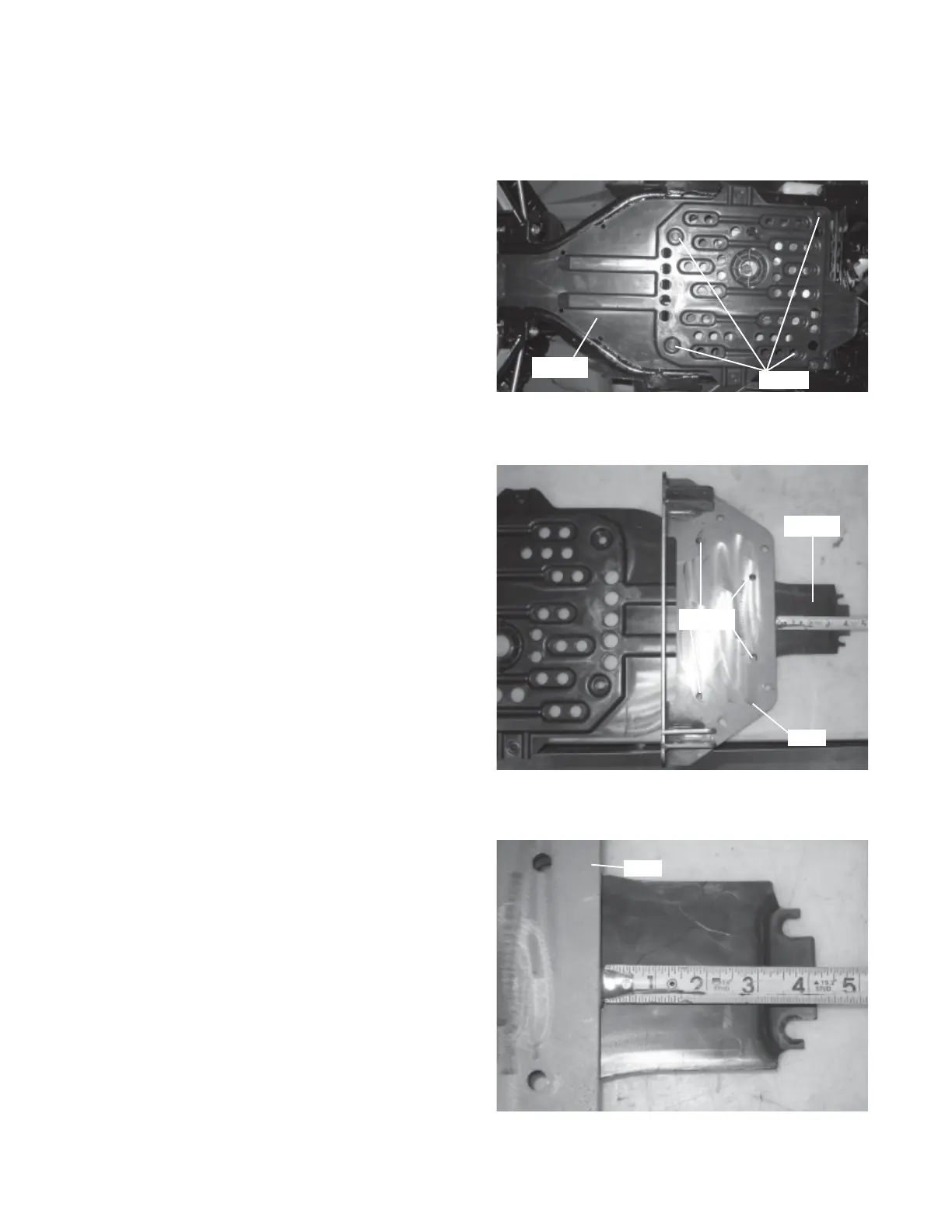

IV. INSTALLATION
1. Remove the four skid plate bolts, Figure 1.
Loosen the front two skid plate bolts, and remove
the skid plate from the vehicle.
2. Place the plow mount (A1) on the skid plate,
Figure 2.
3. Center the plow mount (A1) and place it as
shown, Figure 3. Mark the four hole locations
from the plow mount onto the skid plate, Figure 2.
Figure 3
Remove
Skid Plate
Skid Plate
A1
A1
Holes
