IMPORTANT: This kit requires either a Polaris or WARN winch mount to be installed. It cannot be mounted if a
winch mount has not been installed on the vehicle

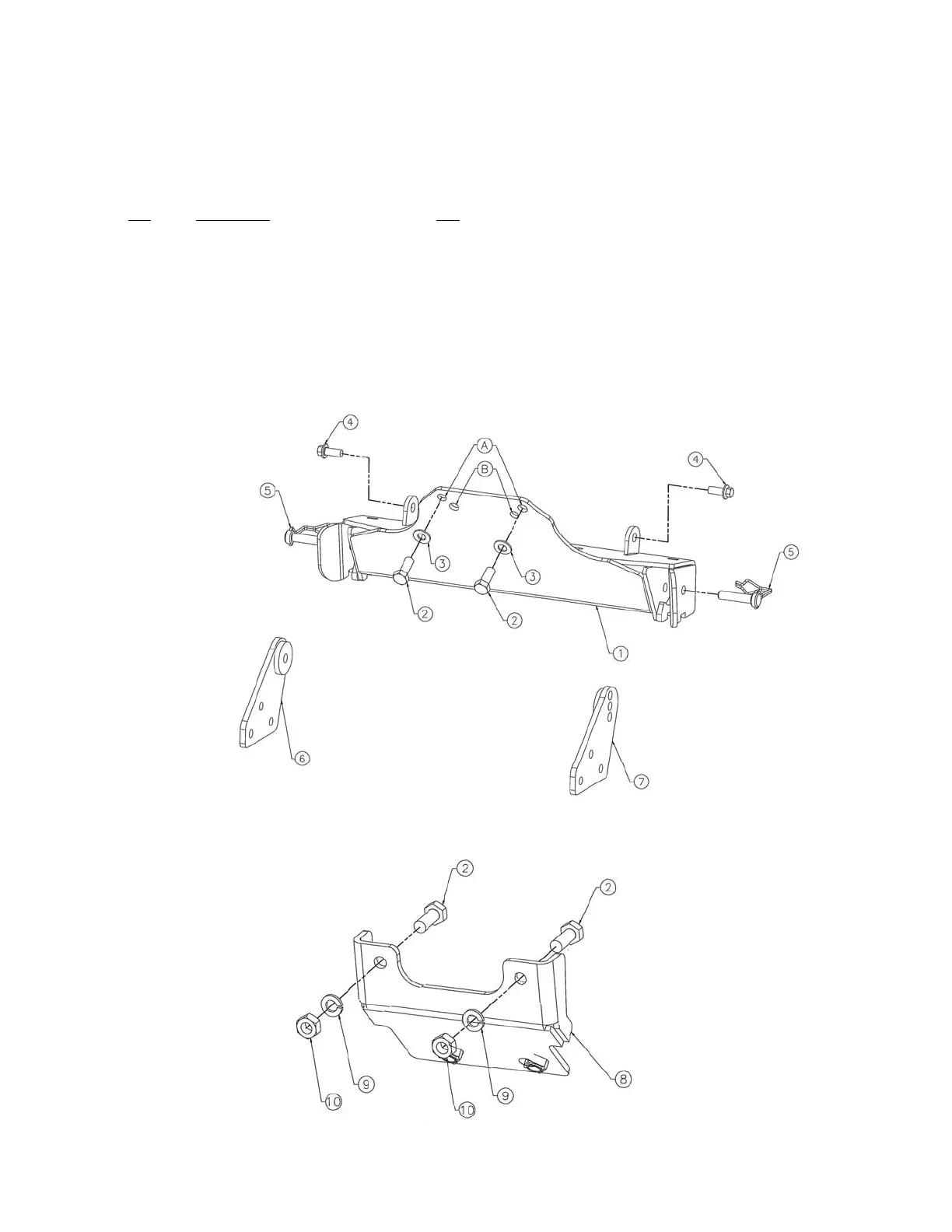

III. PARTS LIST
Ref Description Qty
1 Plow Mount 1
2 M10-1.50 x 25mm Hex Bolts 4
3 Flat Washer 3/8" 2
4 Capscrew M8-1.25 x 20mm 2
5 Plow Retaining Pin 2
6 Plow Tab RH 1
7 Plow Tab LH 1
8 WARN Winch Mount Adapter Brkt. 1
9 Lock Washer M10 2
10 Nut M10x1.50
Use Holes (A) if mounted with a Polaris Brand Winch Mount.
Use Holes (B) if mounted with a WARN Brand Winch Mount.
