EF;6GHIJ6KFGLIMNFLMG6MFMO6 E6GPJ
J,($#%T"#$%,89%U",3(,5
K*4&(9%J(&9'4$^#%E*(",7%M'5+*(%_*(*-%
M&$*- If product has no serial number, record month and year of purchase instead.
M&$*- Some parts are listed and shown for illustration purposes only, and are not available
individually as replacement parts. Specify UPC 193175422552 when ordering parts.

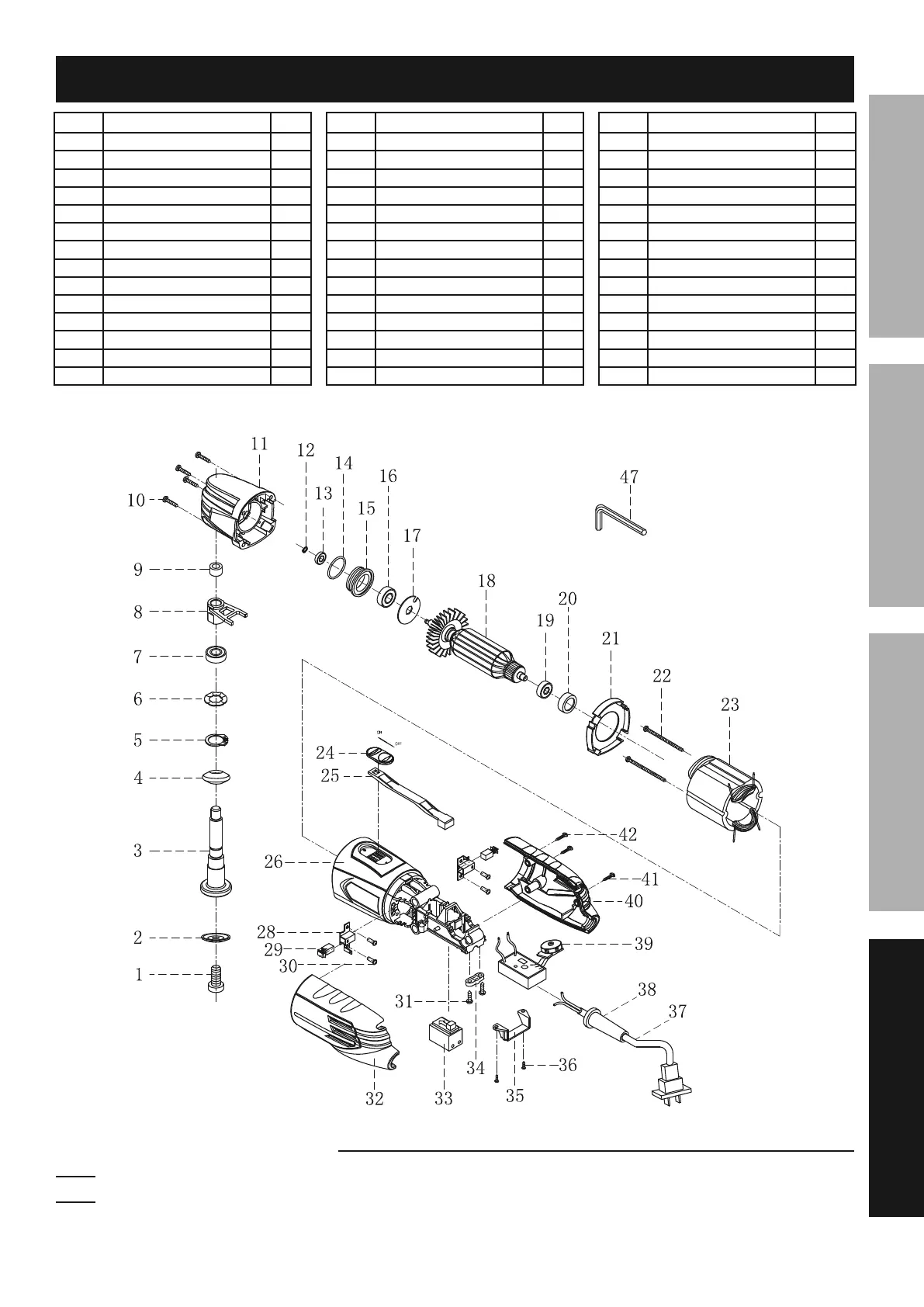

J,($ U*#4("/$"&8 k$V
1 Cap Screw M8 x 12 1
2 Flange 1
3 Spindle 1
4 Rubber Casing 1
5 Circlip 1
6 Spring Washer 1
7 Bearing 6000 1
8 Block 1
9 Bushing 1
10 Screw ST4.0 x 25 4
11 Front Housing 1
12 Circlip 1
13 Bearing 625 1
14 Washer 1
J,($ U*#4("/$"&8 k$V
15 Cover 1
16 Bearing 608 1
17 Washer 1
18 Armature 1
19 Bearing 607 1
20 Bushing 1
21 Guide Ring 1
22 Screw ST4.0 x 50 2
23 Stator 1
24 Power Switch 1
25 Link Plate 1
26 Middle Housing 1
28 Brush Holder 2
29 Carbon Brush 2
J,($ U*#4("/$"&8 k$V
30 Rivet 4
31 Screw ST4.0 x 12 2
32 Rear Housing (left) 1
33 Internal Switch 1
34 Brace 1
35 Clip 1
36 Screw ST3.0 x 8 2
37 Power Cord 1
38 Cable Sheath 1
39 Speed Control Dial 1
40 Rear Housing (right) 1
41 Screw ST4.0 x 22 1
42 Screw ST4.0 x 32 2
47 Hex Key 1
