Page 11For technical questions, please call 1-888-866-5797.Item 58523
SAFETYOPERATIONMAINTENANCE SETUP
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM
IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR
MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS
QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE
ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY
STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND
LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY
ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS
THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.

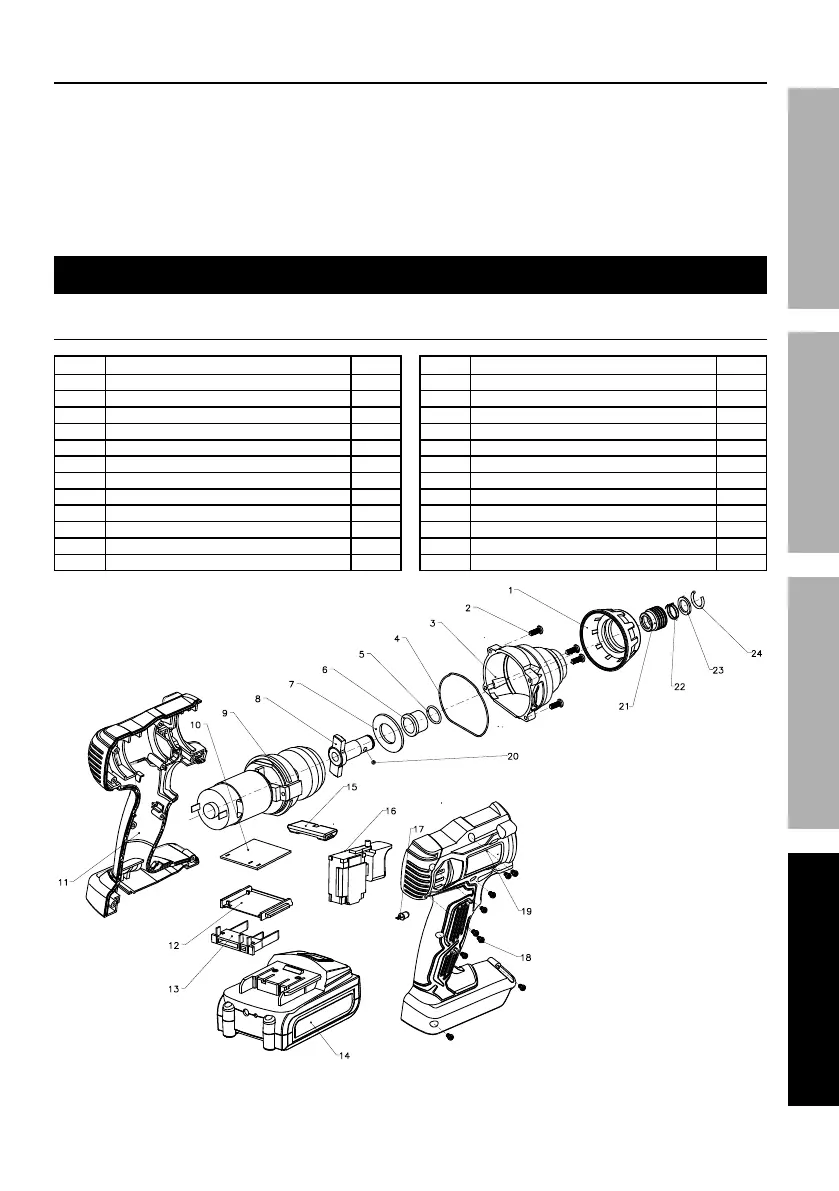

Parts List and Diagram
Parts List
Part Description Qty
1 Front Cover 1
2 Tapping Screw ST2.9*20 4
3 Front Housing 1
4 Oil Seal 1
5 Sealing Ring 1
6 Spindle Bushing 1
7 Shaft Washer 1
8 Impact Shaft Component 1
9 Impact Assembly With Motor 1
10 Circuit board 1
11 Left Housing 1
12 Holder of Circuit board 1
Part Description Qty
13 Connector For Battery Pack 1
14 Battery Pack 1
15 Push Rod 1
16 Direction Switch 1
17 LED Light 1
18 Tapping Screw ST2.9*16 13
19 Right Housing 1
20 Steel Ball Φ3 3
21 Lock Sleeve 1
22 Pressure Spring 1
23 Washer 1
24 Circlip 1
To Next Page
