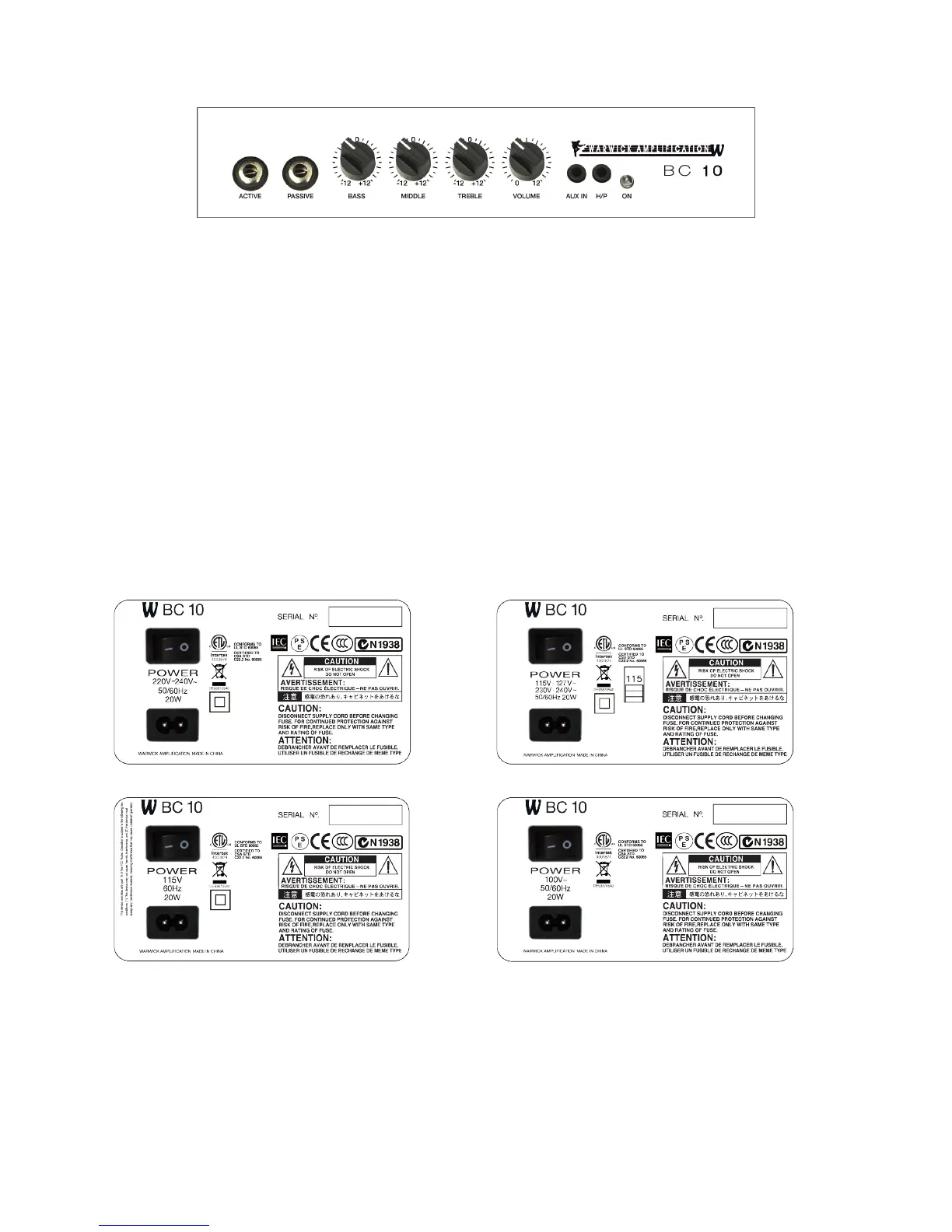

FRONT PANEL CONTROLS
ACTIVE – Input to plug in instrument using shielded guitar cable. This input is low sensitivity to suit the output
from instruments with active electronics.
PASSIVE – Input to plug in instrument using shielded guitar cable. This input is high sensitivity to suit the output
from instruments with passive electronics.
VOLUME – Controls the sound level of your instrument. Adjust this for your preferred playing loudness.
BASS – Shelving Bass Control gives +/- 12 dB gain at 60 Hz. The control is flat at the center position.
MIDDLE – Peaking Middle Control gives +/- 12 dB gain at 800 Hz. The control is at at the center position.
TREBLE – Shelving Treble Control gives +/- 12 dB gain at 10 kHz. The control is flat at the center position.
AUX IN – Input to connect external sound source. This can be used for plugging a CD, tape or MP3 player into
the amp or for connecting an external preamp.
HEADPHONE – For practice use in situations when speakers are too loud. Dedicated Stereo Headphone amp where the
aux input will be played back in stereo and the instrument signal will be reproduced in the center of the
stereo field.
REAR PANEL CONTROLS
MAINS IN AC – Figure-eight socket for connection to the mains power supply.
POWER – On/off switch for main power. For your safety, remember to connect power cord to the amplifier first,
then to the AC outlet. After this is done, turn this switch on. It works backwards when you want
disconnect unit – firstly turn switch off, then disconnect cord from the AC outlet and finally disconnect
cord from amplifier.
9
W BC 10 230 V
European Voltage
W BC 10 115 V
USA / Canada Voltage
W BC 10 DV 115/230 V
Brazil Voltage
W BC 10 100 V
Japan Voltage
