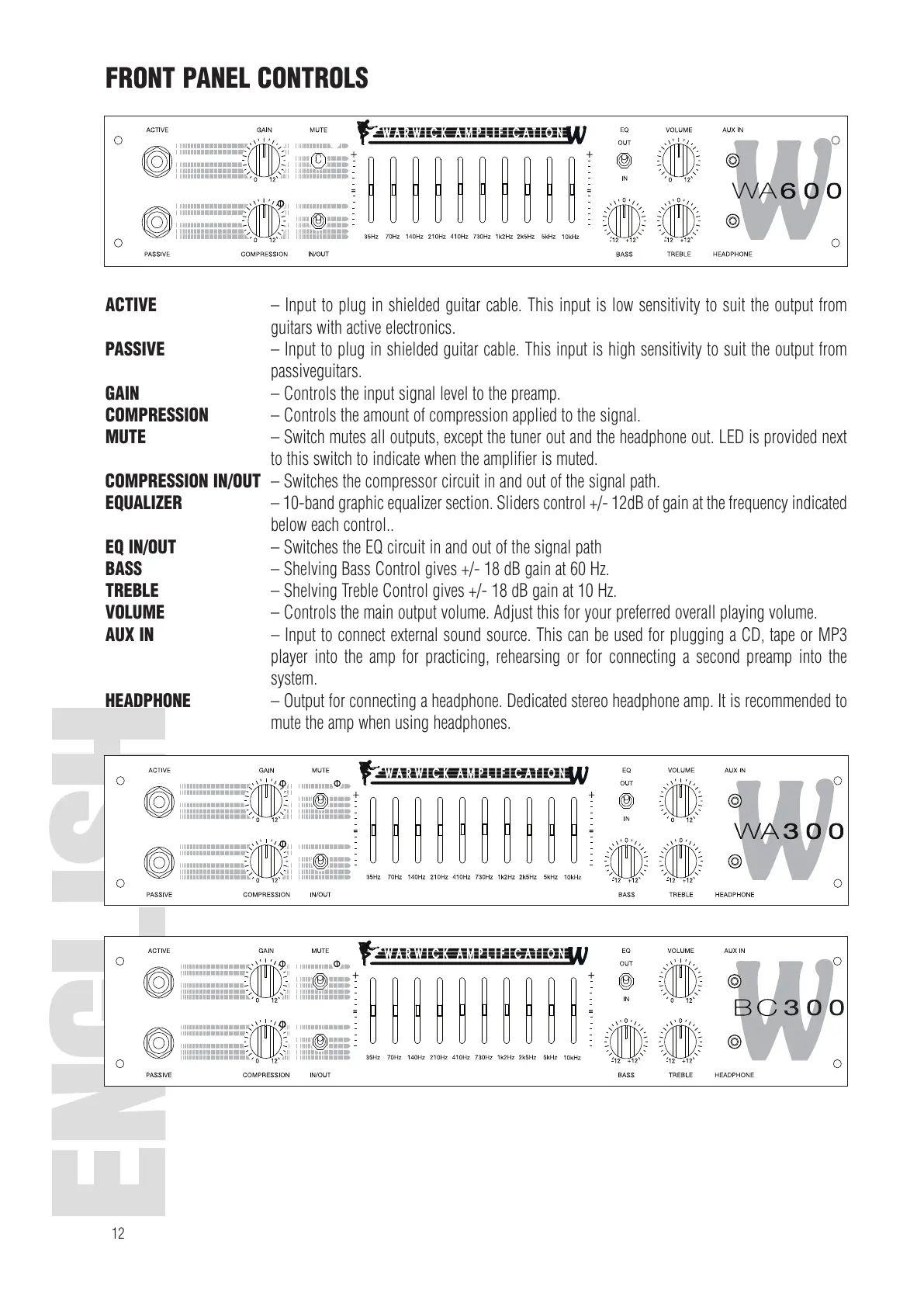

FRONT PANEL CONTROLS
ACTIVE – Input to plug in shielded guitar cable. This input is low sensitivity to suit the output from
guitars with active electronics.
PASSIVE – Input to plug in shielded guitar cable. This input is high sensitivity to suit the output from
passiveguitars.
GAIN – Controls the input signal level to the preamp.
COMPRESSION – Controls the amount of compression applied to the signal.
MUTE – S
witch mutes all outputs, except the tuner out and the headphone out. LED is provided next
to this switch to indicate when the amplifier is muted.
COMPRESSION IN/OUT – Switches the compressor circuit in and out of the signal path.
EQUALIZER – 10-band graphic equalizer section. Sliders control +/- 12dB of gain at the frequency indicated
below each control..
EQ IN/OUT – Switches the EQ circuit in and out of t
he signal path
BASS – Shelving Bass Control gives +/- 18 dB gain at 60 Hz.
TREBLE – Shelving Treble Control gives +/- 18 dB gain at 10 Hz.
VOLUME – Controls the main output volume. Adjust this for your preferred overall playing volume.
AUX IN – Input to connect external sound source. This can be used for plugging a CD, tape or MP3
player into the amp for practicing, rehearsing or for connecting a second p
reamp into the
system.
HEADPHONE – Output for connecting a headphone. Dedicated stereo headphone amp. It is recommended to
mute the amp when using headphones.
