Installation Guide
Need Help? Contact Customer Care at (732) 967-9888
Replacing the Pool Blaster® PRO Series Motor Box
3

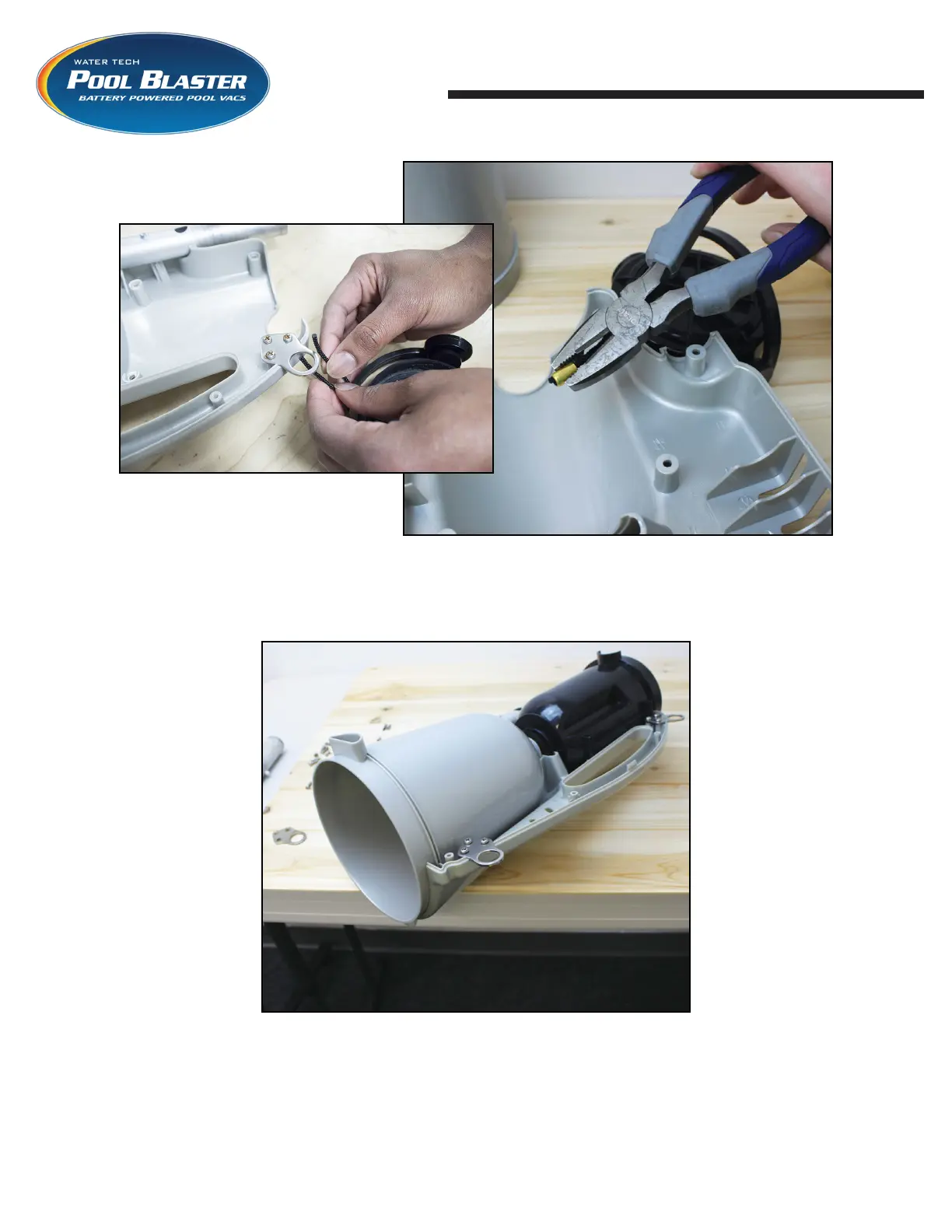

STEP 5: Slide metal clip o
new lanyard. Remove new
motor box cap and attached
lanyard from new motor box. String new lanyard through metal ring (as shown).
Slide clip over both ends of lanyard. Clamp clip with pliers.
STEP 6: Place the shell half with the pole
attachment on workbench with funnel opening
facing towards you (shell should be slightly o
workbench as shown in picture). Place new motor
box in shell with ON/OFF button opposite of pole
attachment. Place funnel into shell grooves.
