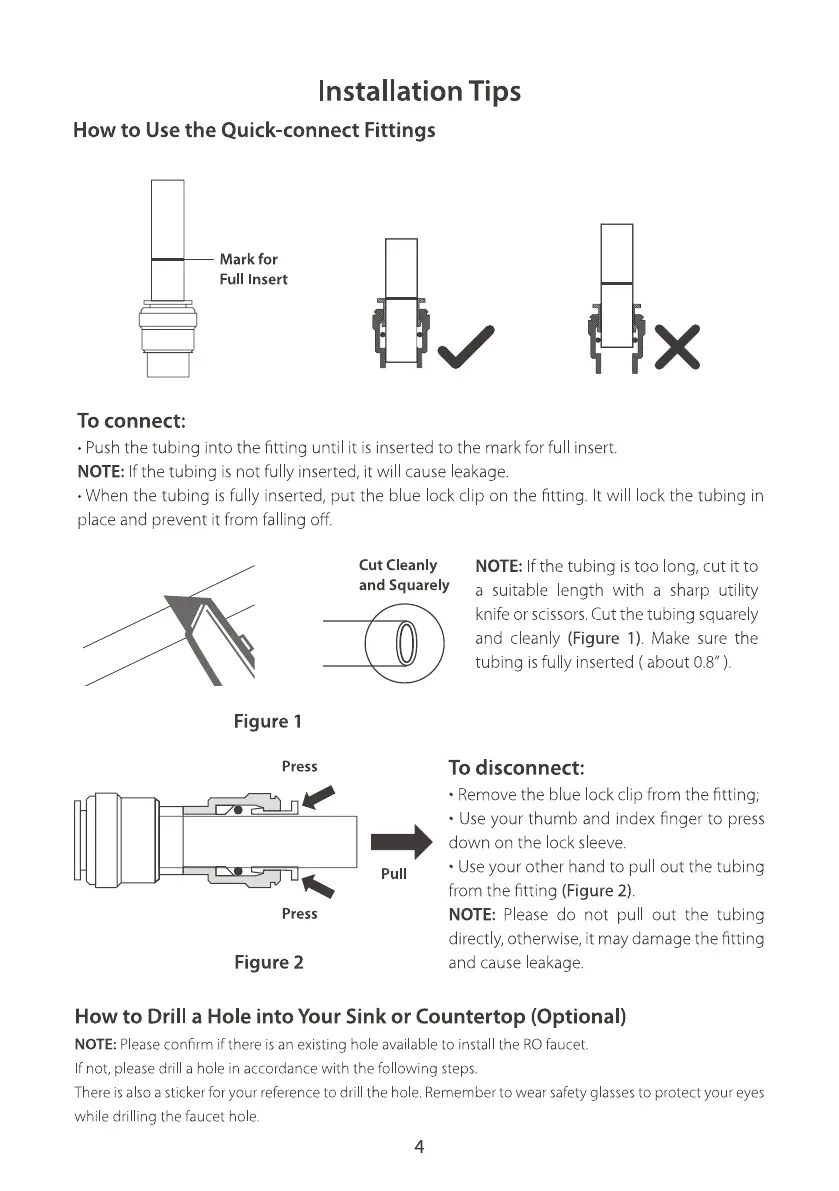

Installation Tips
How to Use the Quick-connect Fittings
Mark for
Full Insert
To connect:
• Push the tubing into the fitting until it is inserted to the mark for full insert.
NOTE: Ifthe tubing is not fully inserted, it will cause leakage.
•When the tubing isful y inserted, put the blue lock clip on the fitting. t will lock the tubing in
place and prevent it from falling off.
Cut Cleanly
and Squarely
NOTE: Ifthe tubing is too long, cut it to
a suitable length with a sharp utility
knife or scissors.Cut the tubing squarey
and cleanly (Figure 1). Make sure the
tubing is ful y inserted ( about 0.8" ).
Figure 1
Press
Press
Figure 2
Pull
To disconnect:
• Remove the blue lock clip from the fitting;
• Use your thumb and index finger to press
down on the ock sleeve.
• Useyour other hand to pul out the tubing
from the fitting (Figure 2).
NOTE: Please do not pull out the tubing
directly, otherwise, it may damage the fitting
and cause leakage.
How to Drill a Hole into Your Sink or Countertop (Optional)
NOTE:Pleaseconfirm ifthere isan existing hole available to install the ROfaucet.
f not, p easedrill a hole in accordancewith the following steps.
Thereisalsoa stickerfor your referenceto drill the hole.Rememberto wear safetyglassesto protect your eyes
while drilling the faucet hole.
4
