Step 1. Selecting the System Location
1. This filter system is designed for installation under a sink. It can however, be mounted
anywhere within 20 feet of the faucet, such as the basement or adjoining utility room. Keep
in mind that filter housings will need periodic replacement and that easy access must be
maintained. Do not install in a location with high humidity, direct sun or a direct source of
heat.

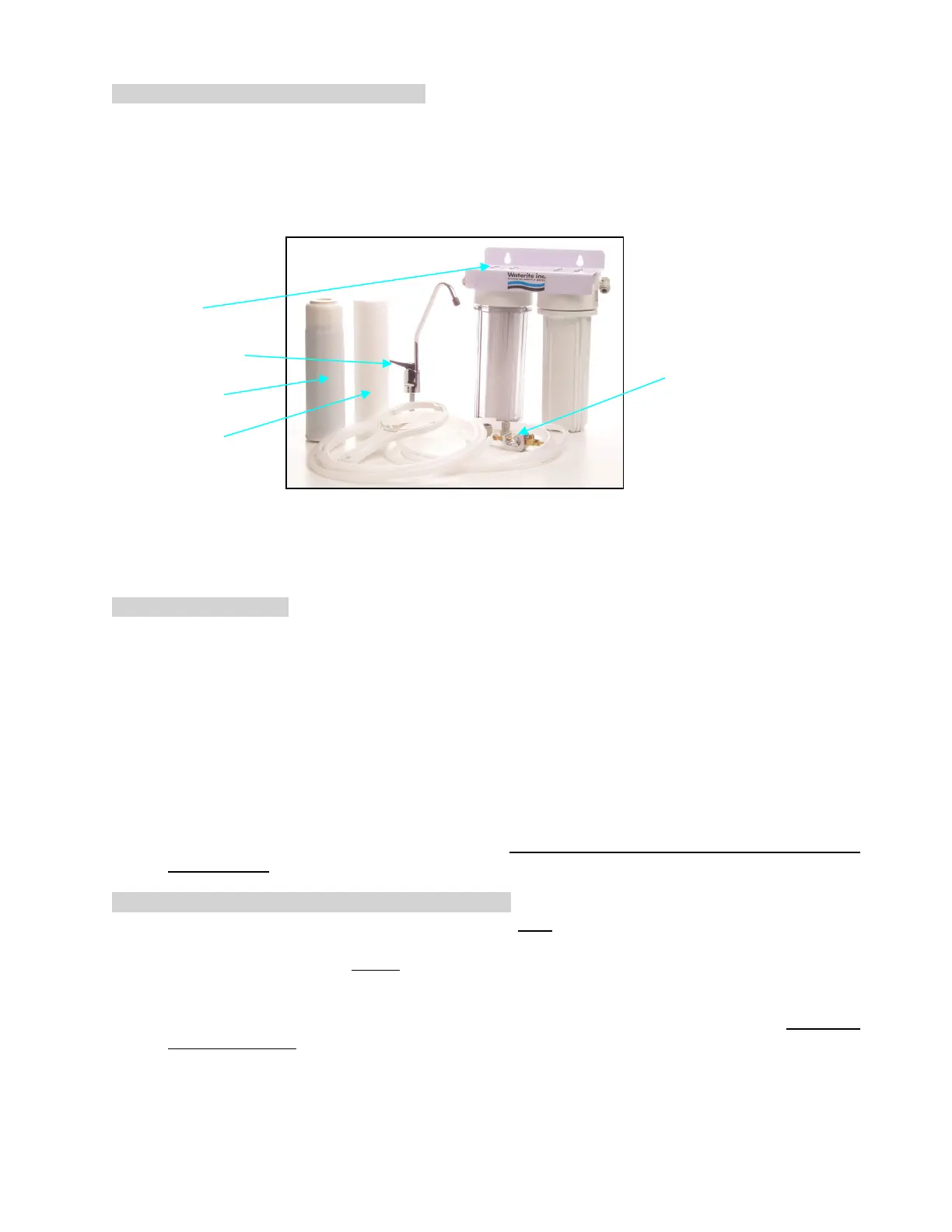

Figure 1.
Mounting bracket
Faucet and mounting hdwe
Supply pipe saddle
Carbon filter cartridge (tube attached)
Sediment filter cartridge
Keep in mind that you may install a tube tee on the line to the faucet to connect icemakers
or other faucets to the system. See your dealer for parts and details.
Step 2. Getting Ready
1. Clear working area. Unpack all components and check for visual damage. Ensure all listed
components are included.
2. Inspect the cold water supply line and the condition of the pipe. The SV-8 saddle included
is intended for standard ½” copper plumbing pipe. If you have a polybutylene, polypropylene,
iron or PVC supply line, you will need to consult your plumber or plumbing supply store to
purchase an appropriate cold water connection.
3. You will need the following tools: An electric drill, a ½” carbide bit, a ¼” carbide bit, a 1/8”
carbide bit, a pencil, a small adjustable (crescent) wrench, a sharp knife (X-Acto type knife
is best), Teflon plumbing tape, adjustable pliers, a rat-tail file, a center punch, a medium flat
head screwdriver, a small household funnel. Always wear eye protection when using an
electric drill.
Step 3. Install the Cold Water Supply Pipe Saddle
1. Turn the water supply line valve to your home OFF.
2. Place the saddle on the COLD water supply line in a place that will not interfere with normal
access to the installation area but within easy reach of the filter unit. Thread the brass
mounting screw through the threaded hole opposite the valve and insert the pipe holding bar,
matching the bar contour with your supply pipe size. Snug firmly but DO NOT
OVERTIGHTEN. Turn the ‘T’ valve stem on the saddle clockwise until the supply pipe is
pierced and the valve is fully closed. Your pipe saddle valve may have the poly tube factory
pre-attached. If the poly tube is not pre-attached, connect the white ¼” tube to the saddle
valve using the compression nut, plastic sleeve (ferule) and tube insert. Snug the
