11

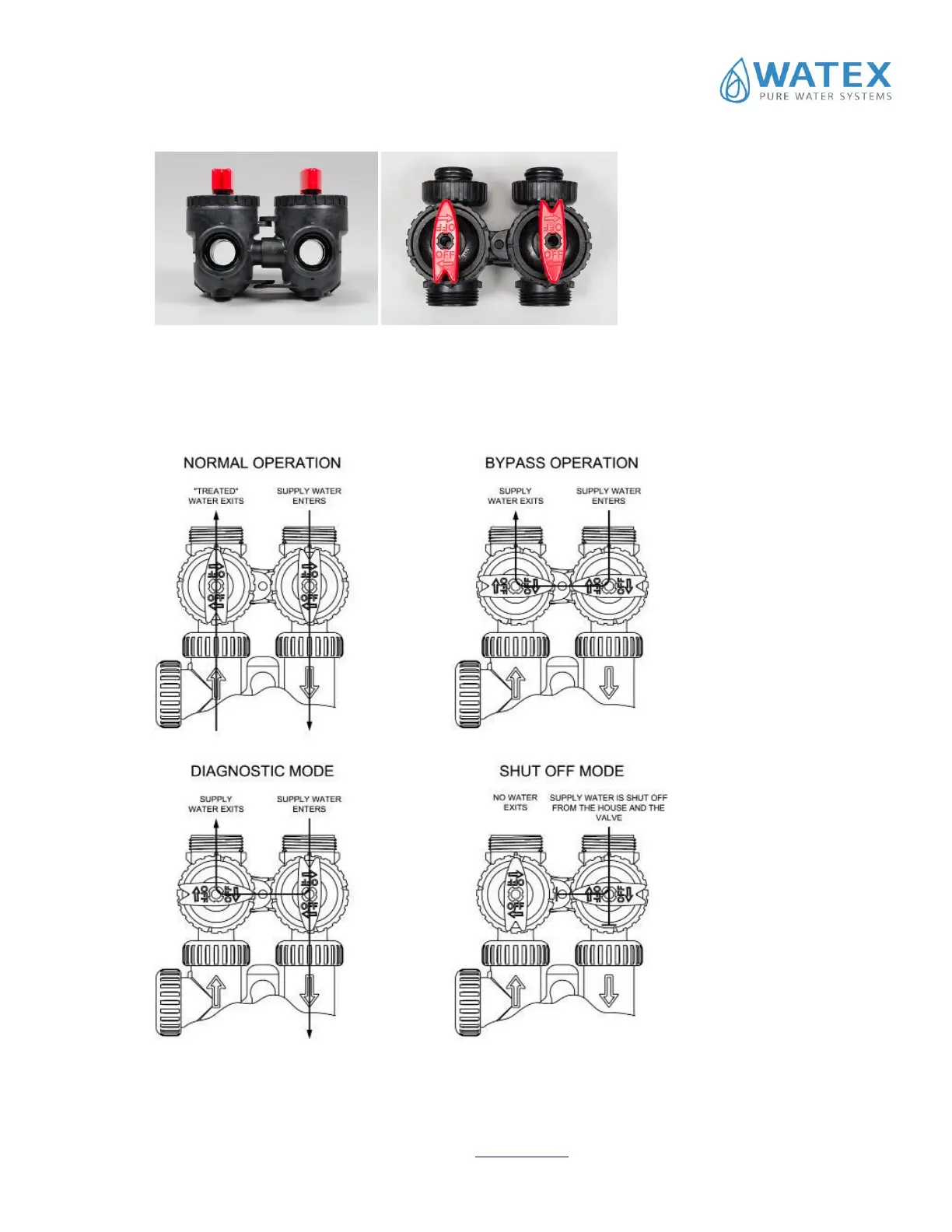

Bypass (option)
• Directional shut-off arrows for flow: Normal, Bypass, Diagnostic mode, Shut-off mode.
• Radial seals allow side-to-side and up/down minor plumbing misalignments, connections need only hand tightening.
• One internally lubricated O-ring on rotor creates less friction.
Bypass Valve Operation
