8 Seven/Relay Workbench Assembly | INS-SWORKBENCH
Worksurface
A

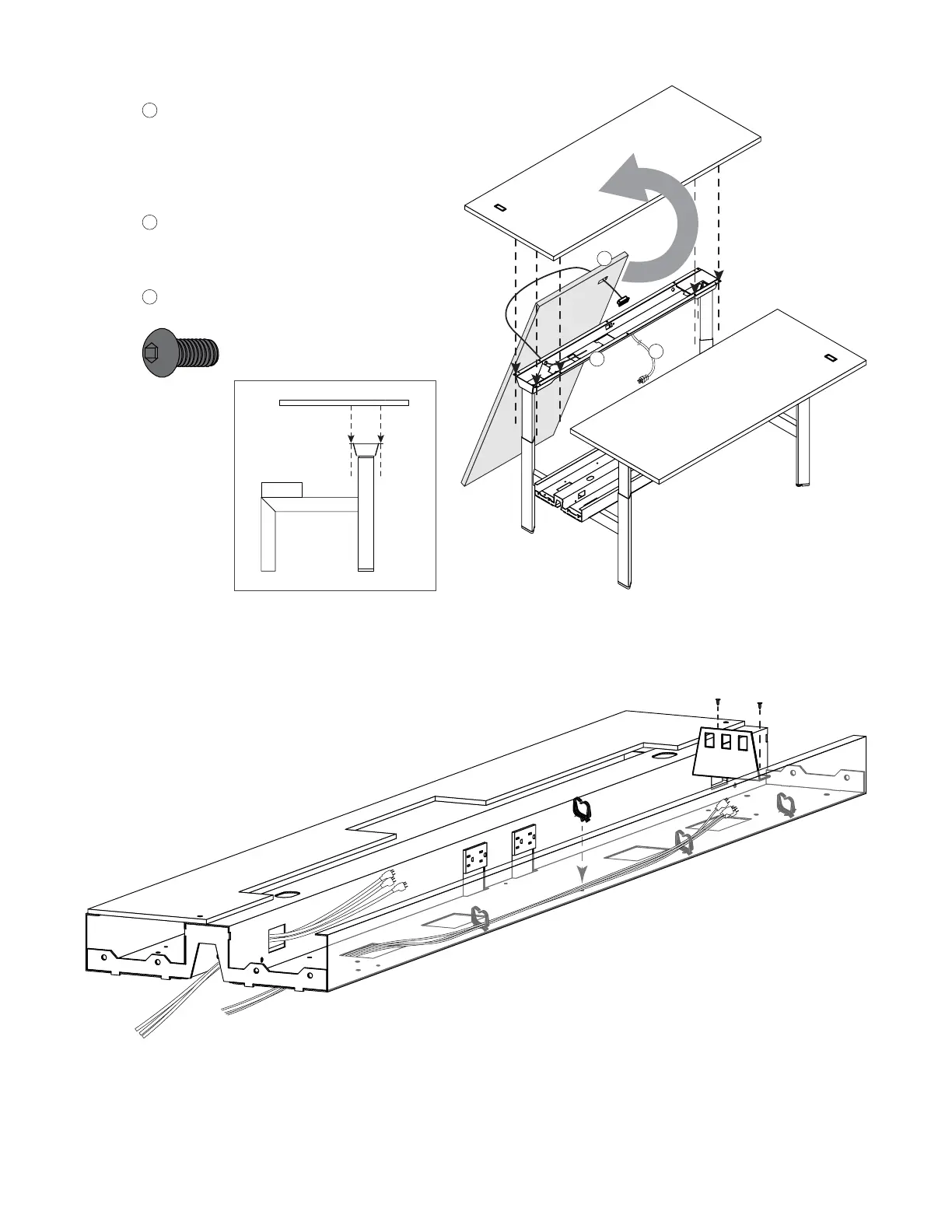

With Worksurface leaning against rail, feed the
switch cord through the surface, and press into
the hole. Feed cord through the round support rail
cutout and plug into the PS2 port of the Control
Box.
B
Plug in the control box power cord to raceway
receptacle. Raise the legs to facilitate installation of
the surface.
C
Lift, align and secure the worksurface with
¼-20x⅜” screws (x10).
Data Plate
Run the data line and install the telecom plate with
panel fasteners to the bottom of the Raceway.
Note — Data cutouts are
sized to fit keystone-style
inserts and are compatible
with Leviton, Panduit, and
other similar fittings.
9.
10.
B
A
A
