WATT Brooklyn - Wiring and Connectors; Standard Connector Pinout; Product Identification

5
5. Wiring

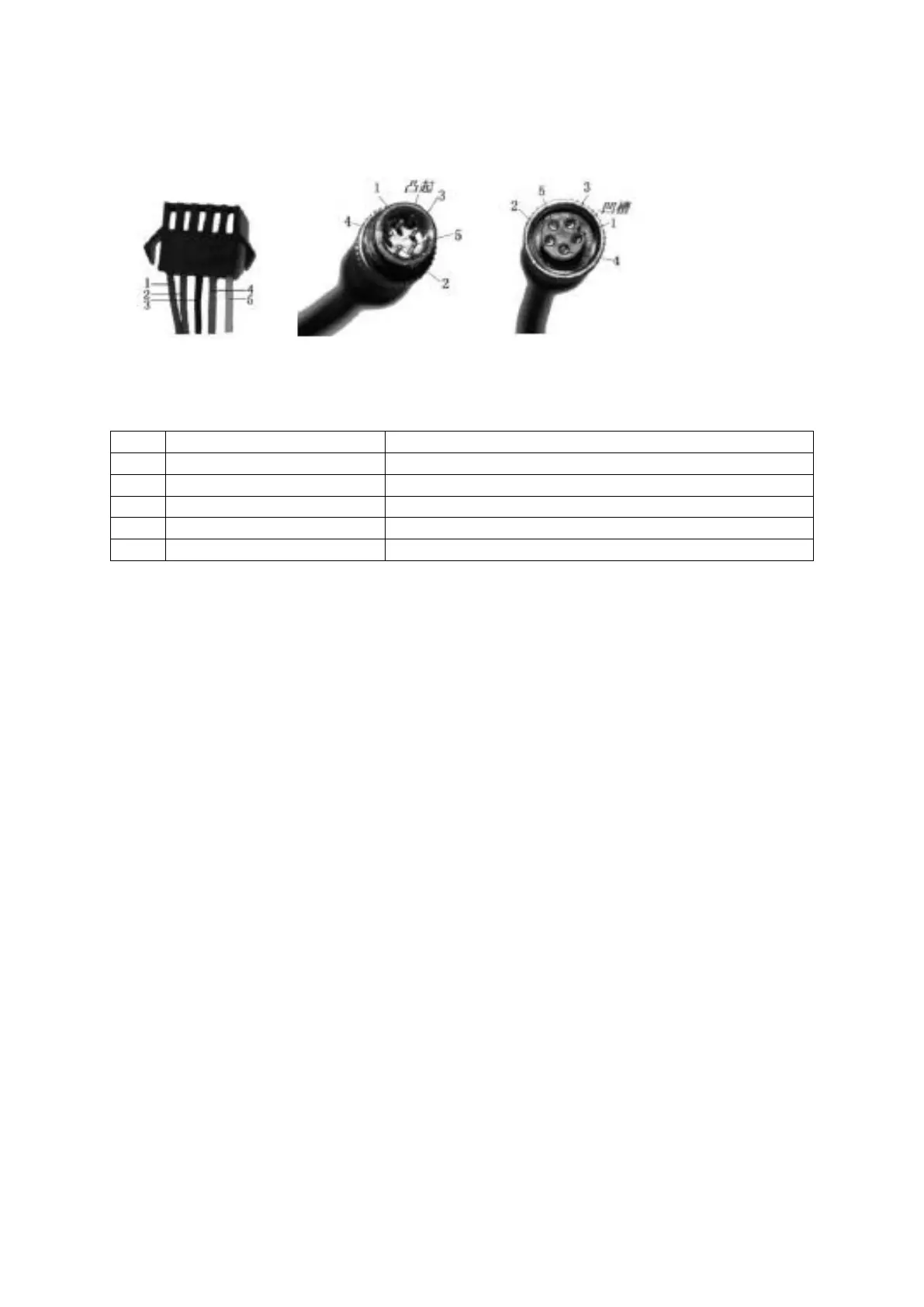

Terminal Male Connector Female Connector
5.2 Order of standard connectors
Num.
Wire color
Function
1
Red (VCC)
Power cable display
2
Blue (K)
Power cable controller
3
Black (GND)
GND
4
Green (RX)
Data in
5
Yellow (TX)
Data from
6. Product code
The product code is usually on the back of the screen in two rows:
Row 1: 500101201.
5001 indicates the customer code
012 indicates the article code
01 indicates the version number
Row 2: 2016-07-1301
2016-07 indicates the production date
1301 indicates the default software version of the display
