WB-UPS-1100/1500/2000 Owner’s Manual

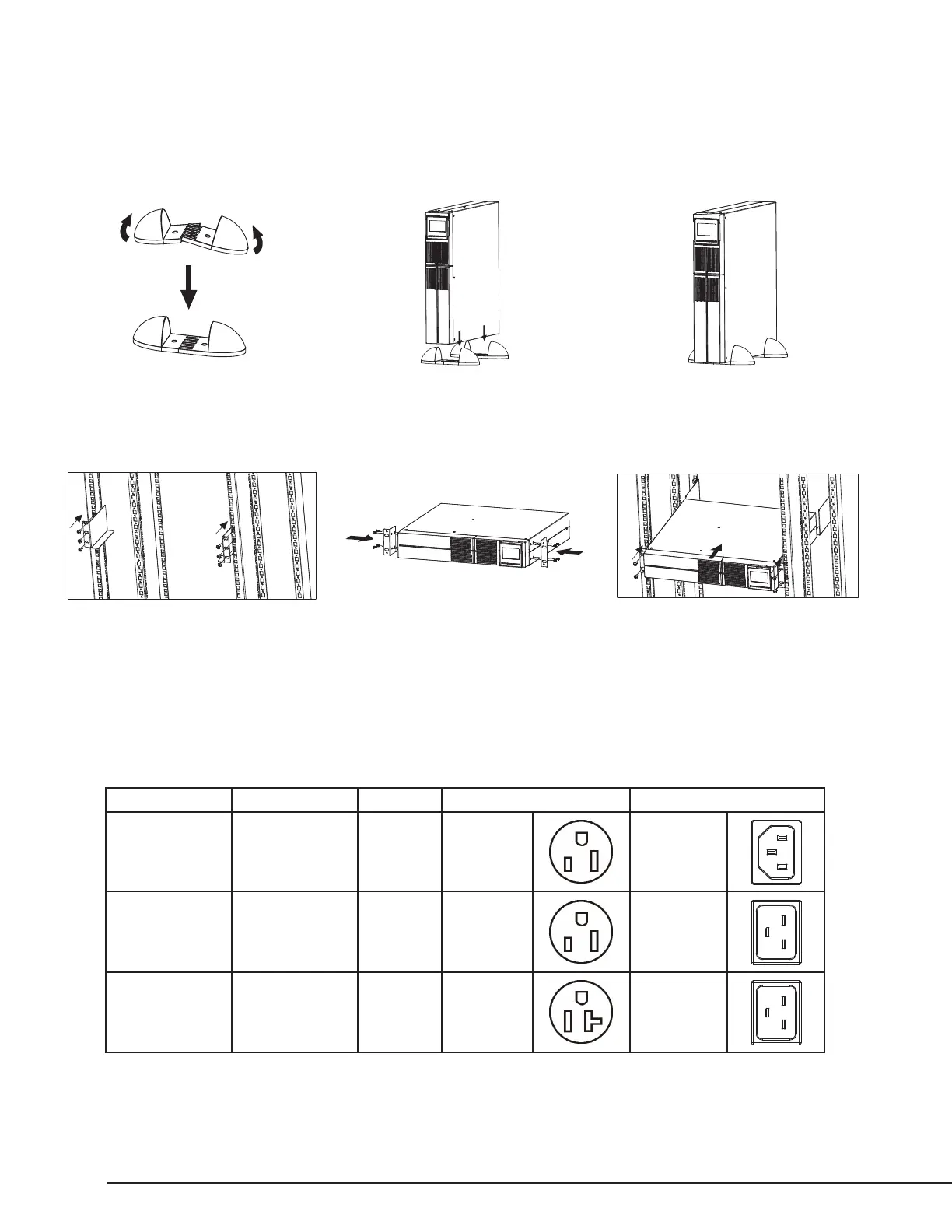

MOUNTING OPTIONS
The WB-UPS is designed for stand-alone applications and also for mounting in standard 19” equipment racks.
Stand-alone Tower
Step 1 Step 2 Step 3
Rack Mounting
Step 1 Step 2 Step 3
Attach support brackets at the back of the
rack.
Attach the rack ears to the UPS. Mount the UPS in the rack with the rear of
the unit resting on the back brackets.
POWERING THE UPS
The power outlet for the UPS should be on a dedicated circuit for the best performance. The chart lists the power requirements and outlet required
for each UPS model.
Model Voltage Amperage Outlet Type Required Power Cord Inlet
WB-UPS-1100-8 120V AC@60 Hz 15A NEMA 5-15r IEC C14
RS232
EPO
INTELLIGENT SLOT
INPUT
PROGRAMMABLE
OUTLETS(P1)
USB
CIRCUIT
BREAKER
13A,120Vac
WB-UPS-1500-8 120V AC@60 Hz 16A NEMA 5-15r IEC C20
16A,120Vac
WB-UPS-2000-8 120V AC@60 Hz 20A NEMA 5-20r IEC C20
16A,120Vac
