WB-UPS-1100/1500/2000 Owner’s Manual
pg.7

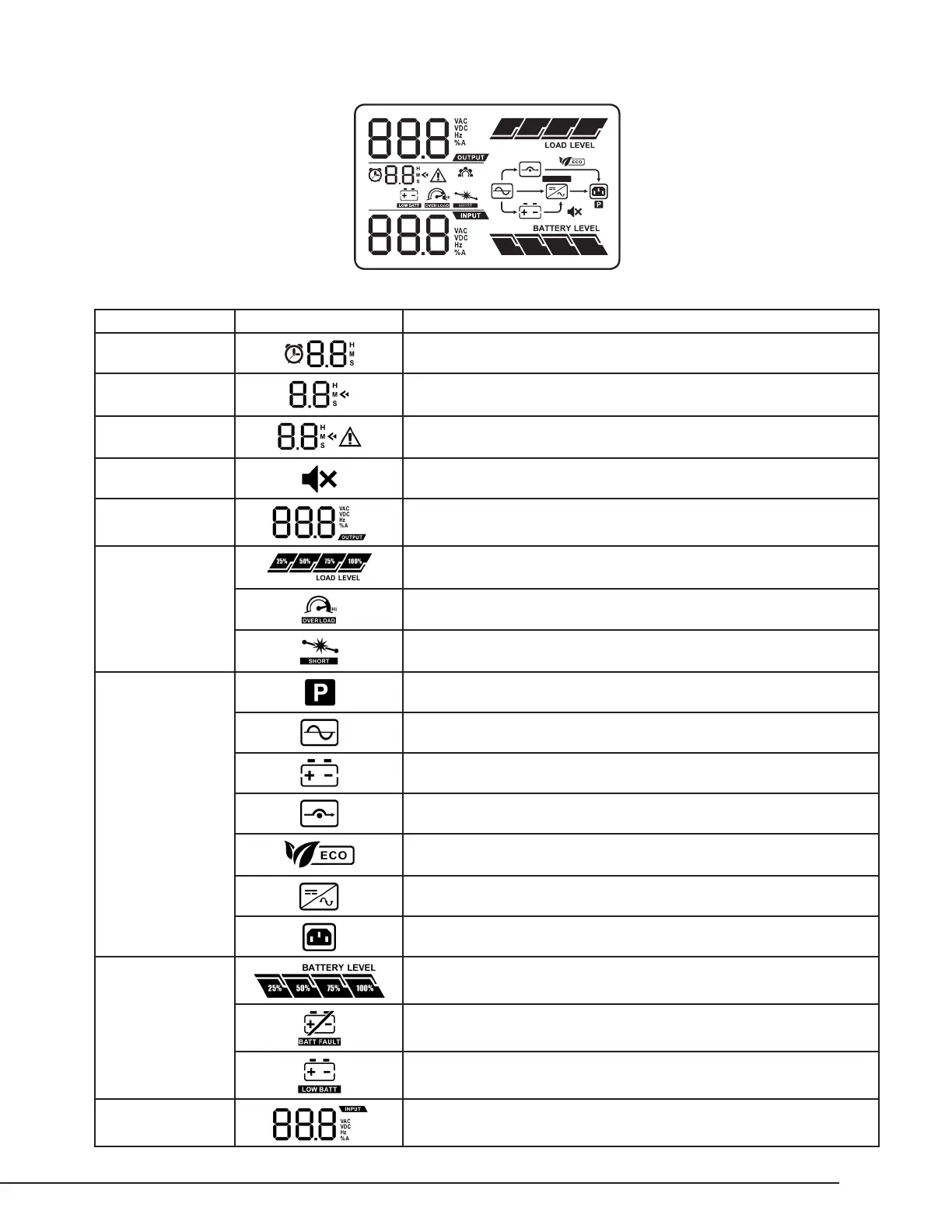

FRONT PANEL LCD OVERVIEW
SETTING
25% 50% 75% 100%
25% 50% 75% 100%
CON VE RTER
Function Display Description
Backup Time Indicates conguration items. See details in “Menu Options” below.
Conguration Info The exclamation indicates that a fault has occurred and the associated fault code
is displayed below it. See “Fault Codes” on page 10.
Fault/Warning Info Indicates warning and fault codes. See sections “Fault Codes” and “Audible
Alarms.”
Mute Indicates that UPS alarm is disabled.
Output Displays output voltage and frequency.
VAC=AC voltage; VDC=DC voltage; Hz=Frequency
Load Information Indicates the connected load level (equipment connected to outlets) in 25%
increments.
Indicates connected device overload.
Indicates a short circuit in the connected load.
Operating Status Indicates that the programmable outlets are operating.
Indicates that the UPS is connected to the main power input.
Indicates that the battery is working.
Indicates that bypass mode is working.
Indicates that the UPS is operating in ECO mode (no voltage correction; line
voltage suitable for output).
Indicates that the inverter circuit is working.
Indicates that the output is working.
Battery Status Displays the current battery level in 25% increments.
Indicates that the battery has a fault.
Indicates low battery capacity.
Input Information Displays input voltage, battery voltage, and frequency.
VAC=AC voltage; VDC=DC voltage; Hz=Frequency
