Benchmark Platinum-Edge [ii]: Installation Manual
SECTION 2 – INSTALLATION
OMM-136_E • GF-210 • 12/13/2019 Technical Support • (800) 526-0288 • Mon-Fri, 8 am - 5 pm EST Page 15 of 57
Section 6.6: Combination Control System of the Benchmark Platinum-Edge: OPERATION-
SERVICE Manual (GF-211).

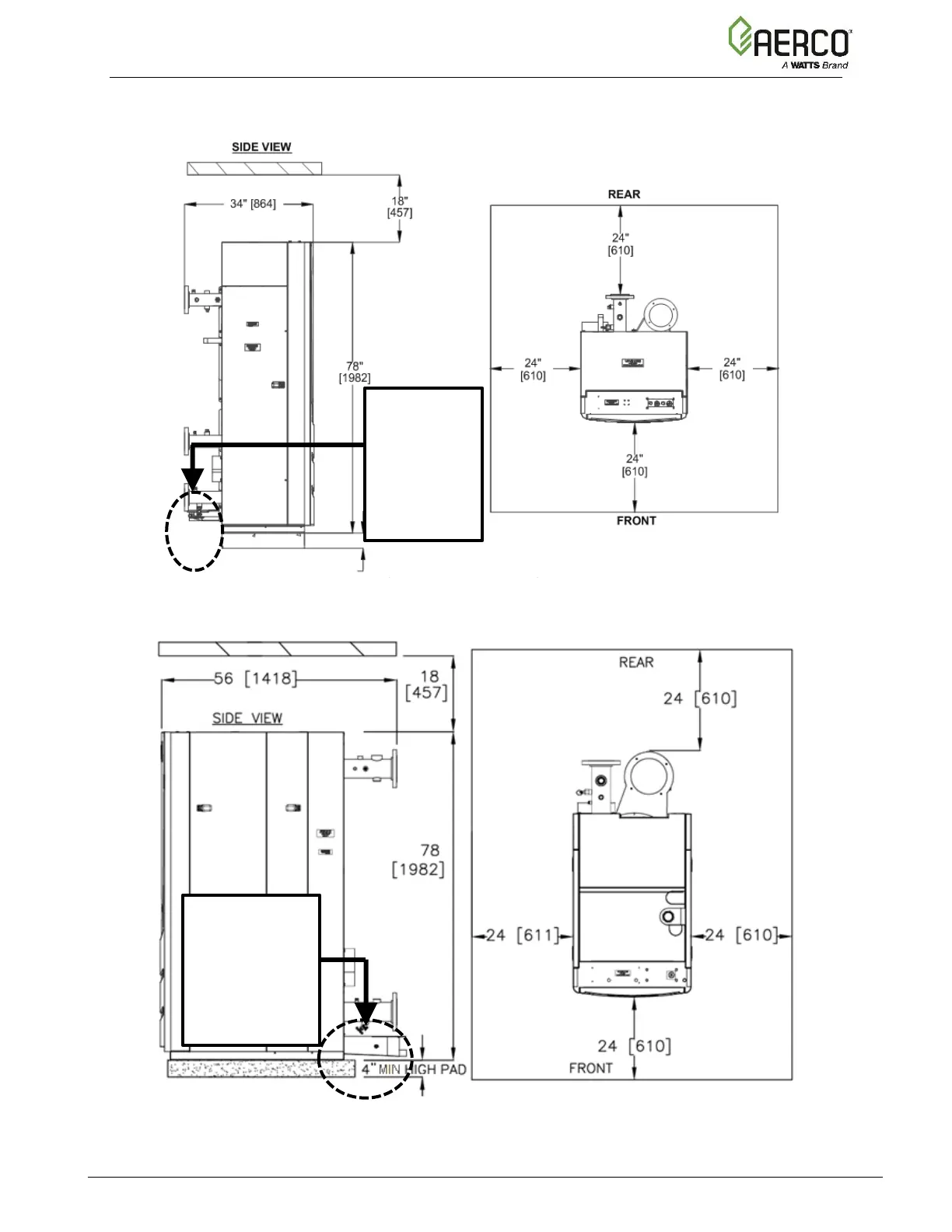

Figure 2-1a: BMK750/1000 Clearances
Figure 2-1b: BMK1500/2000 Clearances
NOTE:
Ensure that
condensate
assembly is not
located over the
housekeeping
pad.
NOTE:
Ensure that
condensate
assembly is
not located
over the
housekeeping
pad.
4” High Pad
