Benchmark Platinum-Edge [ii]: Installation Manual
SECTION 2 – INSTALLATION
OMM-136_E • GF-210 • 12/13/2019 Technical Support • (800) 526-0288 • Mon-Fri, 8 am - 5 pm EST Page 16 of 57

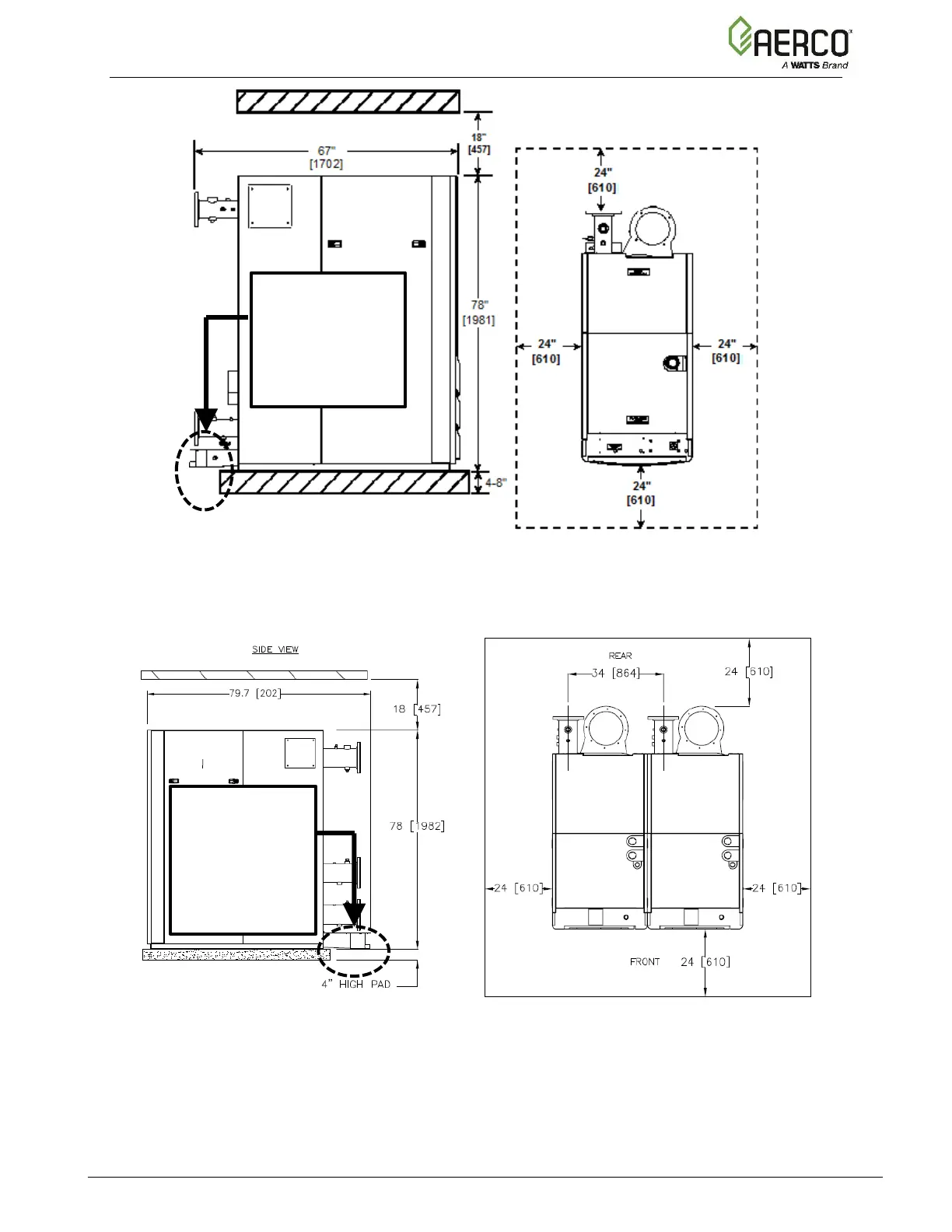

Figure 2-1c: BMK2500/3000 Clearances
Figure 2-1d: BMK4000 Clearances
Housekeeping Pad.
NOTE:
Ensure that
condensate
assembly is not
located over the
housekeeping pad.
Housekeeping Pad.
NOTE:
Ensure that
condensate
assembly is not
located over the
housekeeping
pad.
