Overview
The Camera Control Unit Paint System comprises of three main elements: The Remote
Control PAINT TX Indoor Unit (RCP-TX-IDU) the Camera Tally Interface and the
Transmitter Outdoor Unit (TX ODU). It is simple to configure, as per the diagram to
provide camera control for up to 4 cameras on a single UHF channel. The radio channel
is programmable from 403 to 474 MHz via the daylight readable display, using the
navigation buttons provided. The fourth component is the AXTX1 Broadcast Camera
Transmitter with Camera Paint Data Receiver.

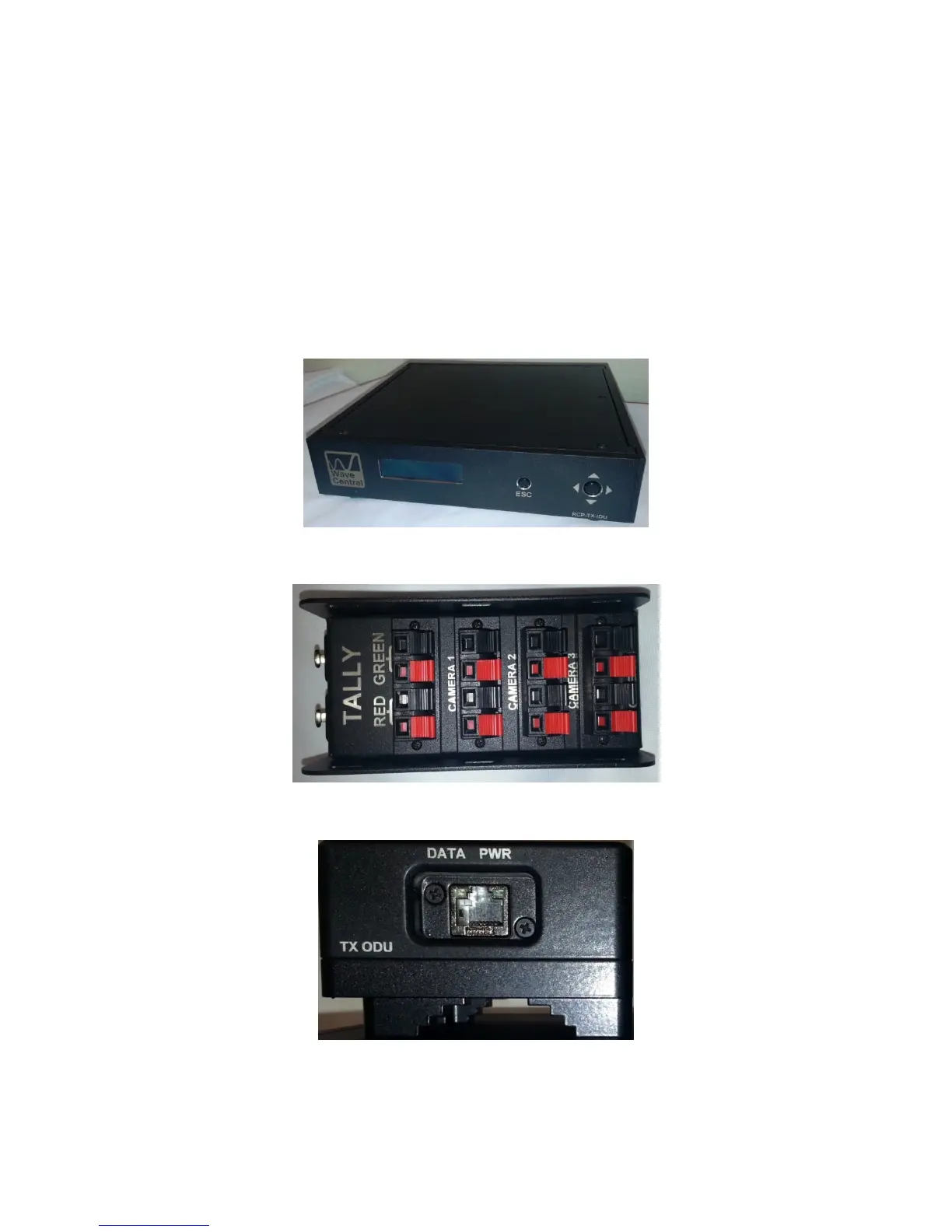

Figure 1. RCP-TX-IDU
Figure 2. Camera Tally Interface Unit
Figure 3. TX ODU
